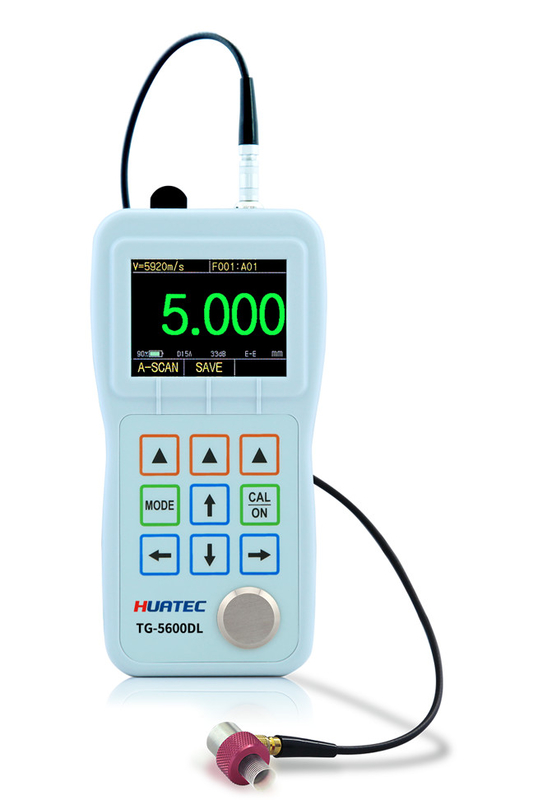

HUATEC TG-5600DL Portable Ultrasonic Thickness Gauge

HUATEC TG-5600DL Portable Ultrasonic Thickness Gauge
HUATEC TG-5600DL Portable Ultrasonic Thickness Gauge HUATEC TG-5600DL Portable Ultrasonic Thickness Gauge

Large Image :  HUATEC TG-5600DL Portable Ultrasonic Thickness Gauge

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO,ASTM
Model Number: TG-5600DL
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 1
Packaging Details: Paper box
Delivery Time: 5 DAY
Supply Ability: 500

HUATEC TG-5600DL Portable Ultrasonic Thickness Gauge

Description
Display Type: 2.4 In (320 × 240 Dot Matrix)TFT Color Display LCD Screen Measuring Unit: Mm, Inch、μm、mil
Update Rate: 4HZ, 8HZ, 16HZ Per Second Optional Gain: Low, Medium Or High For Varying Test Conditions
Rectification Mode: RF, RF-, FULL, HALF+, HALF Probe Frequency: 0.5MHz~20 MHz
Resolution: Optional 0.1/ 0.01/0.001mm View Mode: A-SCAN, B-SCAN, DIGITS, CAPTURE, DIFFERENCE, ALARM
Highlight:

portable ultrasonic thickness gauge

,

TG-5600DL portable ultrasonic thickness gauge

,

HUATEC portable ultrasonic thickness gauge

TG-5600DL Single and dual element color screen Ultrasonic Thickness Gauge


HUATEC TG-5600DL is a portable ultrasonic thickness gauge. Based on the operating principles of ultrasonic measurement, TG-5600DL is capable of measuring the thickness of various materials with accuracy as high as 0.001 millimeters or 0.0001 inches, and widely used in a variety of thickness measurement applications.
Users can measure the thickness from only one side of the material being measured, without damaging the workpiece.

TG-5600DL can display thickness readings and A-scans at the same time, allowing users to check waveforms. The echo display helps users control the measurement, so that the thickness measurement range is large, the measurement values are correct, and material-related errors in measurement can also be avoided. The B-scan function is used to observe the bottom profile of the workpiece being measured. The probe moves along the surface of the workpiece to display the cross-section of the workpiece.

This gauge can be used in manufacturing, metal processing industry, aerospace, railway transportation, chemical industry, commodity inspection industry and other testing fields.In addition to accurately measuring a variety of plates and processed parts, monitoring a variety of pipes and pressure vessels that in production equipments to further monitor their thinning levels after being corroded during use, which is an indispensable tool in the non-destructive testing industry.
The storage function is optional, according to the different needs of customers, and built-in large-capacity data logger can store up to 100,000 thickness measurement values and 400 waveforms. Other more functions can be optional, such as multi-layer thickness measurement, ultra-high resolution, large-range thickness measurement,digital noise reduction and window mode, inner wall oxide layer, real-time communication, multi-channel and other options.

Main Measurement Functions

• Most material measurements can be made using single element transducers.

• Measuring thickness range: 0.01 mm ~ 38 m, depending on the material being measured, probe, surface conditions, temperature and selected configuration.

• Determine the sound velocity of an unknown sound velocity material

• High resolution: Regular display resolution is 0.001mm, optional ultra-high resolution can reach 0.0001mm.

• Measurement units: millimeters, inches, microns and mils.

• High temperature measurement: temperatures up to 500°C.

• System default configuration menu: For user convenience, it has been set according to the default conditions for using the probe of the instrument.

• Pause function: allows post-measurement processing operations. Conveniently adjust all parameters to obtain stable measurement data.

• Full-screen waveform display function: increases the echo display area by 20%, giving the operator a large window experience.

• Echo intensity indication: The stronger the echo, the more indicator bars are displayed, especially the digit display, which is more useful.

• Time-based B-scan mode: It is used to observe the bottom profile of the workpiece to be measured.

• Difference/Reduction Rate Mode:The thickness difference relative to the set point is displayed and expressed as a percentage of the reduction rate.

• TDG time-varying gain: The initial pulse or interface echo can be effectively reduced by reducing the initial gain, and the bottom echo of the tested sample can be increased by increasing the maximum gain, which is easy to measure.

• Measurement Mode:Pulse-Echo(P-E),Interface-Echo(I-E),Echo-Echo(E-E),Multiple echo(I-ME),Double echo verification(E-EV)


Standard Configuration

Items Quantity

TG-5600DL
Ultrasonic Thickness Gauge

1
Probe 1
Cable 1

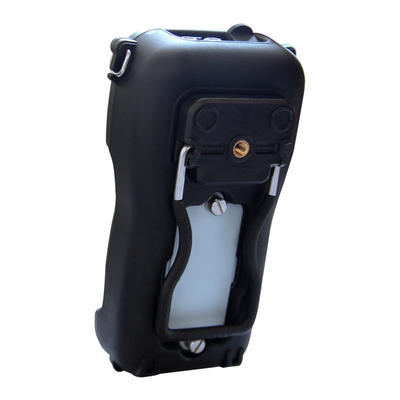

Rubber Sheath 1
Alkaline Batteries -
Couplant Bottle 1
Case 1
Operation Manual 1














Optional accessories

Probes Cables
Rubber Sheath Step Blocks
Delay Lines Coupling Agent
Protective film Software Options


Appendix A: Material Velocity
The table lists the propagation velocity of ultrasond in various common materials. It is only for reference. The actual velocity of these materials may differ from the velocity in the table for various reasons, for example, material composition, preferred orientation of grains, porosity, and temperature etc. Therefore, to achieve the best measurement accuracy, a sample made of a specific material should first be tested to confirm the velocity of specific material.

Table:Material Velocity List

Material Velocity(m/s)
Steel 20# 5891
Aluminum 6320
Chromium 6200
Copper 4660
Gold 3251
Iron 5930
Lead 2160
Magnesium 5806
Silver 3607
Titanium 6098
Zinc 4193
Tungsten 5181
Tin 3320
Brass 4380
Grey Cast Iron 4600
Glass 5766
Nylon 2610
Stainless Steel 304 5334
PVC 2392
Silicon 9620
Quartz Glass 5655



















Note:Above table is for reference only. For actual velocity calibration, refer to 6.2 velocity calibration
