Product Details:
|
Product Name: | Vibration Calibrator | Frequency: | 10, 20, 40, 80, 160, 320, 640, 1280Hz +0.01% |
---|---|---|---|
Acceleration: | M/s2 (PEAK) | Prode: | 5mm And 8mm Probes Range: 0~4.0mm |
Highlight: | Digital Vibration Calibrator,Vibration Analyzer Vibration Calibrator,Fixed Frequency Vibration Calibrator |
Digital Vibration Calibrator Vibration Analyzer Vibration Tester Fixed Frequency
Application for ISO10816 HG-5010 Vibration Calibrator:
1.Can be used to calibrate vibration accelerometer, velocity and proximity transducer and also a vibration measuring instruments. Standard sine signals at frequency 10, 20, 40, 80, 160, 320, 640 and 1280 Hz
2.Can be generated from the calibrator the amplitude of the acceleration, velocity and displacement
3.Can be defined through potentiometers and shown on digital displays. Either horizontal or vertical vibration can be generated.

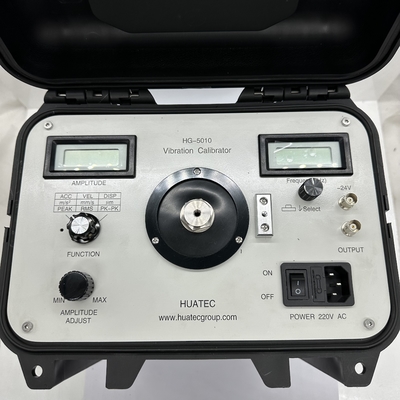

4.HG-5010 vibration calibrator combines sine signal generator, power amplifier, standard transducer and a shaker in one and features a small volume, high accuracy and easy operation. It can be used either in laboratory or on site.
5. International standards: ISO10816
Specifications:
Frequency | 10, 20, 40, 80, 160, 320, 640, 1280Hz +0.01% |
Acceleration | m/s2 (PEAK) |
Velocity | mm/s (RMS) |
Displacement | um(PK-PK) |
Amplitude accuracy:
Acceleration (30m/s2 pk, 80Hz) 40Hz to 320Hz + 0.3dB + 1digit
10Hz to 1280Hz + 0.5dB +1digit
Velocity ( 25mm/sec pk ,80Hz) 40Hz to 320Hz +0.5dB +1digit
Displacement (10μm pk-pk, 80Hz) 40Hz to 320Hz + 0.5dB + 1digit

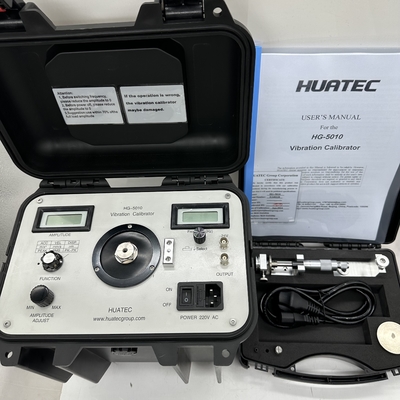

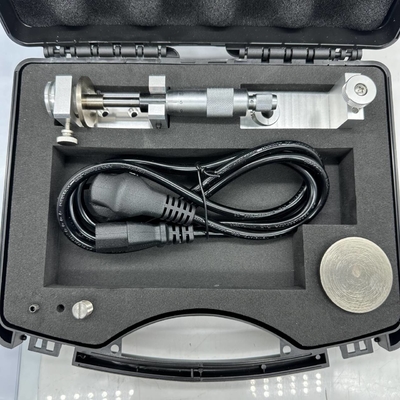

Proximity probe linearity
Prode: 5mm and 8mm probes Range: 0~4.0mm
Display: 3 1/2 digit display for acceleration, velocity or displacement
Maximum vibration amplitude and maximum load:
Because of the vibrostand used in HG-5010 Vibration Calibrator is rather small, during the calibration of transducers of different weight under different frequencies the output amplitude of the calibrators are also different. Maximum vibration amplitude and maximum load are related to the maximum acceleration. Maximum velocity and maximum displacement output generated from the calibrator under a certain frequency and with a certain weight of the transducer to be calibrated. The specific figures can be seen in the following table.
Wt
Freq |
<100g | <250g | <650g | ||||||
a(m/S2) | v(mm/S) | d(μm) | a(m/S2) | v(mm/S) | d(μm) | a(m/S2) | v(mm/S) | d(μm) | |
10Hz | 2.5 | 28 | 1300 | 3.5 | 40 | 1800 | 4 | 45 | 2000 |
20Hz | 15 | 85 | 1900 | 10 | 60 | 1300 | 5 | 28 | 640 |
40Hz | 60 | 170 | 2000 | 35 | 100 | 1100 | 12 | 35 | 380 |
80Hz | 100 | 141 | 800 | 40 | 60 | 320 | 14 | 20 | 110 |
160Hz | 75 | 53 | 150 | 35 | 25 | 70 | 12 | 8.5 | 24 |
320Hz | 50 | 18 | 25 | 30 | 10 | 15 | 10 | 3.5 | 5 |
640Hz | 30 | 5 | 3 | 20 | 3.5 | 2 | 6 | 1 | * |
1280Hz | 23 | 2 | * | 10 | 0.9 | * | 5 | 0.4 | * |
Note: With higher frequency the value of the displacement of vibration is very small so there will be no vibration signal output from the calibrator.
Size: 280 x 180 x 250(mm)
Weight: 20lb,9kgs
Temperature: Operation: 0oC to 50 oC
Storage: -20 oC to 70 oC
Humidity: 90% non -condensing
