HRDmini-2 Electronic X & Γ Rays Radiation Personal Dose Dosimeter

Large Image : HRDmini-2 Electronic X & Γ Rays Radiation Personal Dose Dosimeter

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	HRDmini-2

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	USD287-USD325/SET
Packaging Details:	Wooden box packaging
Delivery Time:	7-10 working days after receipt of your payment
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	10 Sets/Month

Contact Now

HRDmini-2 Electronic X & Γ Rays Radiation Personal Dose Dosimeter

Description

Measurem-ent Range:	Hp(10): 0.0Sv10Sv H’p(10): 1Sv/h500mSv/h	LCD Display:	Hp(10): 0.0Sv9999mSv H’p(10): 0.05Sv/h999.9mSv/h
Energy Response:	<±30%（50keV1.5MeV）	Response Linearity:	<±20% (1Sv/h1Sv/h)
Relative To The Inherent Error:	<±10% (1.2mSv/h，Cs-137)	Overload Characteristics:	>10Sv/h
Highlight:	γ Rays Radiation Personal Dose Dosimeter , Electronic Radiation Personal Dose Dosimeter

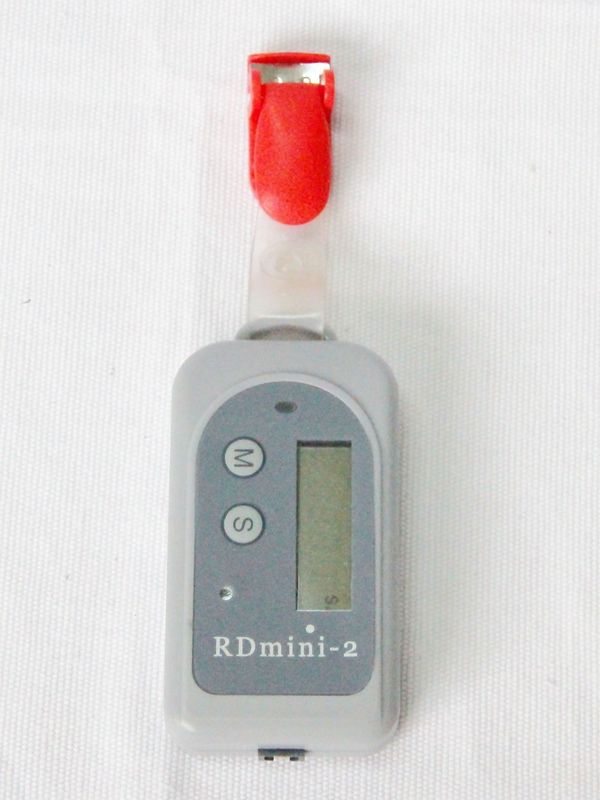

HRDmini-2 Electronic X & γ Rays Radiation Personal Dose Dosimeter

Function

The dosimeter is used to monitor the personal dose equivalent (DE) and dose equivalent rate (DER) for X & γ rays radiation. It can give out acoustic and optical alarm signals when the dose of DE or DER scales out the alarm threshold. The product adopts low power consumption single-chip microcomputer, which realizes the functions of real time display of the measured value, acoustic and optical alarm signals of the super threshold, EEPROM data storage, alarm threshold setting, detector fault alarm and battery undervoltage detection.

Main Specifications

		Detector	silicon semiconductor detector
	Measurem-ent range		Hp(10): 0.0mSv~10Sv H’p(10): 1mSv/h~500mSv/h
	Alarm threshold		Hp(10): 1mSv~10Sv, can be set continuously H’p(10): 1mSv/h~500mSv/h, can be set continuously
	alarm		Gives audile, visual and LCD indicating alarm for over-threshold, battery- lower , over time, detector failure and DE increment tips. Sound intensity > 80dB at 30cm.
	LCD Display		Hp(10): 0.0mSv~9999mSv H’p(10): 0.05mSv/h~999.9mSv/h
	energy Response		<±30%(50keV~1.5MeV)
	Angle response		To Am-241(60keV),< ±50%(0°～75°) To Cs-137(662keV),< ±20%(0°～75°)
	Response linearity		<±20% (1mSv/h~1Sv/h)
	Relative to the inherent error		<±10% (1.2mSv/h,Cs-137)
	Overload characteristics		>10Sv/h
	Power source		Rechargeable lithium battery 3.6V. One full charge may work 200 hours.
	Low battery indication		More than 8 hours can last when under-voltage alarm
	Temperature effect		<±15%, ( -10℃~+40℃)
Humidity effect			<±10%, RH 40%~90% ,35℃
Weight			About 40g
Dimensions			52㎜×40㎜×14㎜
Data storage and reset			measured data can be stored when power off, the data can be reset when starting up.

Supplied Accessories

(1) manual & software CD 1

(2) warranty card copy 1

(3) certificate 1

(4) charger 1

HRDmini-2 Electronic X & Γ Rays Radiation Personal Dose Dosimeter 3
