LX1500 Digital High Precision UV Ultraviolet Visible Illuminance Lux Light Meter

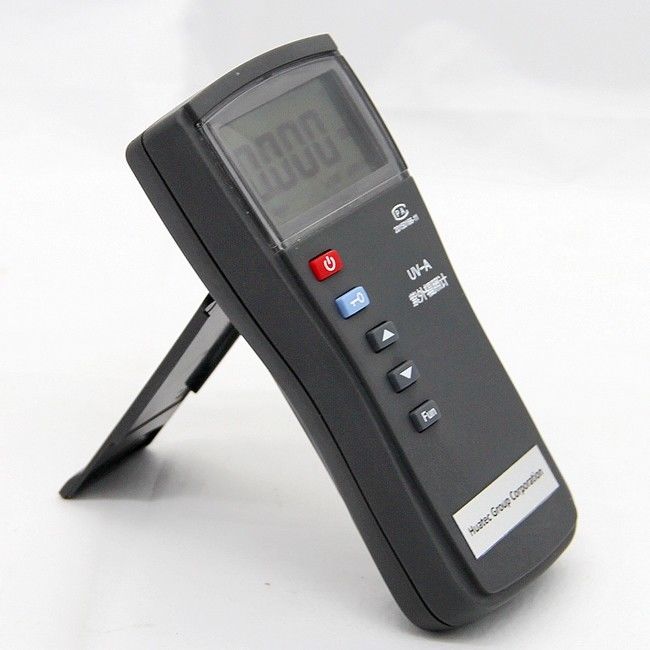

Large Image : LX1500 Digital High Precision UV Ultraviolet Visible Illuminance Lux Light Meter

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	LX1500

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	USD915-USD1035/SET
Packaging Details:	Blue ABS box+Outer carton packaging
Delivery Time:	3-5 working days after receipt of your payment
Payment Terms:	T/T,Paypal
Supply Ability:	10 Sets/Month

Contact Now

LX1500 Digital High Precision UV Ultraviolet Visible Illuminance Lux Light Meter

Description

Illumination Measurement Range:	(0.1 ~ 199.9×103) Lx	Relative Indication Error:	<± 4.0%
V (lambda) Matching Error:	Less Than 6.0%	Cosine Characteristic Error:	< 4.0%
Response Time:	<1 Second
Highlight:	Non Destructive Testing Lux Light Meter , Digital High Precision Lux Light Meter , UV Ultraviolet Visible Lux Light Meter

LX1500 Digital High Precision UV Ultraviolet Visible Illuminance Lux Light Meter

Product overview

Ultraviolet/visible (radial) illuminance meter adopts SMT patch technology, adopts and low power consumption digital chip, the instrument shell is streamlined design, the detector after strict spectrum and Angle characteristics correction, stable performance, strong applicability. The instrument integrates two functions of ultraviolet irradiance measurement and illumination measurement, and is widely used in various fields such as photochemistry, polymer material aging, flaw detection, ultraviolet light source, plant cultivation, large-scale integrated circuit industry, agriculture, architecture, environment and scientific research.

Specifications

Illumination measurement range	(0.1 ~ 199.9×103) lx
Relative indication error	<± 4.0%
V (lambda) matching error	less than 6.0%
Cosine characteristic error	< 4.0%
Response time	<1 second
Ultraviolet wavelength range and peak wavelength	lambda P (315 ~ 400) nm, lambda P = 365nm
The irradiance measurement range	muw /cm2 (0.1 ~ 199.9×103)
Long wave response error	<15%
Relative indication error	<± 8% (relative to NIM standard)
Nonlinear error	<± 1.5%
Response time	<1 second
Zero value error	(full range FS) < ±1.0% of full range
Shift error	<±1.0%
Fatigue error	<3.0%
Ambient temperature	(0~40)℃; Humidity < 85% RH
Size and weight	160mm×78mm×43mm; 0.2 kg
Power supply	6F22 9V laminated battery (non-rechargeable battery)
Overall power consumption	< 0.1va

Product features

Spectral and angular characteristics are strictly corrected

Digital liquid crystal display with backlight

Manual/automatic range switching

Digital output interface (USB, redundant power supply)

Low battery alert

Automatic delay shutdown

Number holding

Tap the button to operate, beeping prompt

LX1500 Digital High Precision UV Ultraviolet Visible Illuminance Lux Light Meter 0
