Professional HGS-106 Handheld Digital DC Magnetic Induction Intensity Gauss Meter With Measuring Range 0-300mT-3000mT

Large Image : Professional HGS-106 Handheld Digital DC Magnetic Induction Intensity Gauss Meter With Measuring Range 0-300mT-3000mT

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	HGS-106

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	USD287/set - USD325/set
Packaging Details:	Carton packing box
Delivery Time:	7-10 working days after receipt of your payment
Payment Terms:	T/T,Paypal
Supply Ability:	10sets/Month

Contact Now

Professional HGS-106 Handheld Digital DC Magnetic Induction Intensity Gauss Meter With Measuring Range 0-300mT-3000mT

Description

Measuring Range:

0~300mT~ 3000mt

Frequency Range:

10Hz~200Hz

Accuracy:

0~100mT 1%, 2% Above 100mT (measured In Uniform Magnetic Field)

Resolution:

DC×1:0.00 ~ 300.00mT. 0.01mT DC× 10:0.0 ~ 3000.0mt 0.1mt

Highlight:

300mT Gauss Meter

Professional Gauss Meter

3000mT Gauss Meter

HGS-106 Handheld Digital DC Magnetic Induction Intensity Gauss Meter

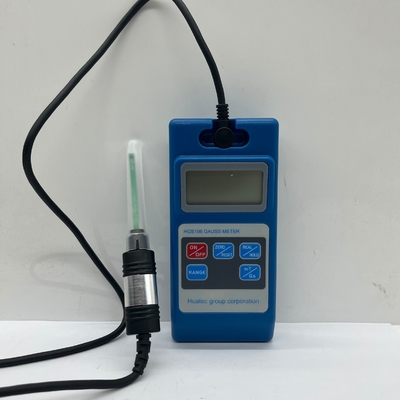

HGS-106 is a handheld digital gauss meter controlled by single chip microcomputer, which can be used to measure the magnetic induction intensity of dc magnetic field, radiation magnetic field and other magnetic fields. The instrument can be carried around, with a wide range, easy operation and clear LCD display. It has many functions, such as measuring/peak maintaining, MT/GS unit conversion, automatic zero adjustment by push button, 300MT/3000MT range conversion, etc.

Main technical indicators

Measuring range	0~300mT~ 3000mt
Frequency range	10Hz~200Hz
Accuracy	0~100mT 1%, 2% above 100mT (measured in uniform magnetic field)
Resolution	DC×1:0.00 ~ 300.00mT. 0.01mT DC× 10:0.0 ~ 3000.0mt 0.1mt
Measured magnetic field	dc magnetic field (static magnetic field)
Function description	peak maintenance function Gs (gauss) /mT (millitesla) can be switched freely
N/S polarity display during dc measurement. N for positive and S for negative
Display button fast automatic zero
Ambient temperature	5℃~40℃
Relative humidity	20%~80% (no condensation)
Power supply	four no.5 batteries are externally connected with voltage stabilizing power
External size	150mm (L) ×70mm (W) ×30mm (H)
Instrument weight	450g
Display mode	4 1/2 LCD
Display unit	mT/Gs

Professional HGS-106 Handheld Digital DC Magnetic Induction Intensity Gauss Meter With Measuring Range 0-300mT-3000mT 0
