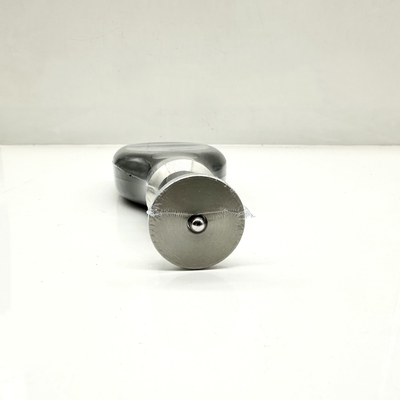

High Accuracy HT-6520E EVA Hard Sponge Foam Durometer With Parameters Tested Result/Mean Value/Max.Value

Large Image : High Accuracy HT-6520E EVA Hard Sponge Foam Durometer With Parameters Tested Result/Mean Value/Max.Value

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	HT-6520E

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	USD230/set - USD260/set
Packaging Details:	Carton packing box
Delivery Time:	7-10 working days after receipt of your payment
Payment Terms:	T/T,Paypal
Supply Ability:	10sets/Month

Contact Now

High Accuracy HT-6520E EVA Hard Sponge Foam Durometer With Parameters Tested Result/Mean Value/Max.Value

Description

Parameters:

Tested Result/Mean Value/Max.Value

Accuracy:

≤±1H

Resolution:

0.1H

Operating:

Temperature:0~50℃ Humidity:<80%RH

Highlight:

EVA Hard Sponge Foam Durometer

EVA Sponge Foam Hardness Tester Durometer

Hard Sponge Foam Hardness Tester Durometer

HT-6520E EVA Hard Sponge Foam Durometer

Application

Used to determine the indentation hardness of materials ranging from cellular products to rigid plastics.

Features

* It meets standards of DIN 53505, ISO 868, ISO 7619, ASTMD 2240, JISK7215.
* With average calculate function.
* Peak value deposit function.
* Under-voltage alarm function.
* Use USB data output to connect with PC.
* Provide Blue tooth data output choice.

Specification

Model	HT-6520E
Parameters	Tested Result/Mean Value/Max.Value
Unit	HE/
Display Range	0~100HE
Measurement Range	10~90HE
Accuracy	≤±1H
Resolution	0.1H
Battery Indicator	Low Battery Indicator
Auto Switch Off	√
Operating	Temperature:0~50℃ Humidity:<80%RH
Power Supply	4x1.5V AAA(UM-4)Battery
Power Supply	2x1.5V AAA(UM-4)Battery(Stand Available)
Dimensions	162x65x28 mm
Weight	170g
Standard Accessories	Main Unit
	Pin Length Teat Block
	Carrying Case(B04)
	Operation Manual
Optional Accessories	Shore Hardness Tester Measurement Stand
	Rubber Hardness Test Block(A/D Type)
	USB Data Cable with Software
	Blue tooth Data Adapter with Software

Models & Applications

Model	Indenter	Tested Materials	Hardness Value
A	0.79 Truncated Cone	Soft Rubber, Elastomers, Natural Rubber Products, Neoprene, Resin, Polyester, Soft PVC,Lleather, etc.	20 ~ 90 A
B	R 0.1 Cone	Middle Hard Rubber Materials, Typewriter Rollers, etc.	Above 90 A, Below 20 D
C	0.79 Truncated (Frustum) Cone	Plastics and Middle Hard Rubber Materials	Above 90 B, Below 20 D
D	R 0.1 Cone	Fibre Plastics, Hard Rubber, Hard Plastic Materials, Plexiglas,Stiff Thermo Plastics, Formica, Print Roller, Vinyl-plate, Cellulose Acetate, etc.	Above 90 A
DO	R 1.2 Spherical Radius	Plastics and Middle Hard up to Hard Rubber Materials	Above 90 C, Below 20 D
O	R 1.2 Spherical Radius	Soft Elastic Materials, Print Rollers, Middle Firm Textile Fabrics, Nylon, Orlon, Perlon, Rayon	Below 20 DO
OO	R 1.2 Spherical Radius	Sponge- and Cellular Rubber, Foam Rubber, Silicone, Gel-like Materials	Below 20 O
E	R 2.5 Spherical Radius	Hard Sponge, EVA	Above 90 DO, Below 20 D

High Accuracy HT-6520E EVA Hard Sponge Foam Durometer With Parameters Tested Result/Mean Value/Max.Value 0
