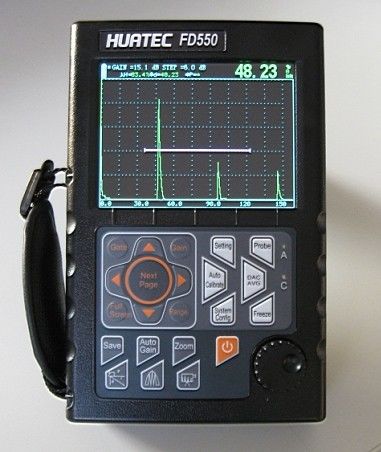

FD550 A Scan B Scan High Resolution Digtal Ultrasonic Flaw Detector

FD550 A scan B Scan High Resolution Digtal Ultrasonic Flaw Detector

Main faetures:

Automated calibration,Automated gain, 0-130dB gain

DAC,AVG,TCG,B scan,AWS,6dBDAC

High-speed capture and very low noise

Solid metal housing,water / oil proof,dust proof

High contrast viewing of the waveform from bright

Powerful pc software and reports can be export to excel

Automated display precise flaw location(Depth d,level p,distance s,amplitude,sz dB,ф)；

Automated switch three staff gauge ((Depth d,level p,distance s)；

Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity ；

Convenient to make and use DACTCG and AVG to evaluate the echo, the curve can be modified and compensated

6dB DAC functions;

500 independence setup, any criterion can be input freely, we can work in the scene without test block；

Big memory of 1000 A graph

Automated gain and gain scan;

Peak Hold and Peak Memory；

B scan;

AWS D1.1

Automated make video of test process and play; use upan,the length of video is unlimited.

Powerful pc software and reports can be export to excel;

Li battery, continue working time up to 12 hours;

The embeded software can be online updated；

• Other assistant function

  • Display freeze;
  • Automated echo degree;
  • Angles and K-value;
  • Lock and unlock function of system parameters;
  • Electronic clock calendar ;
  • Two gates setting and alarm indication;
  • Gate and DAC alarm;
  •

• Specifications

  Title	Parameter	Title	Parameter
  Measuring Range(mm)	0 ～ 10000	Measurement Mode	Single,Dual,Thru
  Vertical Linearity Error	≤3%	Reject	0~80%
  Horizontal Linearity Error	≤0.1%	Pulse Displacement(μs)	-20 ～ +3400
  Sensitivity Leavings	≥62dB	Zero(μs)	0.0 ～ 99.99
  Dynamic range	≥32dB	Port Type	BNC(Q9)
  Resolving Power	≥36dB	Operating Temperature (℃)	-20～50
  Frequency Range(MHz)	0.5 ～ 20	H×W×D(mm)	240×156×48
  Gain(dB)	0 ～ 130	Weight(kg)	1.0(with battery)
  Material Velocity(m/s)	1000 ～ 15000



• Standard Delivery:

  Main unit

  2.5MHZ-ф20 straight probe

  4MHZ-8x9mm, 60degree angle probe

  4A/9Vpower adapter

  Probe connection cable (BNC to BNC)

  Probe connection cable (BNC to Lemo 00)

  Instruction manual

  Carrying case

  RS232-USB converter



  Additional Accessories:

  Data managing software

  Data managing cables RS232

  Straight probe (5MHZ-ф20)

  Straight probe (2.5MHZ-ф20)

  Straight probe (2.25MHZ-ф20)

  Straight probe (1MHZ-ф20)

  Angle probe (4MHZ-45degree, 8*9mm)

  Angle probe (4MHZ-60degree, 8*9mm)

  Angle probe (4MHZ-70degree, 8*9mm)

  Angle probe (4MHZ-80degree, 8*9mm)

  Angle probe (2MHZ-45degree, 8*9mm)

  Angle probe (2MHZ-60degree, 8*9mm)

  Angle probe (2MHZ-70degree, 8*9mm)

  Angle probe (2MHZ-80degree, 8*9mm)

  Probe T/R (5MHz-ф20mm, focus 15mm)

  Probe T/R (2.5MHz-ф20mm, focus 15mm)

  Connection cable to probe (BNC-BNC)

  Connection cable to probe (BNC-Lemo 00)

  Connection cable to probe (BNC-Lemo 01)

  Connection cable to probe (Lemo 00-Lemo 01)

  Lithium ion battery

  Power adapter (4A/9V)

  Power Cable

  Leather case

•
