Digital Vibration Calibrator Tester Vibration Tester Calibration Vibration Calibrate HG5026

Large Image : Digital Vibration Calibrator Tester Vibration Tester Calibration Vibration Calibrate HG5026

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Model Number:	HG5026

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	In carton
Payment Terms:	Western Union, T/T, Paypal

Contact Now

Digital Vibration Calibrator Tester Vibration Tester Calibration Vibration Calibrate HG5026

Description

Name:

Vibration Calibrator

Frequency:

From 1 To 1280 Hz

Probe:

5mm And 8mm Probes

Warranty:

12 Months

Highlight:

Vibration Calibrator Tester

Vibration Calibrator Tester Digital

Digital Vibration Calibrator Tester

Digital Vibration Calibrator Tester Vibration Tester Calibration Vibration Calibrate HG5026

HG-5026 vibration calibrator can be used to calibrate vibration accelerometer, velocity and proximity transducer and also a vibration measuring instrument. Standard sine signal vibration at any frequency from 1 to 1280 Hz can be defined in the calibrator. The amplitude of the acceleration, velocity and displacement, can be defined through potentiometers and shown on digital displays. Either horizontal or vertical vibration can be generated. HG-5026 combines sine signal generator, power amplifier, standard transducer, vibration meter and a shaker in one and features a small volume, high accuracy and easy operation. It can be used either in laboratory or on site.

Wt Freq	<100g			<250g			<500g
Wt Freq	a(m/S²)	v(mm/S)	d(μm)	a(m/S²)	v(mm/S)	d(μm)	a(m/S²)	v(mm/S)	d(μm)
10Hz	2.5	28	1300	3.5	40	1800	4	45	2000
20Hz	15	85	1900	10	60	1300	5	28	640
40Hz	60	170	2000	35	100	1100	12	35	380
80Hz	100	141	800	40	60	320	14	20	110
160Hz	75	53	150	35	25	70	12	8.5	24
320Hz	50	18	25	30	10	15	10	3.5	5
640Hz	30	5	3	20	3.5	2	6	1	*
1280Hz	23	2	*	10	0.9	*	5	0.4	*

Frequency range & accuracy: 1 to 1280 Hz +0.01%

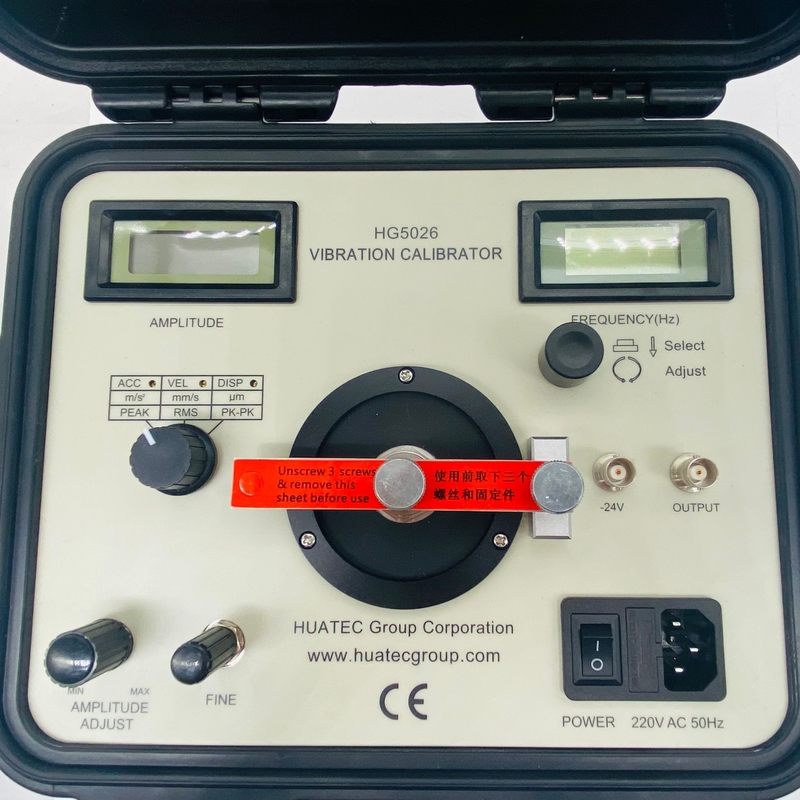

Digital Vibration Calibrator Tester Vibration Tester Calibration Vibration Calibrate HG5026 0

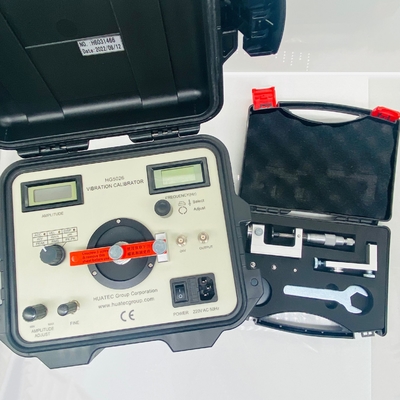

Digital Vibration Calibrator Tester Vibration Tester Calibration Vibration Calibrate HG5026 1

Tag:

Contact Person: Ms. Shifen Yuan

Tel: 8610 82921131,8613910983110

Fax: 86-10-82916893

Other Products

Vibration Meter Classify Vibration Measurements Into Red Yellow Blue Green

Product name: Vibration Meter

Vibration acceleration: below 199.9m/s2 (peak)

Temperature measurement range: -20～400℃

Display: 3 LED Display

4 Or 2 Channels Vibration Analyzer 1600 3200 6400 12800 Lines FFT Spectrum

Product name: Vibration Analyzer

display: 5-inch color display

Storage space: 16GB hard drive

spectrum: 1600、3200、6400 or 12800 lines FFT spectrum

Digital Vibration Calibrator Vibration Analyzer Vibration Tester Fixed Frequency

Product name: Vibration Calibrator

Frequency: 10, 20, 40, 80, 160, 320, 640, 1280Hz +0.01%

Acceleration: m/s2 (PEAK)

Prode: 5mm and 8mm probes Range: 0~4.0mm

Vibration Detector Multiple Functions USB Data Communication Equipped With Dedicated Computer Analysis Software

Product name: Vibration Detector

Acceleration: 0.1—199.9m/s2

Dimension: 180 x 50 x 25 (mm)

Working temperature: 0 ℃~50 ℃

Digital Vibration Calibrator Vibration Analyzer Vibration Tester At Frequency 10 20 40 80 160 320 640 And 1280 Hz

Product name: Vibration Calibrator

Model: HG5010

frequency: 10, 20, 40, 80, 160, 320, 640 and 1280 Hz

Acceleration: m/s2 (PEAK)
