HRD-X127D(A) Steel Wire Rope Conveyor Belt Portable X Ray Detection Device

HRD-X127D(A) Steel Wire Rope Conveyor Belt Portable X-ray Detection Device

I.Overview

HRD-X127D(A) Steel wire rope conveyor belt portable X-ray detection device (referred to as portable X-ray detector) is a new generation of X-ray detection equipment developed and produced by our company, which uses 3042B stainless steel material and 105*100mm flat plate image intensification device and built-in high pressure generation device. Due to the fast response and high sensitivity of the flat plate image intensifier, the radiation dose is very low, which at the same time ensures the safety of the operator.

This machine has the following features:

1. Direct real-time observation without dark room and protection.

2. High gain, high sensitivity, high spatial resolution, easy operation.

3. The lowest radiation dose, safe and reliable, simple structure, small size, light weight, portable use.

4. The protective device of the equipment is used for a long time and automatically closes to protect the service life of the equipment.

5. It can detect the flaw in the belt work, and the machine has a built-in 16G memory card to directly collect the video of the damage. Can be connected to play video system according to user requirements. It can be connected with industrial computers and laptops to view, read and save test results within 0.5m/s, identify damage conditions, and achieve clear analysis of image damage.

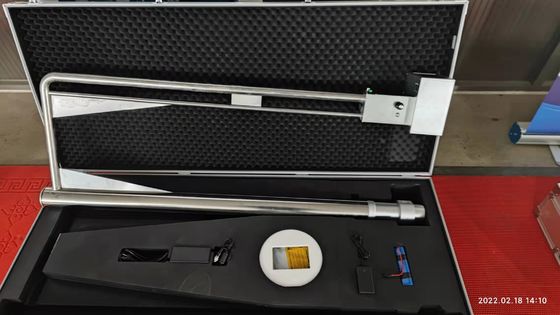

6. The protective box of the equipment plays the role of protecting the flaw detection device. When the equipment is tested, it is directly put into the protective box to prevent fall and impact damage.

II. Performance

The main technical indicators of the machine are as follows:

III. Scope of application

This product is suitable for all factories and mining enterprises to detect the use of steel wire rope conveyor belt, the maximum width of the steel wire rope conveyor belt can be used for detection up to 2400mm, in addition, this product is an essential tool for surgery in various hospitals, especially orthopedic surgeons, outpatient, emergency, home visits, rounds and repeated X-ray inspection at the operation site. It is also widely used in light metal research, experiments, science and education, and scientific instruments.

IV. Operation methods

1. Insert the protective lead plate into the front end of the image intensifier square box and tighten the top wire to prevent falling.

2. The machine adopts AC and DC dual power supply mode, and directly insert the plug into the socket when using AC; Before DC use, please charge the two batteries separately with the charger. When using, put the battery into the battery slot. At this time, the green button indicator on the host should be on. If there is an anomaly, the battery is usually out of power, please enter the charging procedure.

3. Press the switch button, the LCD screen light, you can observe in real time. If you find any abnormal conditions, contact the manufacturer or seller immediately. The button of the machine is self-locking, pressing it can work, do not need to press long;

4. When using, try to make the parts to be tested as close as possible to the like intensifier and away from the ball and tube parts, so that the image can be clearer.

5. The darker the ambient light, the better the effect;

V. Precautions

1. Before the equipment begins to use, pay special attention to not holding down the button switch on the host when inserting the battery or turning on the power, otherwise it will cause serious damage to the instrument.

2. When the equipment is not in use, it must be placed in the protective box, and if it is not used for the time being, it must be placed across the table to avoid damage. Usually when the protective box is stored, avoid falling, so as not to damage the instrument;

3. The machine should be cleaned and maintained regularly. Alcohol can be used to dry and scrub, scrub carefully not to make water droplets to prevent water infiltration into the machine;

4. usually be careful not to let such as water, alcohol, etc. into the button, socket or battery plug, in case of circuit failure, thus affecting the use of.

5. If oil stains are found in the protective box during use, it may indicate that the ray tube has leaked oil (this rarely happens), you should stop using it immediately and contact the manufacturer or seller immediately;

6. The structure of the machine is relatively close, and involves high pressure, so users are not allowed to disassemble themselves, such as the user finds that the display is not bright, the indicator light is not bright, the display is dark, etc. Please stop using immediately and contact the manufacturer in time to avoid the expansion of the fault.

7. Special note: If the image is found to have a crescent defect in use, it is generally indicated that the ray part has been offset, which may lead to excessive leakage of rays, so please stop using immediately, and immediately contact the manufacturer or seller, and send the instrument back to the manufacturer for repair.

VI. Structural description

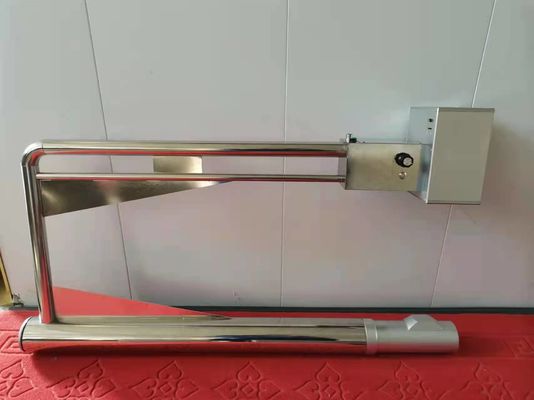

X-ray tube; 2. Collimator; 3. Switch; 4. Flat type X-ray image intensifier; 5. Lithium battery installation position.
