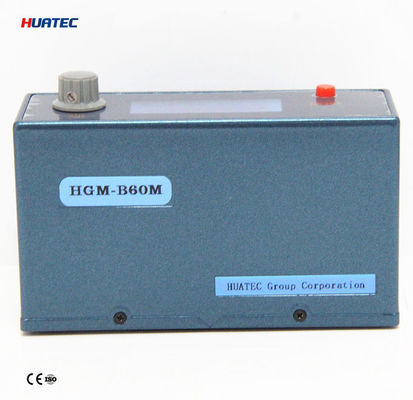

HGM-B60M Mini Metal Mirror Gloss Meter Paint Mirror Gloss Meter Accurate

HUATEC Gloss meter Reference angle for different application

Features
1. Small and light, real easy to be carried and used.
2. One 1.5 mignon alkaline Battery can be used for almost 60 hours and 10000 reading.
3. High stability
4. Long-term stable light source needs no replacing forever.
5. Quartz crystal standard board, no excursion.

6. Zero self-adjustment.

Parameter
The technical parameters up to JJG 696 (First-level standard).
1, test swpe:0.0-1999.0(Ｇs)
2, test accuracy:＜1%(Ｇs)
3, stability:2Gs/30min
4, test caliber:14×28(mm) ellipse
5, size:114×35×65 (mm)
6, power:1.5V AA battery

Instructions

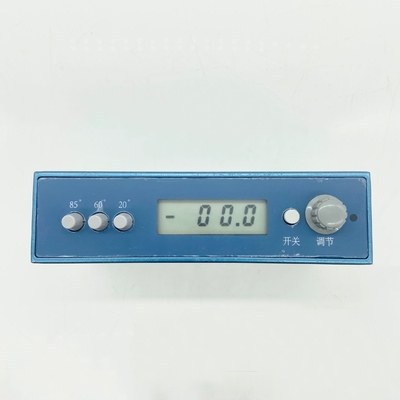

1. Switching meter to open, press the need to test the key point.

2. Operation: Open standards board boxes, and glass will be standard for on-board flat on the table, will center positioning meter, "inverted triangle" signs at the edge groove center, adjust adjustment knobs, meter readings should be the same to the standard black glass plate nominal value (see box corresponding standard plate angle data).

3. Calibration: measuring equipment calibration good white ceramic plate (to be positioning equipment centers "inverted triangle" signs at the edge groove Centre) the corresponding numerical point of the show should not be larger than the standard white ceramic plate nominal value ± 1.2 gloss units, or black and white standards board should check the cleanliness of the surface, or equipment failure. If meter is working well, do not need to make calibration as often.

4. Measurement: Use the good calibration meter to measure the tested samples.

Standard Delivery
