HEF-201STC Multi-frequency Eddy Current Tester for Defect Inspection & Conductivity

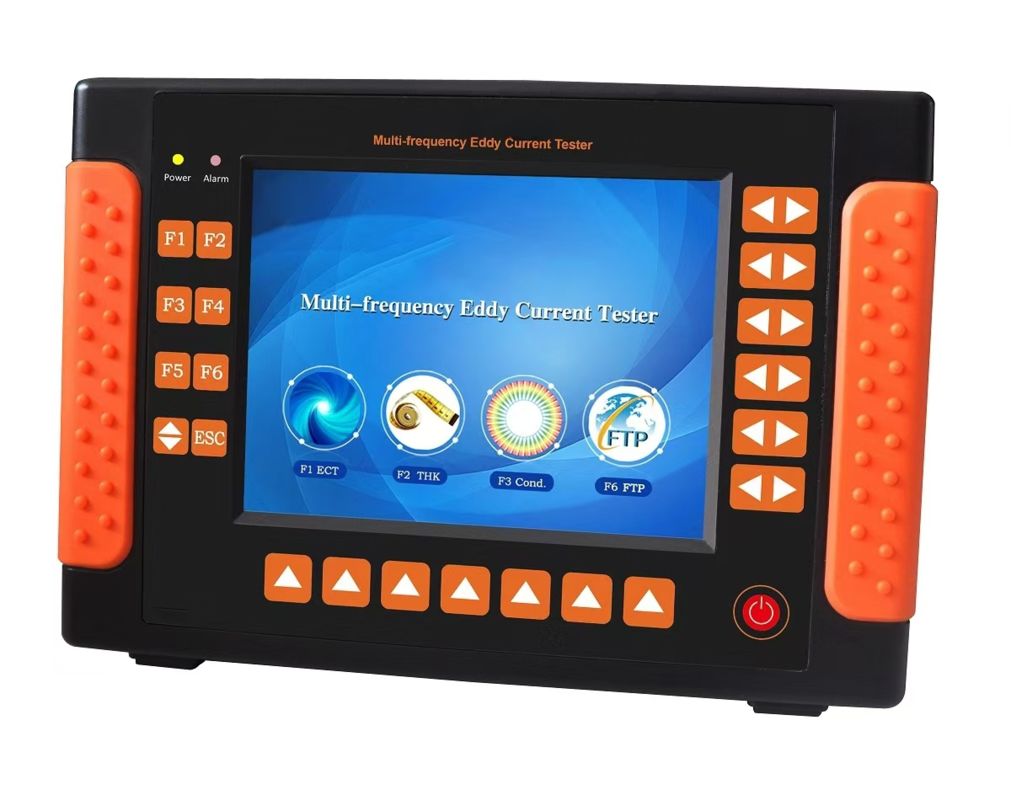

Large Image : HEF-201STC Multi-frequency Eddy Current Tester for Defect Inspection & Conductivity

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	HEF-201STC

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Packaging Details:	Carton packing box
Delivery Time:	7-10 working days after receipt of your payment
Payment Terms:	T/T,Paypal
Supply Ability:	10sets/Month

Contact Now

HEF-201STC Multi-frequency Eddy Current Tester for Defect Inspection & Conductivity

Description

Frequency Range:	64 Hz-5 MHz	Phase:	0-359° In 0.1° Steps
Gain:	0-90 DB In 0.5 DB Steps	Display:	6.4" TFT 640 X 480
Operating Temperature:	-20°C To 55°C	Battery:	Lithium Battery, Long Working Time Of 8 Hours Per Charge
Highlight:	Multi-frequency eddy current tester , Defect inspection conductivity tester , Non-destructive testing equipment

HEF-201STC Multi-frequency Eddy Current Tester for Defect Inspection & Conductivity

Key Specifications

Frequency Range	64 Hz-5 MHz
Phase	0-359° in 0.1° steps
Gain	0-90 dB in 0.5 dB steps
Display	6.4" TFT 640 x 480
Operating Temperature	-20°C to 55°C
Battery	Lithium battery, 8 hours working time per charge

Product Overview

The HEF-201STC Real-time Multi-frequency Eddy Current Tester revolutionizes manual inspection with enhanced speed, accuracy, and efficiency. This advanced instrument combines defect inspection, conductivity measurement, and coating thickness measurement in one compact, powerful device.

With real-time multi-frequency eddy current technology, inspection settings can be stored and quickly recalled for different applications, streamlining your workflow and improving productivity.

Technical Specifications

General Specifications

Instrument Dimensions: 253mm x 87mm x 175mm (2.4kg)

Storage: 4 GB for testing data, parameters and images

Defect Inspection

Frequency: 2 driving frequencies per channel

Channel: 1 channel

Mixing Unit: 1 unit to suppress noise signal

Gain Ratio (Y/X): 0.1-10

Filters: High Pass (0-500 Hz), Low Pass (10-10000 Hz), Digital (1-100)

Coating Thickness Measurement

Range: 0-5mm (extendable to 0-40mm)

Accuracy: ±0.05mm

Display Resolution: 0.01mm

Conductivity Measurement

Range: 1-110 %LACS

Accuracy: ±0.5% (1-65 %LACS), ±3% (65-110 %LACS)

Storage: 20 parameter units, 100 screenshot units

Advanced Features

High-precision defect inspection (cracks, scratches, holes, pits, etc.)
Accurate conductivity and coating thickness measurement
Fast digital electronic balance
Interactive operation tips and help function
Dual XY displays with real-time visualization
Pre-stored parameter profiles for quick recall
USB, Internet, and Encoder connectivity
Bilingual interface (English and Chinese)

Industrial Applications

Crack detection in aircraft components, axles, machine parts, and bolts
Surface inspection of welds (with or without coating)
Non-ferrous tube inspection (heat exchangers, boilers, pipelines)
Material sorting by heat treatment conditions
Composite material inspection for layer gap corrosion
Workpiece thickness change detection
Conductivity and coating thickness measurement
