SRT-210G Roughness Contour Profile Analysis Tester with 100mm Measuring Range

SRT-210G Roughness Contour Profile Analysis Tester with 100mm Measuring Range
SRT-210G Roughness Contour Profile Analysis Tester with 100mm Measuring Range SRT-210G Roughness Contour Profile Analysis Tester with 100mm Measuring Range

Large Image :  SRT-210G Roughness Contour Profile Analysis Tester with 100mm Measuring Range

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: CE
Model Number: SRT-210G
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: USD14950/set - USD16900/set
Packaging Details: Carton packing box
Delivery Time: 10-15 working days after receipt of your payment
Payment Terms: T/T,Paypal
Supply Ability: 10sets/Month
Contact Now

SRT-210G Roughness Contour Profile Analysis Tester with 100mm Measuring Range

Description
Straightness: 1um/100mm Movement Speed: 0 ～10mm/s （arbitrary Speed）
Indication Accuracy: ±（2.5+2L/100) L Is Driving Length（mm） File Output Mode: PDF， Excel
Power: 400W，AC220V 50HZ Air Consumption: 30L/min
Highlight:

Roughness Contour Profile Tester

,

100mm Measuring Range Tester

,

SRT-210G Profile Analysis Equipment

SRT-210G Roughness Contour Profile Analysis Tester with 100mm Measuring Range
Key Specifications
Attribute Value
Straightness 1um/100mm
Movement Speed 0～10mm/s (arbitrary speed)
Indication accuracy ±(2.5+2L/100) L is driving length(mm)
File output mode PDF, Excel
Power 400W, AC220V 50HZ
Air consumption 30L/min
Product Description
SRT-210G Roughness Contour Profile Analysis Tester
FEATURES:
  • Various types of workpiece surface line elements, point features
  • Point to point distance, line to line distance measurement
  • Location analysis including: distance, parallelism, angle, groove depth, groove width, radius
  • Straightness analysis, convexity analysis, profile analysis
SPECIFICATIONS:
XI AXIS (Cross Arm)
Measuring Range 100mm
Straightness 1um/100mm
Driving Mode Direct drive motor
Movement Speed 0～10mm/s (arbitrary speed)
Resolution 0.05μm
Indication accuracy ±(2.5+2L/100)μm L is driving length(mm)
Measuring direction backward
Measuring Method Grating Ruler
Z1 AXIS (SENSOR)
Measuring range 30mm
Resolution 0.05μm
Measuring Method Holographic grating sensor
Indication accuracy ±(1.5+|6H|/50)μm
Probe up/down movement Arc movement
Probe direction downward
Probe lifting mode manual
Measuring force 6mN
Probe radius: 25μm (cemented carbide) length: 20mm diameter: 2mm
Climbing angle up75° down85°
Measuring speed 0.1 mm/s～4 mm/s (any speed)
Z2 AXIS (COLUMN)
Max. Measuring height 200mm
Movement mode CNC or handle
Movement speed 0.1～8mm/s (any speed)
Tool and fixture
  • Precision two-dimensional adjustment platform: X:0 to 25mm, Y:0 to 25mm
  • Angle adjustment platform: Axial 360 degrees, pitch: ±45degrees
  • V shaped iron: 60mm
Acquisition control system
  • System transmission mode: USB and LAN
  • Motion control mode: CNC or handle drive
Data processing
  • Zoom in or out: Zoom in and out with the mouse wheel
  • Guides: Add guides to any area of the drawing
  • Data fitting: when the finished part cannot be measured at one time, it can be divided into several measurements and finally merged
  • Remove abnormal points: manually or automatically
  • Graph move: drag the mouse to move freely within the graph coordinates
  • Graph rotation: Any angle rotation
  • Zoom: Select region to zoom in and out
  • SPC quality analysis: Histogram, normal distribution
  • File output mode: PDF, Excel
  • Measuring report: editor can output standard report, and user can edit report according to requirement
Working Parameters
  • Air consumption: 30L/min
  • Power: 400W, AC220V 50HZ
  • Working condition: Temperature: 10～30℃; Humidity: ＜85%
Optional Accessories:
  • Industrial Personal Computer & display screen: 1
  • Output A4 printer: 1
  • Standard adjustment platform: 1
  • Stand block: 1
  • Standard ball: 1

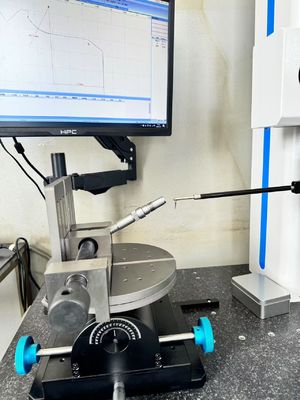

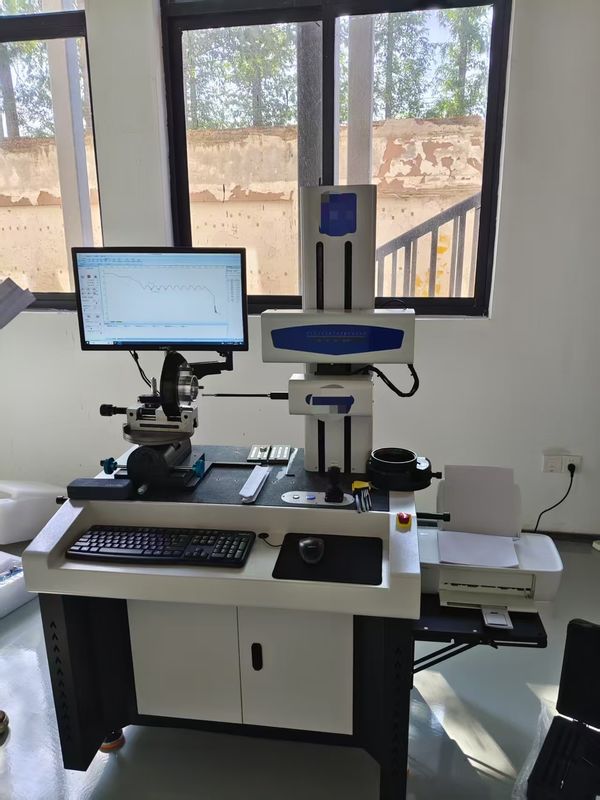

SRT-210G Roughness Contour Profile Analysis Tester with 100mm Measuring Range 0 SRT-210G Roughness Contour Profile Analysis Tester with 100mm Measuring Range 1
