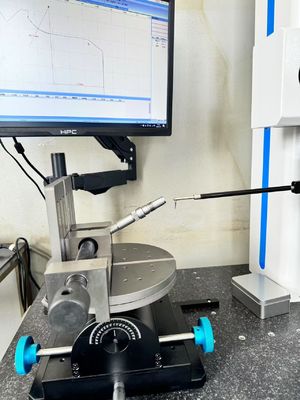

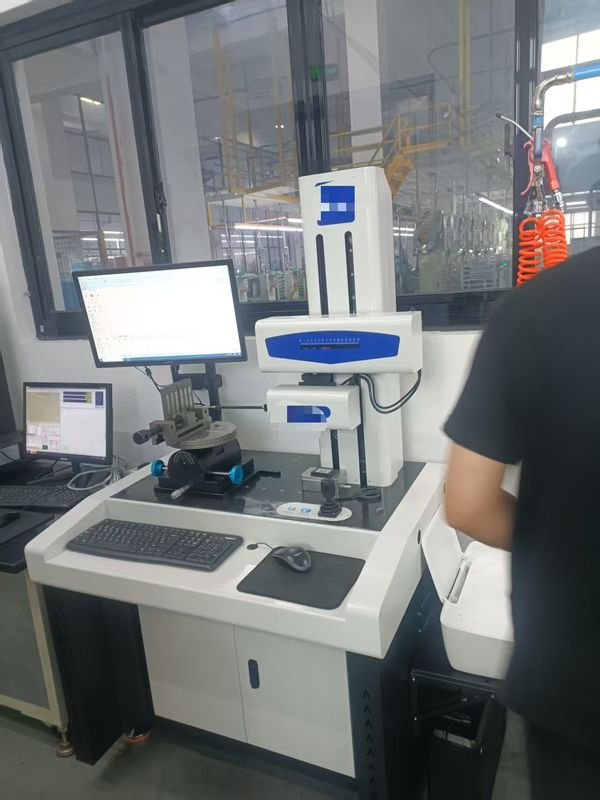

SRT-210G Roughness Profiler Contour Tester with 100mm Measuring Range

SRT-210G Roughness Profiler Contour Tester with 100mm Measuring Range
SRT-210G Roughness Profiler Contour Tester with 100mm Measuring Range SRT-210G Roughness Profiler Contour Tester with 100mm Measuring Range

Large Image :  SRT-210G Roughness Profiler Contour Tester with 100mm Measuring Range

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO,CE
Model Number: SRT-210G
Contact Now

SRT-210G Roughness Profiler Contour Tester with 100mm Measuring Range

Description
Measuring Arrange: 100mm Straightness: 1um/100mm
Driving Mode: Direct Drive Motor Movement Speed: 0 ～10mm/s （arbitrary Speed）
Highlight:

Roughness Profiler 100mm range

,

Contour Tester measuring instrument

,

SRT-210G surface roughness tester

SRT-210G Roughness Profiler Contour Tester with 100mm Measuring Range
Key Features
  • Measures various workpiece surface elements including line features, point features, and distances
  • Comprehensive analysis capabilities including distance, parallelism, angle, groove depth/width, radius
  • Advanced analysis functions: straightness, convexity, profile analysis
  • Precision measurement with high resolution and accuracy
  • Flexible data processing and reporting options
Technical Specifications
XI AXIS (Cross Arm)
  • Measuring Range: 100mm
  • Straightness: 1μm/100mm
  • Driving Mode: Direct drive motor
  • Movement Speed: 0～10mm/s (arbitrary speed)
  • Resolution: 0.05μm
  • Indication Accuracy: ±(2.5+2L/100)μm (L = driving length in mm)
  • Measuring Direction: Backward
  • Measuring Method: Grating Ruler
Z1 AXIS (Sensor)
  • Measuring Range: 30mm
  • Resolution: 0.05μm
  • Measuring Method: Holographic grating sensor
  • Indication Accuracy: ±(1.5+|6H|/50)μm
  • Probe Movement: Arc movement (up/down)
  • Probe Direction: Downward
  • Probe Lifting Mode: Manual
  • Measuring Force: 6mN
  • Probe Specifications: Radius: 25μm (cemented carbide), Length: 20mm, Diameter: 2mm
  • Climbing Angle: Up to 75° (upward), up to 85° (downward)
  • Measuring Speed: 0.1mm/s～4mm/s (any speed)
Z2 AXIS (Column)
  • Max. Measuring Height: 200mm
  • Movement Mode: CNC or handle
  • Movement Speed: 0.1～8mm/s (any speed)
Tool and Fixture
  • Precision Two-Dimensional Adjustment Platform: X: 0 to 25mm, Y: 0 to 25mm
  • Angle Adjustment Platform: Axial 360°, pitch: ±45°
  • V-shaped Iron: 60mm
Acquisition Control System
  • System Transmission Mode: USB and LAN
  • Motion Control Mode: CNC or handle drive
Data Processing
  • Zoom in/out with mouse wheel
  • Add guides to any area of the drawing
  • Data fitting for multi-section measurements
  • Remove abnormal points manually or automatically
  • Graph movement and rotation capabilities
  • SPC quality analysis (histogram, normal distribution)
  • File output in PDF and Excel formats
  • Customizable measuring reports
Working Parameters
  • Air Consumption: 30L/min
  • Power: 400W, AC220V 50HZ
  • Working Conditions: Temperature: 10～30℃; Humidity: ＜85%
Optional Accessories
  • Industrial Personal Computer & Dell display screen
  • A4 printer
  • Standard adjustment platform
  • Stand block
  • Standard ball
