High-Precision Roughness and Contour Tester with Digital Sensor
Product Specifications
| Attribute |
Value |
| Product name |
Roughness and Contour Tester |
| Angle |
Horizontal Angle, vertical angle, cross angle |
| X axis |
200mm |
| Straightness |
0.6μm /100mm |
Measurement Principle
Cartesian coordinates with stylus contact measurement
High precision air floating guide rail as X-axis measuring datum
Digital sensor for Z coordinate measurement
Windows-based software for data processing and reporting
Key Measurement Capabilities
Dimension Measurement:
Horizontal, vertical, and linear distances
Radius and diameter measurements
Angle Measurement:
Horizontal, vertical, and cross angles
Tolerance Analysis:
Parallelism and perpendicularity
Straightness, crown, and circular arc profile
Technical Parameters
| Item |
Parameter |
Resolution |
| Measurement range |
X axis: 200mm |
0.1μm |
| Straightness |
0.6μm /100mm |
-------- |
| Z1 Sensor range |
40mm (Roughness range synchronization) |
0.05μm |
| Min. inner hole |
30mm (smaller with specialized needles) |
---------- |
| Linear accuracy |
≤±(1+I0.12HI)μm |
------ |
| Angle accuracy |
≤±1′ |
60°,90° angle block |
Technical Highlights
Simultaneous roughness and profile analysis
High-precision friction linear guides (X-axis)
Imported digital sensor (Z1 axis)
Easy stylus replacement without recalibration
Bilingual software (Chinese/English)
CAD-compatible file import/export (DXF format)
Advanced measurement automation features
Equipment Dimensions
| Dimension |
Product |
Packing |
| Length (mm) |
1400 |
960 |
| Width (mm) |
725 |
960 |
| Height (mm) |
1740 |
1950 |
| Weight (kg) |
270 |
300 |
Installation & Service
On-site installation and testing by supplier
Comprehensive user training program
Acceptance testing per national standards

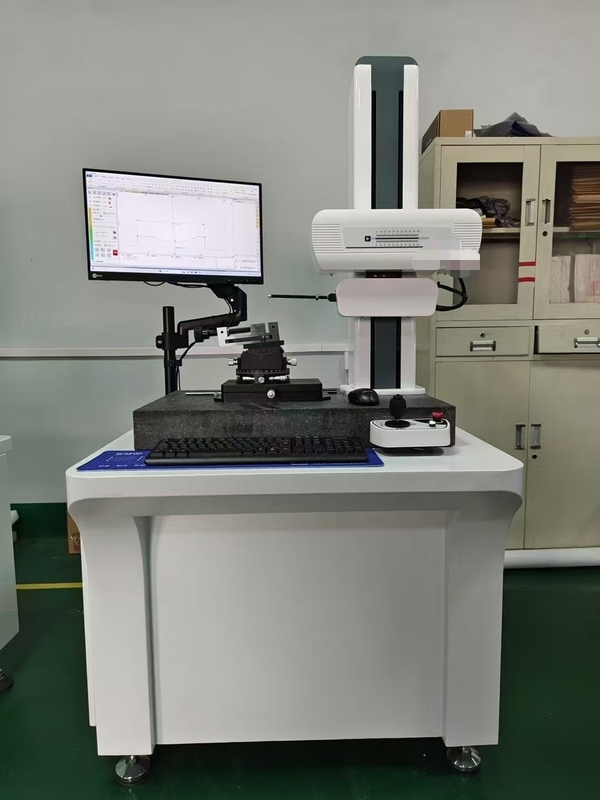

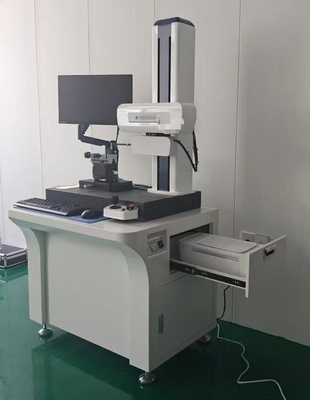

Product Images
