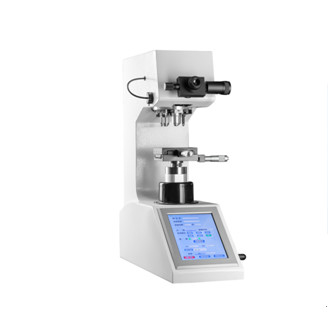

HV-1MDT-4 Automatic Turret Digital Micro Vickers and Knoop Hardness Tester

HV-1MDT-4 Automatic Turret Digital Micro Vickers and Knoop Hardness Tester
HV-1MDT-4 Automatic Turret Digital Micro Vickers and Knoop Hardness Tester HV-1MDT-4 Automatic Turret Digital Micro Vickers and Knoop Hardness Tester

Large Image :  HV-1MDT-4 Automatic Turret Digital Micro Vickers and Knoop Hardness Tester

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: CE
Model Number: HV-1MDT-4
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: USD5325/set - USD6020/set
Packaging Details: Carton packing box
Delivery Time: 7-10 working days after receipt of your payment
Payment Terms: T/T,Paypal
Supply Ability: 10sets/Month
Contact Now

HV-1MDT-4 Automatic Turret Digital Micro Vickers and Knoop Hardness Tester

Description
Hardness Test Range: 8~2900HV/HK, Test Method Of Force Application: Automatic (loading, Retaining, Unloading)
Test Microscope Magnification: 400X, 100X, 800X, 2.5mm Distance Objective Is Optional Test Force Retention Time: 1-99s
Maximum Allowable Specimen Height: 100mm Distance From Indenter To Machine Wall: 130mm
Highlight:

Automatic Digital Micro Vickers Hardness Tester

,

Knoop Hardness Tester HV-1MDT-4

,

Non Destructive Testing Equipment Micro Vickers

HV-1MDT-4 Automatic Turret Digital Micro Vickers and Knoop Hardness Tester

  • Product Introduction

HV-1MDT-4 automatic turret digital microhardness tester is simultaneously installed with Vickers, Knoop indenter and 3 kinds of objective lenses. The Vickers hardness and Knoop hardness values can be measured simultaneously.

Using optical cross guide lifting mechanism, accurate force value, clear image, is the ideal high-end microhardness tester.

  • Technical parameters
Model number HV-1MDT-4
Test Force 10gf (0.098N), 25gf (0.245N), 50gf (0.49N), 100gf (0.98N), 200gf (1.96N), 300gf (2.94N), 500gf(4.9N), 1Kgf (9.8N)
Meet the standard

GB/T4340.2, GB/T 18449.2

ASTM E92
Measurement resolution 0.01 (including m
Data display output 8 inch touch screen displays readings, can store 20 kinds of test results, built-in printer and RS-232 interface, optional USB flash drive
Conversion scale Lowe's, Brinell
Hardness test range 8~2900HV/HK,
Test method of force application Automatic (loading, retaining, unloading)
Test microscope magnification 400X, 100X, 800X, 2.5mm distance objective is optional
Test force retention time 1-99s
Maximum allowable specimen height 100mm
Distance from indenter to machine wall 130mm
X-Y test bench Size: 110*110mm Maximum movement: 25*25mm
Dimensions 540*260*650mm
Weight About 50Kg
Power supply AC220V+5%, 50-60Hz
  • Main features
  1. Simultaneously installed with Vickers, Knoop indenter and 3 objective lenses;
  2. 8 inch touch screen interface, easy to operate.

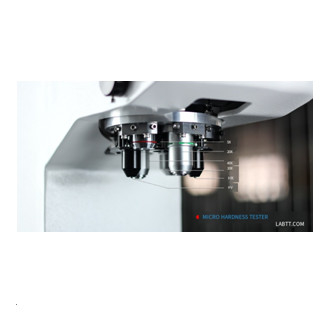

  3. Automatic turret, the test head and the objective lens automatically switch to each other, and the test point is automatically positioned accurately.
  4. The lifting mechanism guided by optical cross guide rail is adopted to ensure the guiding accuracy and no gap; The use of pinion and rack two-stage force transmission, can achieve fast and stable force transmission.
  5. Before and after the pressure, the indenter is located in the indenter protective cover to ensure that the indenter is touched by the sample or other items.
  6. Long object distance elimination, chromatic aberration optical system (option), 40x HD objective distance from the sample is greater than 2.5 mm, completely avoid contact between the objective lens and the sample.
  7. Optional optical system: 100, 400, 800 times optical magnification function.
  8. Light source using LED lamp, long life, no need to replace the bulb.
  9. With a built-in camera (optional), the image is clearer.
  10. Max test force 2Kg (optional).
  11. It can be calibrated according to the standard hardness block or length scale, and automatically corrects the hardness according to the high, middle and low hardness value, and the hardness value is more accurate.
  12. Various hardness values are converted to each other, data statistics are saved, easy to query and print out.
  13. Equipped with RS-232 interface, can be connected with the computer.
  14. The test result data is automatically saved in EXCEL format on U disk (optional).
  15. The test setup parameters are password protected.
  16. At least 3 languages such as Chinese and English can be selected, other languages can be customized.
  • Standard accessories
Name Quantity Name Quantity
Shaft of weight
  1.
  •
  1.
Micrometer eyepieces (DHV-1000-10X)
  1.
 Microhardness block (high block, medium block) 1 block each
XY test bench
  1.
 Universal footing
  1.
Spirit level
  1.
 Spare fuse (2A)
  1.
Power cord
  1.
 Dust cover
  1.
Product certificate, warranty card 1 copy
  •
 1 copy
Printer paper 1 serving
  •
  1.
Screw lot 2 sets

  • Select accessories:
Fine wire holder table
  •
 Flat mouth gripper table
  1.
Wafer holder table
  1.
 Vickers measurement software 1 set

HV-1MDT-4 Automatic Turret Digital Micro Vickers and Knoop Hardness Tester 0HV-1MDT-4 Automatic Turret Digital Micro Vickers and Knoop Hardness Tester 1HV-1MDT-4 Automatic Turret Digital Micro Vickers and Knoop Hardness Tester 2
