Conventional Vibration Rotating and Reciprocating Portable Vibration Data Collector

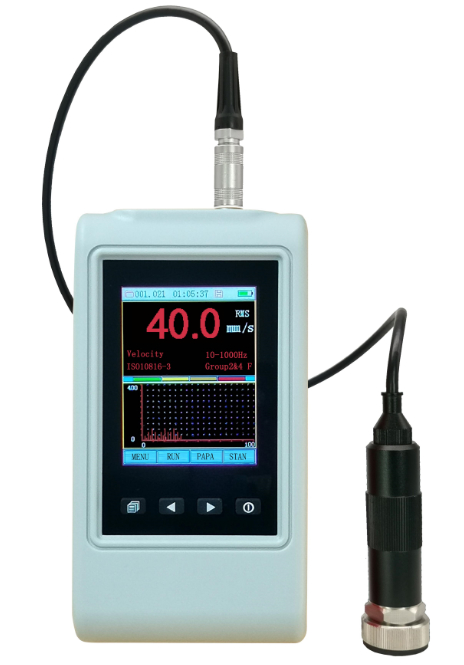

Large Image : Conventional Vibration Rotating and Reciprocating Portable Vibration Data Collector

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	ISO,CE
Model Number:	HG-6390

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Packaging Details:	in carton box
Delivery Time:	3~7 working days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	50sets per month

Contact Now

Conventional Vibration Rotating and Reciprocating Portable Vibration Data Collector

Description

Prodcut Name:

Portable Vibration Data Collector

Testing Range:

Acce: 0.1 ~ 400.0m/s2(peak)

Display:

TFT:2.8”,320×240 Pixels With RGB

Data Interface:

USB(RS232/RS485),Bluetooth

Highlight:

Portable vibration data collector with 400m/s2 range

Vibration data collector with 2.8 inch display

Non destructive testing equipment with warranty

Conventional Vibration Rotating and Reciprocating Portable Vibration Data Collector

The HG-6390 vibration data collector uses a piezoelectric acceleration transducer to convert vibration signals into electrical signals. Through signal analysis, it displays or prints results including RMS velocity values, peak-to-peak displacement, acceleration peaks, and real-time spectral charts. This instrument captures vibration parameters while recording real-time vibration curves.

Designed for conventional vibration testing in rotating and reciprocating machinery, this device measures acceleration, velocity, displacement, and rotational speed (or inherent frequency), while providing basic fault diagnosis capabilities.

Key Features

Built-in ISO10816 fault diagnosis standard for automatic equipment fault detection
Complies with GB 13823.3 technical specifications
Widely used in machinery, power, metallurgy, automotive, and industrial applications
Comprehensive vibration analysis with multiple parameter measurements
Extended battery life with 20 hours continuous operation

Standard Configuration

NO.	Item	Quantity
1	Main unit	1
2	Power Adapter (5V/1000mA)	1
3	Piezoelectric sensors	1
4	Magnetic seat	1
5	Manual	1
6	Package case	1

Optional Configuration

NO.	Item	Quantity
3	Probe	1
4	Communication cable	1

Technical Specifications

Testing Range (Metric): Acceleration: 0.1 ~ 400.0m/s² (peak) | Velocity: 0.1 ~ 400.0mm/s (RMS) | Displacement: 0.001 ~ 4.000mm (peak-peak)

Frequency Range: Acceleration: 10Hz ~ 1KHz, 1KHz ~ 10KHz | Velocity: 10Hz ~ 1KHz | Displacement: 10Hz ~ 500Hz

Data Memory: 150×100 pieces of patrol data | 30~480 pieces of record data

Operating Temperature: 0℃ ~ 40℃

Tolerance: ±5%

Humidity: ≤80% RH

Display: 2.8" TFT (320×240 pixels with RGB)

Data Interface: USB (RS232/RS485), Bluetooth

Dimensions: 140×76×28 mm

Printer: Wireless Bluetooth printer (optional)

Weight: 180g

Battery: Rechargeable Li battery, 2000mAh

Battery Life: Continuous operation: ~20 hours | Standby: ~80 hours
