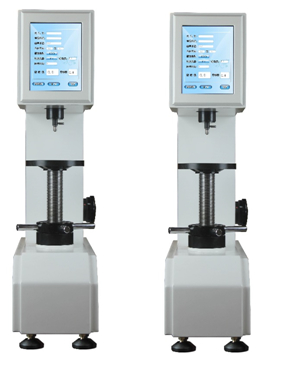

HR-150DT-P Rockwell Hardness Tester with 150kgf Test Force and 0.1 HR Resolution

HR-150DT-P Rockwell Hardness Tester with 150kgf Test Force and 0.1 HR Resolution
HR-150DT-P Rockwell Hardness Tester with 150kgf Test Force and 0.1 HR Resolution

Large Image :  HR-150DT-P Rockwell Hardness Tester with 150kgf Test Force and 0.1 HR Resolution

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO,CE
Model Number: HR-150DT-P
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: in wooden box
Delivery Time: 5~8 working days after payment
Payment Terms: L/C,T/T,Western Union
Supply Ability: 50 sets per month
Contact Now

HR-150DT-P Rockwell Hardness Tester with 150kgf Test Force and 0.1 HR Resolution

Description
Product Name: Rockwell Hardness Tester Model Number: HR-150DT-P
Initial Test Force: 10 KGF (98.07 N) Total Test Force: 60kgf(588N) 100kgf(980N) 150kgf(1471N)
Hardness Value Resolution: 0.1 HR Data Output: LCD Display
Highlight:

Rockwell hardness tester 150kgf

,

HR-150DT-P hardness testing machine

,

Rockwell tester 0.1 HR resolution

HR HB HV Other Hardness System Conversion Touch Screen Plastic Rockwell Hardness Tester
Product Description
  • Electric loading system with weights and high-precision sensor
  • User-friendly touch screen interface for easy operation
  • Automatic correction with standard hardness block divided into high, medium, and low sections
  • Built-in convex cylinder hardness correction
  • Advanced data processing including HR, HB, HV hardness system conversion
  • Customizable qualified range settings with automatic alarm for out-of-spec results
  • Test data storage with tester and sample name input capability
  • Automatic storage, processing, and printing of test results
Technical Parameters
Model number HR-150DT-P
Initial test force 10 KGF (98.07 N)
Total test force 60kgf(588N), 100kgf(980N), 150kgf(1471N)
Rockwell hardness scale HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRR, HRP, HRS, HRV
Scope of testing HRE:70-100, HRL:100-120, HRM:85-110, HRR:114-125
Load retention time 0-99s
Hardness value resolution 0.1 HR
Test force error <1.0%
Data output LCD display
Touch screen size 8 inches
Data storage 20 test results capacity, built-in printer RS-232 interface
Compliant with standards GB/T230.2, GB/T3398.2, JB/T7409
Maximum specimen height 200mm
Indenter to machine wall distance 200mm
Dimensions 560×200×800mm
Weight 70kg
Power supply AC220 ±5%, 50-60Hz
Operating Interface
HR-150DT-P Rockwell Hardness Tester with 150kgf Test Force and 0.1 HR Resolution 0 HR-150DT-P Rockwell Hardness Tester with 150kgf Test Force and 0.1 HR Resolution 1
Data storage interface with high, medium, and low hardness value automatic correction
Standard Accessories
Name Quantity Name Quantity
Touchscreen pen, printer paper 1 each Large, medium, and V-shaped test stands 1 each
Ball indenter (diameter 3.175, 6.35, 12.7mm) 3 pieces Hardness blocks (HRE,HRL,HRM,HRR) 4 blocks
Spirit level 1 Horizontal adjustment foot 4
Power cord 1 Dust bag 1
Product certificate, warranty card 1 copy Instructions 1 copy
