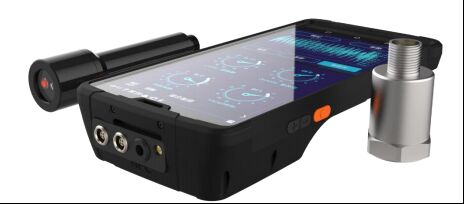

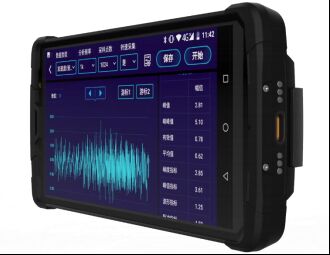

HG-180A Route-based Inspection Dual channel Vibration Analyzer Dynamic Balancer

Channels NO.

Vibration channel x1

Speed channel x1

Temperature measurement channel x1

Vibration acquisition

Acceleration(peak) :0.01-60g,(0.01-600m/S² )                                 Velocity(RMS):0.01-600mm/s                                                      Displacement(peak to peak):0.1-2000μm

Vibration frequency response range

Acceleration:0.5HZ-10KHZ  Velocity:1HZ-1KHZ  Displacement:1HZ-1KHZ

Speed acquisition

Measurement range: 300000-60000 rpm, Measurement accuracy:1%

Contact temperature measurement

Measuring range: - 55 ℃ - 125 ℃                                                                            Measurement accuracy: ± 1% or ± 1 ℃ (maximum)

Infrared temperature measurement (optional)

Measurement range:-60—380     Measurement accuracy:1%(maximum)

Gain amplification

Hardware program-controlled gain amplifier with automatic adjustment of magnification of 1,2,4,8 can effectively improve the signal-to-noise ratio

Multiple filtering

Hardware multiple signal filtering to obtain the target signal flexibly to the greatest extent.

Low pass filtering

Anti aliasing filtering: hardware automatic adjustment

Hardware integration processing

Hardware integration processing (without integration, primary integration and secondary integration). If an acceleration sensor is used, three signals of acceleration, velocity and displacement can be obtained

High precision AD converter

16 bit A/D, effectively improve the system accuracy.

Rich trigger sources

Internal vibration signal trigger and external speed signal trigger ensure various complex applications

Analysis frequency

0.1HZ~50KHZ

Network Communications

Blue tooth

Battery powered

Built in lithium battery, battery life ≥ 8 hours

Sampling points

256,512,1024,2048,4096,8129 Optional , long-time continuous acquisition and storage

Spectral lines NO.

100,200,400,800,1600,3200,6400,12800

Working temperature

-20℃~70℃(ordinary type)    -20℃~50℃(explosion proof type)

Ambient humidity

95% RH non-condensing

Power Supply

5V DC(with power adapter)

IP Grade

IP66

Explosion proof grade

Ex ibllC  T4  Gb
