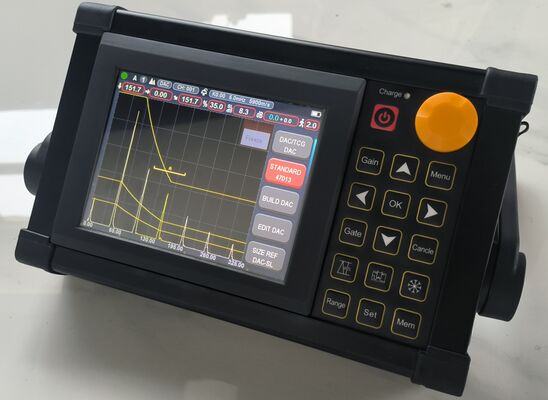

FD203 High Speed Real-time Video Recording Ultrasonic Flaw Detector

FD203 High Speed Real-time Video Recording Ultrasonic Flaw Detector

★ User friendly dialog interactive helps operations like Calibration, making curves, etc.
★ All tools you need: DAC, AVG, TCG, AWS.
★ Pulse Repetition Frequency: 20-2000Hz precise adjust, high speed scan, no miss out.
★ High Signal to noise ratio, clear and stable echo, anti-noise design, perfect for tough working conditions.
★ 12-digit AD, high speed sampling leads to better echo diagram with all details. Sensitive and can detect even tiny flaws.
★Can use probe frequency 20M perfectly .
★ High speed real-time flaw detection video recording. Unlimited USB data storage.
★ IP65 standard. Alloy + Silica gel case, water and dust proof, solid and lasts forever. Damping support makes it stands in any angle.
★ Battery lasts 15 hours for one charge. Each battery has own charging control so with two batteries it can work around the clock.

Specifications

Functions

    Automated display precise flaw location(Depth d,level p,distance s,amplitude,sz dB,ф).
    Flaw sizing: Automatic flaw sizing using AVG or DAC/TCG, speeds reporting of defect acceptance or rejection.
    Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity . ( V2 and two hole )
    Convenient to make and use DAC/TCG and AVG to evaluate the echo, the curve can be modified and compensated.
    Connecting U-Disk,the unit can get unlimited memory.　
    Automated make video of test process and play; memory disk can store the testing video without time limit (Option)
    Color B scan.( Option )
    There are 15 standards of in the unit.
    Blue tooth connection to mobile device to generate and print detection reports on-site.(Option)
    AWS D1.1.
    Curved Surface Correction feature.
    Crack Height Measure function.
    Magnify gate:spreading of the gate range over the entire screen width.
    Auto-gain function.
    Envelope: Simultaneous display of live A-scan at 70 Hz update rate and envelope of A-scan
    display.
    Peak Hold: Compare frozen peak waveforms to live A-Scans to easily interpret test results.
    Scan Freeze:Display freeze holds waveform and sound path data.
    Alarm:Beep and LED.
    Real Time Clock.
    Fill echo.
    Capture mark.
    Echo color within the Gate.

Base Instrument Package
1.    Portable Ultrasonic Flaw Detector FD203
2.    Straight Beam Transducer (2.5 MHz, Φ20)
3.    Angle Beam Transducer (4 MHz, 8 mm×9 mm, 60°)
4.    Interconnect Cable for the transducer (Q9-C9 and C9- C5)
5.    Rechargeable Li-Ion Battery Package, 8 amp hour
6.    Power supply/charger unit
7.    Operating Manual in English
