TG-7522FN FN Type Coating Thickness Gauge for Corrosion & Thickness Measurement

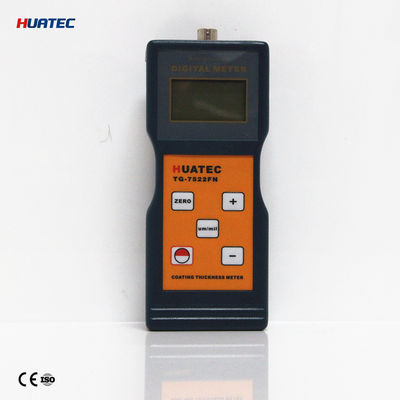

Large Image : TG-7522FN FN Type Coating Thickness Gauge for Corrosion & Thickness Measurement

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	TG-7522FN

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Packaging Details:	Outer carton packaging
Delivery Time:	7-10 working days after receipt of your payment
Payment Terms:	T/T,Western Union,Paypal
Supply Ability:	10 Sets/Month

Contact Now

TG-7522FN FN Type Coating Thickness Gauge for Corrosion & Thickness Measurement

Description

Measuring Range:	0-1000um	Measurement Accuracy:	±1-3%n Or ±2.5um
Resolution Ratio:	0.1μm /1μm	Min. Measuring Area:	6mm
Min. Sample Thickness:	0.3mm
Highlight:	FN type coating thickness gauge , corrosion measurement thickness gauge , non-destructive testing thickness meter

TG-7522FN FN Type Coating Thickness Gauge for Corrosion & Thickness Measurement

Product synopsis

Application:used for measuring thickness and corrosion of pressure vessels,chemical equipment,boilers,oil storage tanks,etc.in industries of petroleum,shipbuilding,power station,and machine manufacturing.

Technical Parameters:

Operating principle	magnetic induction/eddy current (F/NF)
Measuring range	0-1000um
Resolution	0.1/1
Accuracy	±1-3%n or ±2.5um
Min. measuring area	6mm
Min. sample thickness	0.3mm
Battery indicator	low battery indicator
Metric/ imperial	convertible
Power supply	4x1.5V AA(UM-3)battery, Auto power off
Operating conditions	0-+45℃(32℉-104℉),≤90%RH
Dimensions	160x68x32mm
weight	250g(not including battery)
Optional accessories	other range 0-200um to 15000um

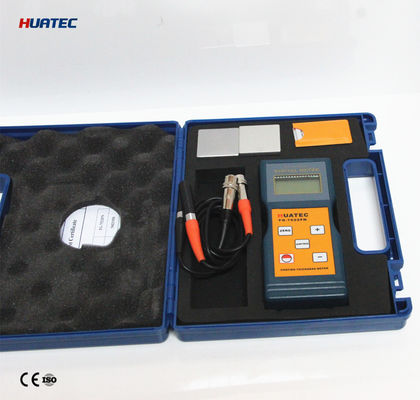

TG-7522FN FN Type Coating Thickness Gauge for Corrosion & Thickness Measurement 0

TG-7522FN FN Type Coating Thickness Gauge for Corrosion & Thickness Measurement 1

TG-7522FN FN Type Coating Thickness Gauge for Corrosion & Thickness Measurement 2
