V-WAC Type Single Arm Fillet Stainless Steel Weld Gauge Metric & Inch Dual Scale

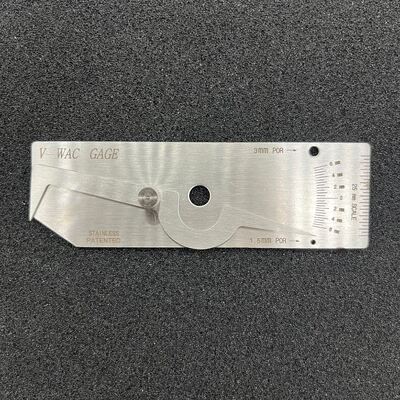

Large Image : V-WAC Type Single Arm Fillet Stainless Steel Weld Gauge Metric & Inch Dual Scale

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	V-WAC

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Packaging Details:	Carton packing box
Delivery Time:	7-10 working days after receipt of your payment
Payment Terms:	T/T,Paypal
Supply Ability:	10sets/Month

Contact Now

V-WAC Type Single Arm Fillet Stainless Steel Weld Gauge Metric & Inch Dual Scale

Description

Range:

Leg Length 3/8"–1" (10mm–25mm)

Material:

Stainless Steel

Scale:

Metric & Inch Dual Scale

Accuracy:

±0.05 Mm

Highlight:

stainless steel weld gauge

dual scale weld gauge

fillet weld gauge

V-WAC Type Single Arm Fillet Stainless Steel Weld Gauge Metric & Inch Dual Scale

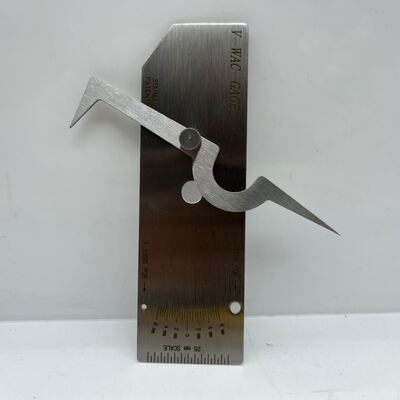

V-WAC single weld gauge is a professional precision measuring tool designed for fillet weld inspection. Made of high-quality stainless steel with clear etched dual scale (metric and inch), it can directly measure fillet weld leg length, throat thickness and determine convexity or concavity accurately without calculation. Compact structure, easy to operate and carry, it is widely used in steel structure, shipbuilding, pipeline, pressure vessel and engineering machinery industries for on-site welding inspection and quality control.

Measuring Range	Leg length 3/8"–1" (10mm–25mm)
Material	Stainless Steel
Scale	Metric & Inch Dual Scale
Accuracy	±0.05 mm

Application:

Measure fillet weld leg length
Measure effective throat thickness
Judge weld convexity and concavity

Application: Fillet weld inspection, steel structure, shipbuilding, pipeline, pressure vessel
