Industrial Ultrasonic Probe N07 7MHz 6mm Optional Sensor for Thickness Measurement Instrument

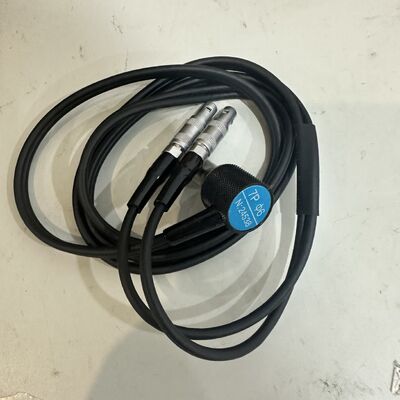

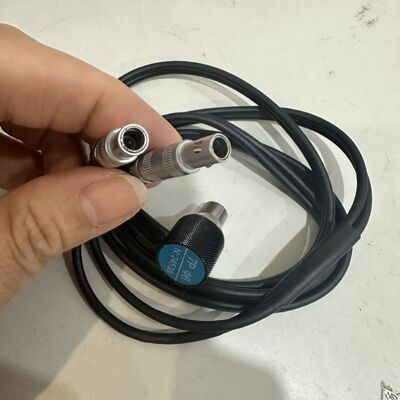

Large Image : Industrial Ultrasonic Probe N07 7MHz 6mm Optional Sensor for Thickness Measurement Instrument

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	N07

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Packaging Details:	Carton packing box
Delivery Time:	7-10 working days after receipt of your payment
Payment Terms:	T/T,Paypal
Supply Ability:	10sets/Month

Contact Now

Industrial Ultrasonic Probe N07 7MHz 6mm Optional Sensor for Thickness Measurement Instrument

Description

Working Temperature:

-10 °C To +60 °C

Frequency Range:

7 MHz (high Frequency For Thin-wall Precision)

Measurement Range:

Standard Single-mode Gauge: 0.75–80.00 Mm Multi-mode Gauge: 0.65–200 Mm

Crystal Diameter:

6 Mm (compact For Small Curves/tight Spots)

Highlight:

Industrial Ultrasonic Probe 7MHz

Ultrasonic Thickness Measurement Sensor

6mm N07 Probe with Warranty

Industrial Ultrasonic Probe N07 7MHz 6mm Optional Sensor for Thickness Measurement Instrument

Core Applications
Thin-wall tubes, small-diameter pipes, and curved surfaces
Precision measurement of steel, aluminum, and other metals
Corrosion monitoring in petroleum, chemical, shipbuilding, and aerospace industries

Key Specifications

Frequency	7 MHz (high frequency for thin-wall precision)
Crystal Diameter	6 mm (compact for small curves/tight spots)
Min. Pipe Size	Φ15 mm × 2.0 mm
Cable Length	90 cm (custom 2 m available)
Operating Temp	-10 °C to +60 °C
Material	Piezoceramic + engineering plastic + stainless steel
Measuring Range (Steel)	Standard single-mode gauge: 0.75–80.00 mm Multi-mode gauge: 0.65–200 mm

Industrial Ultrasonic Probe N07 7MHz 6mm Optional Sensor for Thickness Measurement Instrument 0

Industrial Ultrasonic Probe N07 7MHz 6mm Optional Sensor for Thickness Measurement Instrument 1
