TG3300 metal plastic ceramic thickness gauge

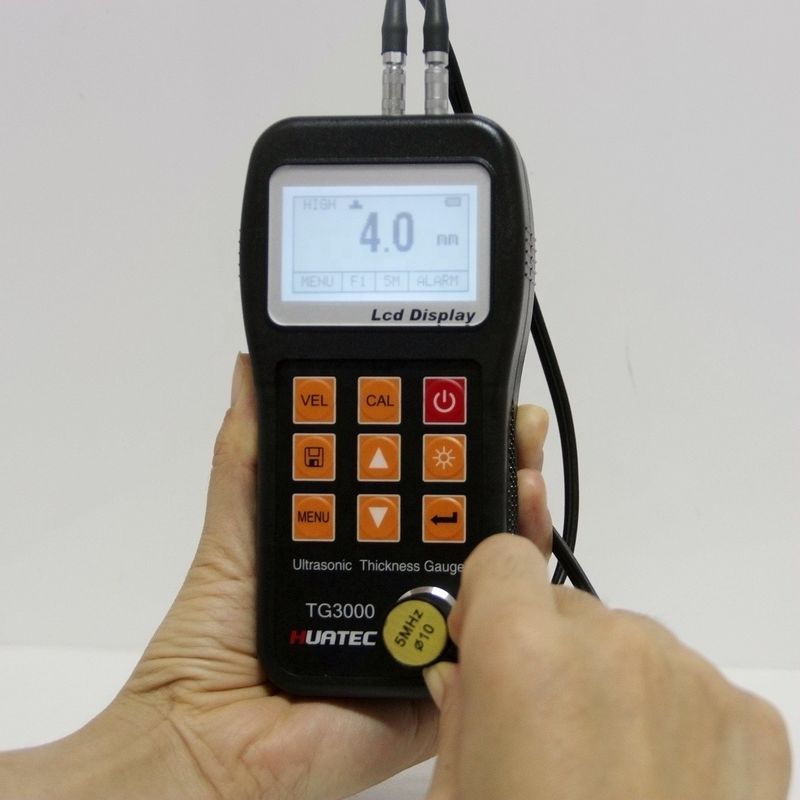

Large Image : TG3300 metal plastic ceramic thickness gauge

Product Details:

Place of Origin:	CHINA
Brand Name:	HUATEC
Certification:	ISO
Model Number:	TG3300

Contact Now

TG3300 metal plastic ceramic thickness gauge

Description

Name:

Ultrasonic Thickness Gauge

Use:

Detect Wall Thinning, Corrosion, Erosion In Pipes, Tanks, Vessels

Application:

Construction & Steel Structure

Industries:

Steel & Metal Fabrication

Highlight:

metal ceramic thickness gauge

plastic thickness gauge TG3300

non-destructive testing equipment

TG3300 metal plastic ceramic thickness gauge

HUATEC TG3300 is a portable digital ultrasonic thickness gauge used for non-destructive testing (NDT), measuring material thickness on one side without damaging the workpiece
Measure material thickness from one side without damageHUATEC GROUP CORPORATION
Detect wall thinning, corrosion, erosion in pipes, tanks, vessels
Verify thickness of metals, plastics, ceramics, composites, glass
High precision: 0.01mm resolution, range 0.75–300mm (steel)
Support metric/imperial, 2-point calibration, RS232 data output.

Product Specifications

No.	Specification Item	Detailed Parameters
1	Display	4.5 digits LCD with EL backlight
2	Measuring Range	(0.75～300) mm (in Steel)
3	Sound Velocity Range	(1000~9999) m/s
4	Resolution	TG3000: 0.1mm TG3100: 0.1mm / 0.01mm
5	Accuracy	±(0.5% Thickness + 0.04) mm, depends on materials and test conditions
6	Units	Metric / Imperial unit selectable
7	Measurement Speed	4 readings per second (Single Point Measurement) 10 readings per second (Scan Mode)
8	Data Memory	Up to 20 files storage, max 99 values per file
9	Power Source	2 × "AA" 1.5V alkaline batteries 100 hours typical operating time (EL backlight off)
10	Communication Port	TG3100: RS232 serial port TG3000: No communication port
11	Outline Dimensions	150mm × 74mm × 32mm
12	Net Weight	245g

Configuration

	No.	Item	Quantity	Note
Standard Configuration	1	Main body	1
	2	Transducer	1	Model: N05/90°
	3	Couplant	1

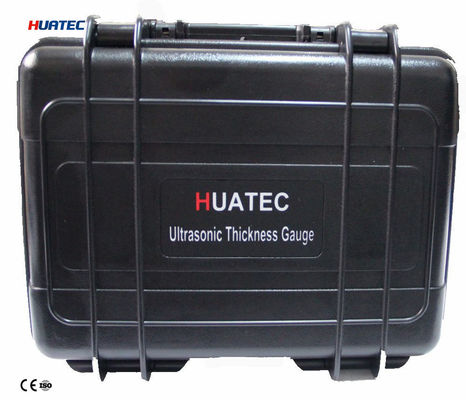

	4	Instrument Case	1
	5	Operating Manual	1
	6	Alkaline battery	2	AA size
	7
	8
Optional Configuration	9	Transducer: N02		See Table3-1
	10	Transducer: N07
	11	Transducer: HT5
	12	Mini thermal printer	1	Only for TG3100
	13	Print cable	1
	14	DataPro Software	1
	15	Communication Cable	1

Applications

Pipe & Pipeline Inspection

Tank & Vessel Inspection

Corrosion & Erosion Monitoring

Incoming Quality Control (IQC)

Production Line Thickness Verification

Maintenance & In-Service Inspection

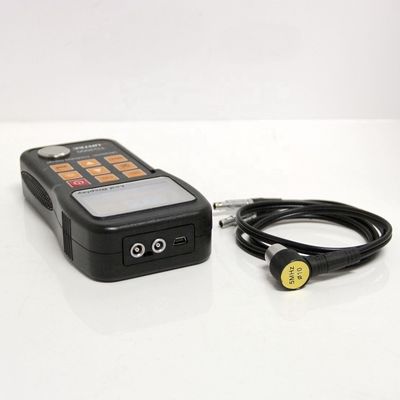

TG3300 metal plastic ceramic thickness gauge 0

TG3300 metal plastic ceramic thickness gauge 1
