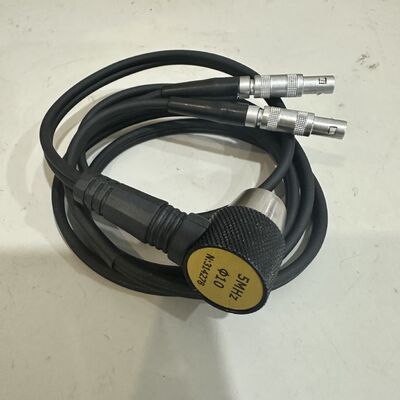

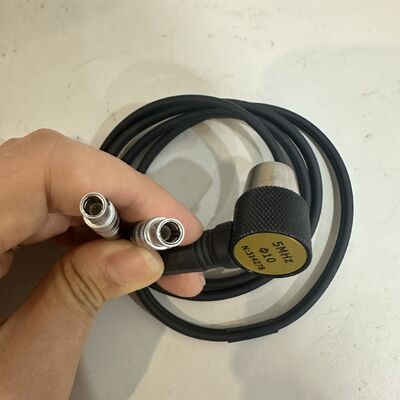

High Performance N05 90 Degree Ultrasonic Probe 5MHz 10mm Replacement Transducer for Thickness Gauge

High Performance N05 90 Degree Ultrasonic Probe 5MHz 10mm Replacement Transducer for Thickness Gauge

• Frequency: 5 MHz
• Crystal Diameter: 10 mm
• Measuring Range (Steel): 1.2–230.00 mm (standard gauge); 1.0–600 mm (multi-mode gauge)
• Min. Pipe Size: Φ20 mm × 3.0 mm
• Cable Length: 90 cm (custom 2 m available)
• Operating Temp: -10 °C to +60 °C
• Accuracy: ±(1%H + 0.1) mm
• Resolution: 0.1 mm (adjustable)
• Compatibility: Mitech & other major ultrasonic thickness gauges
• Applications: Corrosion monitoring, wall thickness measurement for pipes, tanks, vessels

  Applicable sound speed	1000–9999 m/s (suitable for metals / plastics / ceramics)
  Material	Piezoelectric ceramics + engineering plastics + stainless steel (integrated die-casting, durable)
  Probe angle	90° (angle, suitable for measurement at narrow / corner areas)
  Minimum applicable pipe diameter	Φ20 mm × 3.0 mm
  Measurable material	Homogeneous materials such as steel, aluminum, copper, cast iron, plastic, and ceramics
