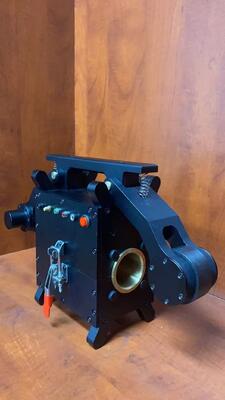

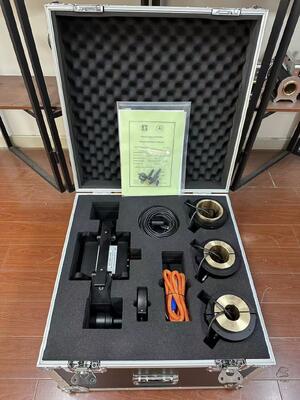

Magnetic Rope Testing Detector (MRT) Steel Rope Diagnostics by Magnetic NDT

Magnetic Rope Testing Detector (MRT) Steel Rope Diagnostics by Magnetic NDT
Magnetic Rope Testing Detector (MRT) Steel Rope Diagnostics by Magnetic NDT Magnetic Rope Testing Detector (MRT) Steel Rope Diagnostics by Magnetic NDT Magnetic Rope Testing Detector (MRT) Steel Rope Diagnostics by Magnetic NDT

Large Image :  Magnetic Rope Testing Detector (MRT) Steel Rope Diagnostics by Magnetic NDT

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO CE GOST
Model Number: HRD-120
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Packed in carton box
Delivery Time: 5~8 working days after payment
Payment Terms: L/C, T/T, Western Union,Paypal
Supply Ability: 100 sets per month
Contact Now

Magnetic Rope Testing Detector (MRT) Steel Rope Diagnostics by Magnetic NDT

Description
Product Name: Magnetic Wire Rope Flaw Detector Diameter Range Of Wire Rope: φ1.5-300mm
Relative Speed: 0.0-6.0 M/s Best: 0.1-0.5 M/s Power Supply: 5V From Computer Battery
Sensor Weight: Common Specifications < 10kg Ambient Temperature:: -10℃~40℃
Highlight:

Magnetic Rope Testing Detector for steel ropes

,

MRT steel rope diagnostics equipment

,

Magnetic NDT rope testing detector

Magnetic Rope Testing Detector (MRT) Steel Rope Diagnostics by Magnetic NDT



I. Product overview

◆ On-line detection of wire rope internal and external broken wire, wear, rust, deformation, loose strands, skip wire, material changes and other defects.

◆ The test result report can meet the standards of different industries and has the number of broken wires and the ratio of broken wire area to the total broken area of the wire.

◆ The use of computer USB interface (wired) or "own Wi-Fi network" (wireless) direct sampling processing analysis, with online sound and light alarm and real-time display results.

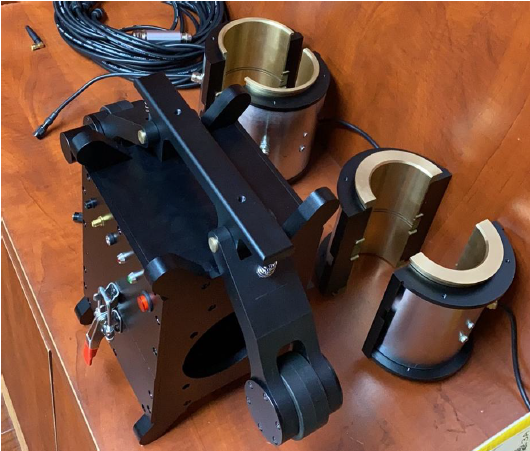

◆ Sensor circular structure, circumferential surround, axial magnetization, the wire rope instant magnetization to saturation state.

◆ The sensor adopts alloy aluminum shell, with waterproof, dustproof, shock-proof and moisture-proof functions.

◆ Stable operation, reliable performance, high detection accuracy, strong anti-interference performance, accurate data.

◆ Software ADAPTS to Windows 98/2000 / xp/Vista/ Windows 7/8/10/11 various computer operating systems

◆ Widely used in mining, cableway, lifting equipment, elevator, port machinery, cable bridge and other fields.



II. Technical indicators

The whole series can detect the diameter range of wire rope φ1.5-300mm (need to configure different series of specifications sensor)
Sensor and wire rope relative speed: 0.0-6.0 m/s Best: 0.1-0.5 m/s
The best gap between the sensor guide sleeve and the wire rope 2-4 mm
the allowable gap 0-15mm
The accuracy of qualitative detection of single centralized broken wire 99.99%
The accuracy rate more than 92% when the number of broken wires in a single place is detected without error for more than 100 times
The allowable repeatability error of detection sensitivity ±0.055%
The allowable error of test precision indication value ± 0.2%
Position (L) Detection capability: Percentage error of detection length indication value: ±0.2%
Power supply 5V from computer battery
Sensor weight common specifications < 10kg (customized according to the actual situation)
Ambient temperature -10℃~40℃
Atmospheric pressure 86~106Kpa
Relative humidity ≤85%



Magnetic Rope Testing Detector (MRT) Steel Rope Diagnostics by Magnetic NDT
