FJ-D50 Series Online X Gamma Radiation Detector 0.01μSv/h~1Sv/h Industrial Radiation Monitoring Probe

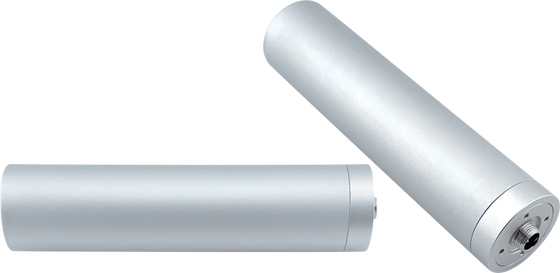

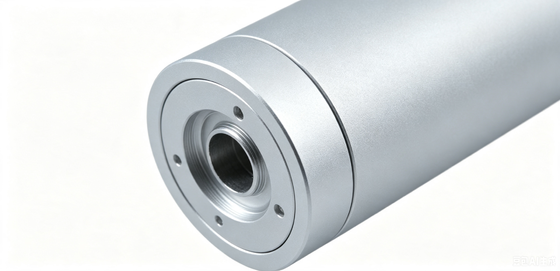

Large Image : FJ-D50 Series Online X Gamma Radiation Detector 0.01μSv/h~1Sv/h Industrial Radiation Monitoring Probe

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	FJ-D50 Series

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Packaging Details:	Carton packing box
Delivery Time:	5-7 working days after receipt of your payment
Payment Terms:	T/T,Paypal
Supply Ability:	10sets/Month

Contact Now

FJ-D50 Series Online X Gamma Radiation Detector 0.01μSv/h~1Sv/h Industrial Radiation Monitoring Probe

Description

Energy Response:

40keV～3MeV

Operating Temperature Range:

-20℃～+50℃

Relative Error, Not More:

±15%

Supply Voltage:

DC 7V～24V

Highlight:

Online X Gamma radiation detector

Industrial radiation monitoring probe

Gamma detector with high sensitivity

FJ-D50 Series Online X Gamma Radiation Detector 0.01μSv/h~1Sv/h Industrial Radiation Monitoring Probe

Features

Real-time measurement of γ and X-ray radiation in the workplace.
Alarm threshold can be set.
Compatible with host control equipment or upper-level monitoring software.

Delivery kit

Key Technical Specifications
	FJ-D50	FJ-D50-DGM	FJ-D50-H
Measurement range	0.01μSv/h～5000μSv/h	Double GM counting tubes 0.01μSv/h~1Sv/h	10μSv/h～1Sv/h
Energy response	40keV～3MeV
Relative error, not more	±15%
Operating temperature range	-20℃～+50℃
Relative humidity	≤98％
Supply voltage	DC 7V～24V
Dimensions	(45×190) mm			(45×220) mm
**Technical specifications are for reference only, please refer to the actual product model.

Delivery kit

Probe, data communication protocol or specialized data analysis software
