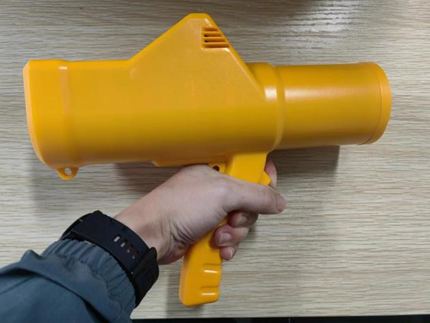

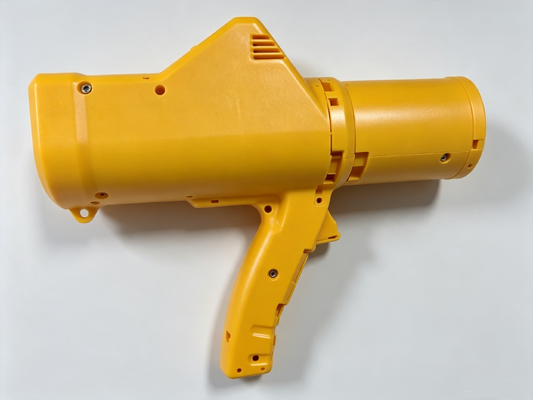

FJ-310A Dual GM Counter Tube X Gamma Radiation Detector 0.01μSv/h~1Sv/h Portable Radiation Dose Rate Monitor

Large Image : FJ-310A Dual GM Counter Tube X Gamma Radiation Detector 0.01μSv/h~1Sv/h Portable Radiation Dose Rate Monitor

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	FJ-310A

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Packaging Details:	Carton packing box
Delivery Time:	7-10 working days after receipt of your payment
Payment Terms:	T/T,Paypal
Supply Ability:	10sets/Month

Contact Now

FJ-310A Dual GM Counter Tube X Gamma Radiation Detector 0.01μSv/h~1Sv/h Portable Radiation Dose Rate Monitor

Description

Probe:	Dual GM Counter Tube	Measuring Range:	0.01μSv/h ~ 1Sv/h
Radiation Type:	X, γ	Sensitivity:	≥3000CPM
Measurement Unit:	USv Sv Switch At Will	Energy Response:	30keV ~ 4MeV, ±20%
Energy Response Error:	≤±15% Dose Equivalent Error: ≤±30%
Highlight:	dual GM counter radiation detector , portable gamma radiation monitor , radiation dose rate meter

FJ-310A Dual GM Counter Tube X Gamma Radiation Detector 0.01μSv/h~1Sv/h Portable Radiation Dose Rate Monitor

FJ-310A protection level X and γ radiation measuring instrument is mainly used for accurate and rapid measurement of X, γ and β radiation. The instrument is convenient to carry and easy to operate. The instrument adopts dual GM counter tube, which automatically switches the measurement of high and low range, and can alarm normally even when the staff encounters a large dose. This instrument can be used for environmental protection departments to detect environmental background conditions, radiation detection near medical ray equipment, non-destructive testing (i.e., X-ray detection) equipment whether there is radiation leakage, nuclear power plant near the residential environment background measurement. The instrument implementation standard is HJ 1157-2021 "Technical Specification for Measurement of Environmental Gamma Radiation Dose Rate".

Technical parameters

Radiation type	X, γ
Probe	dual GM counter tube
Measurement unit	uSv Sv Switch at will
Measuring range	0.01μSv/h ~ 1Sv/h
Sensitivity	≥3000CPM,High and low range automatic switching
Cumulative dose	1000K
Energy response	30keV ~ 4MeV, ±20%
Energy response error	≤±15% Dose equivalent error: ≤±30% angular response ≤±15% (0 ~ 180°), relative inherent error ≤±10% (137Cs), repeatability ≤1%, fluctuation error ≤1%
Power supply	Four 1.5V batteries
Power rate	350mW
Mechanical dimension & Weight	length 200mm× height 130mm× thickness 100mm,1000g
Temperature and humidity characteristics	-10℃ ~ +50℃, RH95%(35℃)

◆ Alarm threshold can be set at will, exceeding the threshold sound and light alarm

◆ Managers can calibrate the instrument by modifying the scale factor

◆ Large screen display, backlight, manual switch

FJ-310A Dual GM Counter Tube X Gamma Radiation Detector 0.01μSv/h~1Sv/h Portable Radiation Dose Rate Monitor
