HR-150/45DX Touch Screen Rockwell Hardness Tester
Main Description:
HR-150/45DX Rockwell Hardness Tester sing the large screen touch screen display, the operation panel adopts the menu structure, which has good reliability, operability and intuitive..
1.2including 15 kinds of Rockwell scale.
HRA,HRB,HRC,HRD,HRE,HRF,HRG,HRH,HRK,HRL,HRM,HRP,HRR,HRS,HRV；
The hardness tester can be set up to measure both rockwell hardness and superficial rockwell, or set as to measure either rockwell or superficial rockwell. When under rockwell and superficial rockwell (both scales are available), the tester can be used to test the hardness of plastic, just make sure the right scale is chosen. The set-up can be customized.
1.3 Boot and can be use,no need to install weights, without installation and debugging; electric loading, closed loop control;when select hardness scale , prompt that the choice of indenter; automatically applying the initial load and the primary load; high, medium and low three sections hardness value is automatically corrected; test force automatic correction,The accuracy of the test force is increased by an order of magnitude;set a password to protect setup parameters;More sample and test information;U disk measurement data is saved as EXCEL format for easy editing and processing; modular design, easy maintenance.
1.4 performance standards:GB/T230.1-2009.1,GB/T230.2-2009,JJG112-2013
Technical Specifications:
| Initial test force |
Rockwell:10kgf (98.07N) superficial Rockwell:3kgf(29.4N) tolerance: ±2.0% |
| Total test force: |
Rockwell: 60kgf (588.4N),100kgf (980.7N),150kgf (1471N) Tolerance: ±1.0%
superficial Rockwell: 15kgf(147.1N),30kgf (294.2N),45kgf (441.3N)
Tolerance: ±1.0% |
| Power source |
AC220V±5%,50~60Hz |
| Time delayed control |
1~60s adjustable |
| Max height of specimen |
215mm |
| The Distance from the Indenter Cener to the Instrument Body |
200mm |
| Total size |
(L×W×H)560×210×820(mm) |
| Total weight |
80kg |
The Scales, Indenters, Test Force and Application Fields of the Rockwell Hardness Tester (Table 1)
Table.1
|
Scales
|
Indenter
|
Initial test force
|
Total test force
|
Applications
|
|
HRA
|
Diamond indenter
|
98.07 N
(10kg)
|
60kgf(588.4N)
|
Hard alloy, carbide surface quenched steel, carburized steel plate(sheet)
|
|
HRD
|
100kgf(980.7N)
|
Steel sheet, surface quenched steel
|
|
HRC
|
150kgf(1471N)
|
Quenched steel tempered steel hard cast iron
|
|
HRF
|
Ball indenter φ1.5875mm(1/16 inch)
|
60kgf(588.4N)
|
Cast iron aluminum magnesium alloy bearing alloy annealed copper alloy mild steel sheet
|
|
HRB
|
100kgf(980.7N)
|
Mild steel aluminum alloy copper alloy malleable cast iron annealed steel
|
|
HRG
|
150kgf(1471N)
|
Phosphoresced bronze beryllium bronze malleable cast iron
|
|
HRH
|
Ball indenter φ3.175mm (1/8 inch)
|
60kgf(588.4N)
|
Aluminum zinc lead etc.
|
|
HRE
|
100kgf(980.7N)
|
Bearing alloy tin hard plastics and other soft materials
|
|
HRK
|
150kgf(1471N)
|
|
HRL
|
Ball indenter φ6.35mm (1/4 inch)
|
60kgf(588.4N)
|
hard plastics,hard rubber,Aluminum,surname,copper,Mild steel,plastic resin, fricative materials
|
|
HRM
|
100kgf(980.7N)
|
|
HRP
|
150kgf(1471N)
|
|
HRR
|
Ball indenter φ12.7mm (1/2 inch)
|
60kgf(588.4N)
|
|
HRS
|
100kgf(980.7N)
|
|
HRV
|
150kgf(1471N)
|

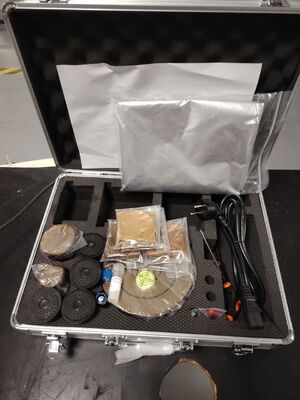

Accessories(Packing list)
|
NO.
|
Name of Commodity (Standard)
|
Quantity
|
|
1
|
Diamond Rockwell Indenter
|
1
|
|
2
|
φ1.5875mm Ball Indenter
|
1
|
|
3
|
Testing Table (Big, Medium, “V”)
|
3 in total
|
|
4
|
Standard Rockwell Hardness Block
|
|
|
5
|
HRB
|
1
|
|
6
|
HRC(High, low)
|
1 each
|
|
7
|
HR15N,HR30N,HR30T
|
1 each
|
|
8
|
Fuse 2A
|
2
|
|
9
|
Power Cable
|
1
|
|
10
|
Plastic Anti-dust Bag
|
1
|
|
11
|
Instruction Manual
|
1
|
|
12
|
USB flash disk
|
1
|
|
13
|
Touch pen
|
1
|
