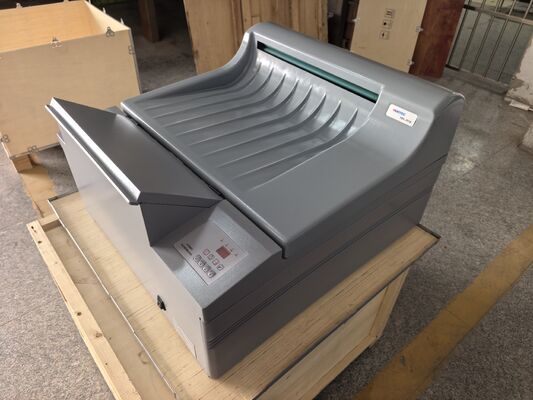

HDL-P17B Fully Automatic X-ray Film Processor Anti-jam Adjustable Film Bridge NDT Radiographic Film Developing Machine

HDL-P17B Fully Automatic X-ray Film Processor Anti-jam Adjustable Film Bridge NDT Radiographic Film Developing Machine
HDL-P17B Fully Automatic X-ray Film Processor Anti-jam Adjustable Film Bridge NDT Radiographic Film Developing Machine HDL-P17B Fully Automatic X-ray Film Processor Anti-jam Adjustable Film Bridge NDT Radiographic Film Developing Machine

Large Image :  HDL-P17B Fully Automatic X-ray Film Processor Anti-jam Adjustable Film Bridge NDT Radiographic Film Developing Machine

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: CE
Model Number: HDL-P14B
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Packaging Details: Carton packing box
Delivery Time: 7-10 working days after receipt of your payment
Payment Terms: T/T,Paypal
Supply Ability: 10sets/Month
Contact Now

HDL-P17B Fully Automatic X-ray Film Processor Anti-jam Adjustable Film Bridge NDT Radiographic Film Developing Machine

Description
Film Size: Min. 60×100 Mm; Max. 430×2000 Mm Developing Time: 90–210 S (Feed Films One By One With Approx. 30 S Interval)
Processing Cycle: 6–14 Min, Adjustable At 1-minute Intervals Processing Capacity: 12–25 Pieces/hour (356×432 Mm Film) 30–120 Pieces/hour (80×300 Mm Film)
Chemical Temperature: Developing: 20–40 °C; Fixing: 20–40 °C; Drying: 20–70 °C Washing Water Temperature: Ambient Temperature (5–25 °C)
Tank Capacity: Developing 8.5 L, Fixing 8.5 L, Washing 8.5 L
Highlight:

Fully automatic X-ray film processor

,

Anti-jam radiographic film developing machine

,

Adjustable film bridge NDT equipment

HDL-P17B Fully Automatic X-ray Film Processor Anti-jam Adjustable Film Bridge NDT Radiographic Film Developing Machine


Outstanding Performance:

Densely arranged roller assemblies ensure smooth conveyance of films of all sizes.

Timed automatic operation reduces crystal deposition on roller surfaces and effectively activates the liquid circulation system.

Direction-adjustable film bridge completely eliminates film jamming.

Roller assemblies with adjustable spacing prevent indentations on films with different base materials.

Special tapered drying air duct system delivers uniform airflow on both sides of films to avoid water stains.

Microcomputer program control ensures stable and reliable performance.

Large digital display panel with concise, elegant appearance integrates all functions. You can retrieve, view and adjust all data with a simple tap; all parameters are clearly displayed for easy operation.

Stainless steel film inlet plate: prevents film scratches
Robust and durable machine body; densely arranged roller assemblies are compatible with all types of industrial radiographic films.


Technical Data

Film Size Min. 60×100 mm; Max. 430×2000 mm
Developing Time 90–210 s (Feed films one by one with approx. 30 s interval)
Processing Cycle 6–14 min, adjustable at 1-minute intervals
Processing Capacity 12–25 pieces/hour (356×432 mm film) 30–120 pieces/hour (80×300 mm film)
Chemical Temperature Developing: 20–40 °C; Fixing: 20–40 °C; Drying: 20–70 °C
Washing Water Temperature Ambient temperature (5–25 °C)
Replenishment Volume Auto / Manual mode, 50–500 ml per square meter of film
Tank Capacity Developing 8.5 L, Fixing 8.5 L, Washing 8.5 L
Water Consumption  2 L/min during processing
Net Weight 56 kg
Power Supply 220V / 50Hz / 10A
Overall Dimension L760 × W700 × H420 mm (H1020 mm with stand)

HDL-P17B Fully Automatic X-ray Film Processor Anti-jam Adjustable Film Bridge NDT Radiographic Film Developing Machine

HDL-P17B Fully Automatic X-ray Film Processor Anti-jam Adjustable Film Bridge NDT Radiographic Film Developing Machine

HDL-P17B Fully Automatic X-ray Film Processor Anti-jam Adjustable Film Bridge NDT Radiographic Film Developing Machine

HDL-P17B Fully Automatic X-ray Film Processor Anti-jam Adjustable Film Bridge NDT Radiographic Film Developing Machine
