HXRF-800 Handheld XRF Soil Heavy Metal Detector with From Mg to U Analysis Range Lightweight 1.5Kg and -10°C~50°C Operating Temperature

HXRF-800 Handheld XRF Soil Heavy Metal Detector with From Mg to U Analysis Range Lightweight 1.5Kg and -10°C~50°C Operating Temperature
HXRF-800 Handheld XRF Soil Heavy Metal Detector with From Mg to U Analysis Range Lightweight 1.5Kg and -10°C~50°C Operating Temperature HXRF-800 Handheld XRF Soil Heavy Metal Detector with From Mg to U Analysis Range Lightweight 1.5Kg and -10°C~50°C Operating Temperature

Large Image :  HXRF-800 Handheld XRF Soil Heavy Metal Detector with From Mg to U Analysis Range Lightweight 1.5Kg and -10°C~50°C Operating Temperature

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: HXRF-800
Contact Now

HXRF-800 Handheld XRF Soil Heavy Metal Detector with From Mg to U Analysis Range Lightweight 1.5Kg and -10°C~50°C Operating Temperature

Description
Analysis Element Range: From Mg To U

HXRF-800 Handheld XRF Soil Heavy Metal Detector
Application Fields

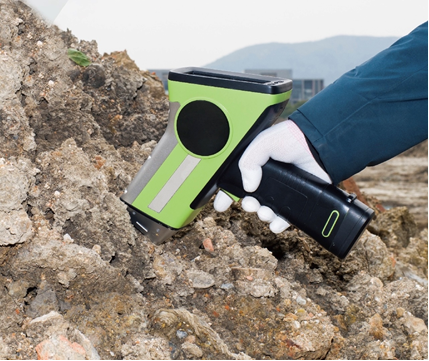

  • Investigation of Soil Pollution Sites
  • Soil survey and environmental assessment
  • Emergency detection of soil pollution
Technical Specifications
Usage Environment Temperature: -10°C~50°C; Humidity: 0-90% (20°C); Altitude: less than 5000m
Size and Weight Size: 275mm×245mm×82mm; Weight: 1.5Kg
Analysis Element Range From Mg to U
Detector Peltier effect cooled Fast-SDD detector
X-ray Source Ag targets, tube voltage: 0~50kV, tube current: 0~200μA
Microcomputer System Industrial grade 4-core 1.8GHz processor; 2GB RAM, 24GB data storage (stores approximately 300,000 spectral data); Built-in 4.5 inch high-definition backlight touch integrated color display
Operating System Linux
USB Interface Two USB ports for connecting to U disk and PC
Wireless Interface Built-in WiFi and Bluetooth for connecting to NET, PC, Android phone, or Bluetooth printer
Remote Control Equipped with WinGUI software and Android APP for data synchronization and sharing with instruments
Sample Camera HD camera for taking sample photos
Barometric Correction Built-in automatic air pressure correction
Analysis Software NDT element analysis software with multiple analysis modes (alloy analysis, ore analysis, catalyst detection, precious metal analysis); Users can create custom calibration curves; Built-in alloy grade library of 500+ types; Customizable report content; Results automatically displayed as ppm or %
Operating Language English, customizable for multiple languages
Radiation Safety Password protection; Infrared sensor automatically identifies samples and prohibits X-ray excitation during aerial testing; Work interface X-ray radiation < 0.15 M Sv/h
Battery Battery power display; Single battery life approximately 8 hours; Hot plug capability for direct battery replacement without shutdown
Transportation Safety ISTA 3A packaging transportation drop, vibration, and impact test standards
Environmental Adaptability High and low temperature test standard, meeting IP54 protection grade
Package Contents
  • Special protection box for instrument
  • Lithium battery × 2: 6600mAH
  • Charging adapter × 1
  • USB Cable × 1
  • Flash disk × 1: 32GB
  • Test window film × 5
  • Wristband × 1
