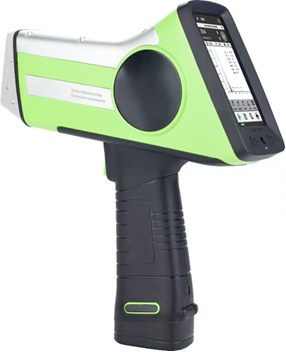

HXRF-800 Handheld XRF Soil Heavy Metal Detector with Mg to U Analysis Range and Fast-SDD Detector

HXRF-800 Handheld XRF Soil Heavy Metal Detector with Mg to U Analysis Range and Fast-SDD Detector
HXRF-800 Handheld XRF Soil Heavy Metal Detector with Mg to U Analysis Range and Fast-SDD Detector HXRF-800 Handheld XRF Soil Heavy Metal Detector with Mg to U Analysis Range and Fast-SDD Detector

Large Image :  HXRF-800 Handheld XRF Soil Heavy Metal Detector with Mg to U Analysis Range and Fast-SDD Detector

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: HXRF-800
Contact Now

HXRF-800 Handheld XRF Soil Heavy Metal Detector with Mg to U Analysis Range and Fast-SDD Detector

Description
Usage Environment: Temperature: -10°C~50°C; Humidity: 0-90% (20°C); Altitude: Less Than 5000m Analysis Element Range: From Mg To U
Detector: Peltier Effect Cooled Fast-SDD Detector

HXRF-800 Handheld XRF Soil Heavy Metal Detector
The HXRF-800 is a professional handheld XRF analyzer designed specifically for soil heavy metal detection and environmental assessment applications.
Application Fields
  • Investigation of Soil Pollution Sites
  • Soil survey and environmental assessment
  • Emergency detection of soil pollution
Technical Specifications
Usage Environment Temperature: -10°C~50°C; Humidity: 0-90% (20°C); Altitude: less than 5000m
Size and Weight Size: 275mm*245mm*82mm; Weight: 1.5Kg
Analysis Element Range From Mg to U
Detector Peltier effect cooled Fast-SDD detector
X-ray Source Ag targets, tube voltage: 0~50kV, tube current: 0~200μA
Microcomputer System Industrial grade 4-core 1.8GHz processor; 2GB RAM, 24GB data storage (stores approximately 300,000 spectral data); Built-in 4.5 inch high-definition backlight touch integrated color display
Operating System Linux
USB Interface Two USB ports for U disk and PC connection
Wireless Interface Built-in WiFi and Bluetooth for NET, PC, Android phone, or Bluetooth printer connectivity
Remote Control Equipped with WinGUI software and Android APP for data synchronization and sharing
Sample Camera HD camera for sample photography
Barometric Correction Built-in automatic air pressure correction
Analysis Software NDT element analysis software with multiple analysis modes (alloy, ore, catalyst, precious metal); User-calibrated curves; Built-in alloy grade library (500+ types); Customizable reports; Results displayed as ppm or %
Operating Language English, customizable for multiple languages
Radiation Safety Password protection; Infrared sensor for sample identification; Automatic X-ray prohibition during aerial testing; Work interface radiation < 0.15 M Sv/h

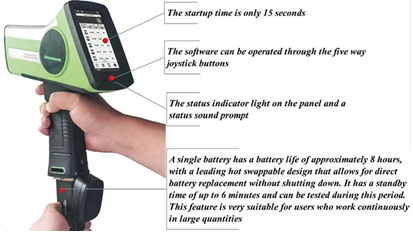

Battery Battery power display; Single battery life: ~8 hours; Hot plug capability
Transportation Safety ISTA 3A packaging transportation standards (drop, vibration, impact)
Environmental Adaptability High/low temperature test standards; IP54 protection grade
Packaging & Accessories
Packaging: Special protection box for instrument

Accessories Included:
  • Lithium battery * 2: 6600mAH
  • Charging adapter * 1
  • USB Cable * 1
  • Flash disk * 1: 32GB
  • Test window film * 5
  • Wristband * 1
