X-ray film processor HDL-P17B with adjustable processing cycle, wide film size compatibility, and high processing capacity

X-ray film processor HDL-P17B with adjustable processing cycle, wide film size compatibility, and high processing capacity
X-ray film processor HDL-P17B with adjustable processing cycle, wide film size compatibility, and high processing capacity X-ray film processor HDL-P17B with adjustable processing cycle, wide film size compatibility, and high processing capacity

Large Image :  X-ray film processor HDL-P17B with adjustable processing cycle, wide film size compatibility, and high processing capacity

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: HDL-P17B
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Contact Now

X-ray film processor HDL-P17B with adjustable processing cycle, wide film size compatibility, and high processing capacity

Description
Processing Cycle: 6–14 Min, Adjustable At 1-minute Intervals

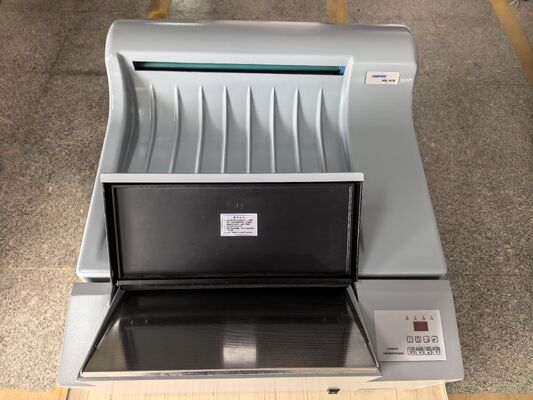

X-ray Film Processor HDL-P17B
Product Overview

The HDL-P17B X-ray Film Processor delivers exceptional performance with advanced features designed for industrial radiographic applications. Engineered for reliability and efficiency, this processor handles films of all sizes with precision and care.

Key Features
  • Densely arranged roller assemblies ensure smooth conveyance of films of all sizes
  • Timed automatic operation reduces crystal deposition and effectively activates liquid circulation
  • Direction-adjustable film bridge completely eliminates film jamming
  • Roller assemblies with adjustable spacing prevent indentations on various film base materials
  • Special tapered drying air duct system delivers uniform airflow to avoid water stains
  • Microcomputer program control ensures stable and reliable performance
  • Large digital display panel with intuitive touch interface for easy parameter adjustment
  • Stainless steel film inlet plate prevents film scratches
  • Robust and durable construction compatible with all types of industrial radiographic films
Technical Specifications
Specification Details
Film Size Min. 60×100 mm; Max. 430×2000 mm
Developing Time 90-210 seconds (Feed films one by one with approx. 30 second interval)
Processing Cycle 6-14 minutes, adjustable at 1-minute intervals
Processing Capacity 12-25 pieces/hour (356×432 mm film)
30-120 pieces/hour (80×300 mm film)
Chemical Temperature Developing: 20-40°C; Fixing: 20-40°C; Drying: 20-70°C
Washing Water Temperature Ambient temperature (5-25°C)
Replenishment Volume Auto / Manual mode, 50-500 ml per square meter of film
Tank Capacity Developing 8.5 L, Fixing 8.5 L, Washing 8.5 L
Water Consumption 2 L/min during processing
Net Weight 56 kg
Power Supply 220V / 50Hz / 10A
Overall Dimension L760 × W700 × H420 mm (H1020 mm with stand)
Professional Grade Performance: The HDL-P17B combines precision engineering with user-friendly operation, making it an ideal choice for industrial radiographic applications requiring consistent, high-quality results.
