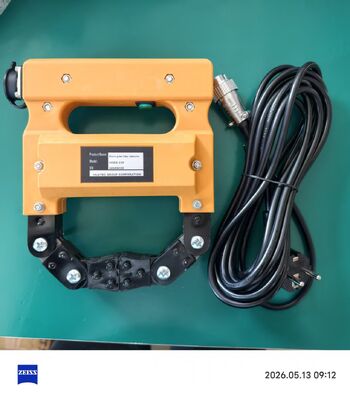

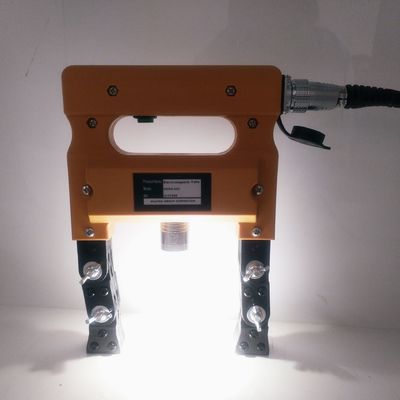

Portable Handheld AC/DC Magnetized Power Supply Compact and Lightweight Magnetic Particle Flaw Detector

Large Image : Portable Handheld AC/DC Magnetized Power Supply Compact and Lightweight Magnetic Particle Flaw Detector

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	ISO, CE, GOST
Model Number:	HCDX-220

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS

Contact Now

Portable Handheld AC/DC Magnetized Power Supply Compact and Lightweight Magnetic Particle Flaw Detector

Description

Charging Time:

8~15h

Highlight:

Portable Handheld Flaw Detector

AC/DC Magnetized Power Supply Flaw Detector

Compact and Lightweight Magnetic Particle Flaw Detector

HCDX-220AC/HCDX-220DC Handy Yoke Flaw Detector

Portable handheld equipment for magnetic particle inspection. This magnetic particle flaw detector features compact structure, reasonable layout, compact size, light weight, and easy portability.

Applications

Suitable for magnetic particle inspection of surface and near surface defects of all types of iron and steel structural parts, boilers, pressure vessels, pressure pipelines, and various welded ferromagnetic materials in electric power, metallurgy, petrochemical, machinery and other industries. Particularly ideal for weld seam inspection of ship hulls, steel structures at height, and internal operations of pressure vessels.

Complies with JB/T7411-2012 "Technical Conditions of Electromagnetic Yoke Flaw Detector" standard and ASTM E1444-05 Standard Practice for Magnetic Particle Testing.

Product Features

Compact size, handy and lightweight with robust construction for operator safety
One-piece forming with comfortable hand feel
Two power supply modes: single-phase AC power supply (straight plug mode) and DC magnetization power supply (DC battery pack)
Strong and rugged construction for continuous inspection operations

Technical Parameters

Model Item	HCDX-220AC	HCDX-220DC
Power	/	220V 50Hz 12V
Power Source	220V 50Hz	220V 50Hz
Rechargeable Battery	/	MF12-7.2AH
Working Current	AC 1.4A	AC 1.4A DC 1.7A
Charging Time	/	8~15h
Battery Working Time	/	6 hours up
Testing Time	100sec on 100sec off	100sec on 100sec off
Pole Distance	0~200mm	0~200mm
Lifting Capacity AC	>5.5kg	>5.5kg
Lifting Capacity DC	/	>26kg
Yoke Weight Probe	3.1kg	3.1kg
Yoke Weight Battery Pack	/	2.9kg
Size (mm) Probe	208×52×146	208×52×146
Size (mm) Battery Pack	/	160×70×100
Size (mm) Charger	/	75×50×40
