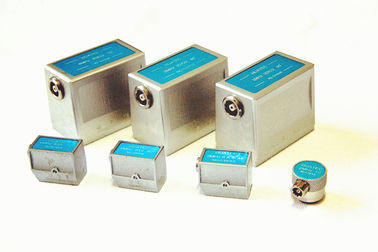

Ultrasonic Angle Beam Probe for welding inspection With 2MHz 4MHz 8 x 9 mm

Ultrasonic Angle Beam Probe for welding inspection With 2MHz  4MHz  8 x 9 mm
Ultrasonic Angle Beam Probe for welding inspection With 2MHz  4MHz  8 x 9 mm Ultrasonic Angle Beam Probe for welding inspection With 2MHz  4MHz  8 x 9 mm Ultrasonic Angle Beam Probe for welding inspection With 2MHz  4MHz  8 x 9 mm Ultrasonic Angle Beam Probe for welding inspection With 2MHz  4MHz  8 x 9 mm Ultrasonic Angle Beam Probe for welding inspection With 2MHz  4MHz  8 x 9 mm Ultrasonic Angle Beam Probe for welding inspection With 2MHz  4MHz  8 x 9 mm Ultrasonic Angle Beam Probe for welding inspection With 2MHz  4MHz  8 x 9 mm Ultrasonic Angle Beam Probe for welding inspection With 2MHz  4MHz  8 x 9 mm Ultrasonic Angle Beam Probe for welding inspection With 2MHz  4MHz  8 x 9 mm Ultrasonic Angle Beam Probe for welding inspection With 2MHz  4MHz  8 x 9 mm Ultrasonic Angle Beam Probe for welding inspection With 2MHz  4MHz  8 x 9 mm Ultrasonic Angle Beam Probe for welding inspection With 2MHz  4MHz  8 x 9 mm Ultrasonic Angle Beam Probe for welding inspection With 2MHz  4MHz  8 x 9 mm

Large Image :  Ultrasonic Angle Beam Probe for welding inspection With 2MHz 4MHz 8 x 9 mm

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: CE, ISO
Model Number: HFD
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Packaging Details: Carton
Delivery Time: 3-7 working days
Payment Terms: TT, L/C, Western Union
Supply Ability: 1000 pcs per month

Ultrasonic Angle Beam Probe for welding inspection With 2MHz 4MHz 8 x 9 mm

Description
Probe Type: Angle Probe Specification: 2M
Transducer Element* Diameter: 8x9mm Frequency: 2MHz 4MHz
High Light:

ultrasonic testing probes

,

ndt probes

Ultrasonic Angle Beam Probe With 2MHz 4MHz 8x9 mm



We can provide customers with more than 500 kinds of ultrasonic flaw detection probes,angle probes,variable angle probes,four-crystal probes,immersion focusing probes and othe conventinal probes.



Character:

(1) Common welding inspection.
(2) Pipe casting, pressure wessels, storage tank.
(3) Turbine blades and pressure vessels.
(4) Wheel axle, forged piece and casting.
(5) Railway wheels and railway rail.



Funtion:

(1) Probes connector for national standard and American standard is mostly BNC (Q9), microdot(L5)connector (lateral direction).

(2) Probes connector for Europe standard is mostly LEMO-00(C5),LEMO-1(C9)connector(sidepiece or top direction).

Ultrasonic Angle Beam Probe for welding inspection With 2MHz  4MHz  8 x 9 mm 0

Specification:

Probe type Designation Angle Transducer element size [mm] Frequency [MHz]

angle probe



HFD 9x8-2M-35 35° 8x9 2 MHz
HFD 9x8-2M-45 45° 8x9 2 MHz
HFD 9x8-2M-60 60° 8x9 2 MHz
HFD 9x8-2M-70 70° 8x9 2 MHz
HFD 9x8-2M-80 80° 8x9 2 MHz
HFD 9x8-4M-35 35° 8x9 4 MHz
HFD 9x8-4M-45 45° 8x9 4 MHz
HFD 9x8-4M-60 60° 8x9 4 MHz
HFD 9x8-4M-70 70° 8x9 4 MHz
HFD 9x8-4M-80 80° 8x9 4 MHz
HFD 22x20-2M-35 35° 20x22 2 MHz
HFD 22x20-2M-45 45° 20x22 2 MHz
HFD 22x20-2M-60 60° 20x22 2 MHz
HFD 22x20-2M-70 70° 20x22 2 MHz
HFD 22x20-2M-80 80° 20x22 2 MHz
HFD 22x20-4M-35 35° 20x22 4 MHz
HFD 22x20-4M-45 45° 20x22 4 MHz
HFD 22x20-4M-60 60° 20x22 4 MHz
HFD 22x20-4M-70 70° 20x22 4 MHz
HFD 22x20-4M-80 80° 20x22 4 MHz



Testing Curve Report for a Transducers (optional by order)

Ultrasonic Angle Beam Probe for welding inspection With 2MHz  4MHz  8 x 9 mm 1



Probe can be OEM as customer request, with different size, frequency, LEMO BNC SUBVIS connector
