ASTM-D2457 DIN67530 Surface Objects Gloss Meter HGM-B60S , Small Measuring Hole 60

ASTM-D2457 DIN67530 Surface Objects Gloss Meter HGM-B60S , Small Measuring Hole 60
ASTM-D2457 DIN67530 Surface Objects Gloss Meter HGM-B60S , Small Measuring Hole 60

Large Image :  ASTM-D2457 DIN67530 Surface Objects Gloss Meter HGM-B60S , Small Measuring Hole 60

Product Details:
Place of Origin: CHINA
Brand Name: HUATEC
Certification: ISO CE
Model Number: HGM-B60S
Payment & Shipping Terms:
Minimum Order Quantity: 1
Payment Terms: T/T, Western Union
Supply Ability: 500

ASTM-D2457 DIN67530 Surface Objects Gloss Meter HGM-B60S , Small Measuring Hole 60

Description
Measuring Range: 0.0-199.9Gs Readout Error: <1.2Gs
Stability: 0.4 Gs/30minutes Measureing Window Size: 1.5*3mm
Size: 114×35×65mm Working Voltage: 1.5V
High Light:

ndt testing equipment

,

ndt inspection tools


small measuring hole 60 can measure a variety of surface objects Gloss Meter HGM-B60S


Detailed Product Description

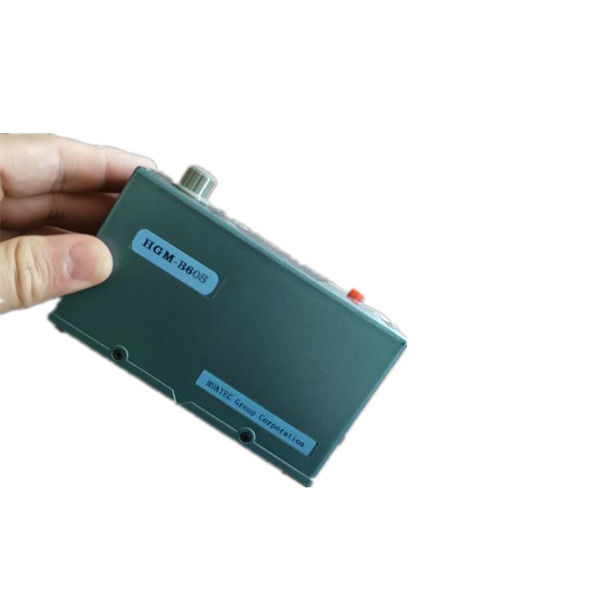

Gloss meter Model HGM-B60S

Standard

International standard ISO2813, ASTM-D2457, DIN67530 and China standard GB9754, GB9966, GB8807.

The technical parameters follows China metrology standard JJG696-2002.



Application

1. Measurement of Paint and Dope surface gloss on Car, Electronic appliance and Musical instrument industry.
2. Measurement of floor board, marble, granite and ceramic tile gloss on architecture, decoration industry.
3. Measurement of printing ink and paper on Printing and Casing industry.
4. Measurement of the others need to be measured.
5. Hard drawn aluminum alloys



Features

1. Small and light, real easy to be carried and used.
2. One 1.5 mignon alkaline Battery can be used for almost 60 hours and 10000 reading.
3. High stability
4. Long-term stable light source needs no replacing for ever.
5. Quartz crystal standard board, no excursion.



Parameter

1.Measuring range 0.0-199.9Gs

2.Readout error <1.2Gs

3.Stability 0.4 Gs/30minutes

4.Measureing window size 1.5mm (short axle) ×3mm( long axle)

5.Size 114×35×65mm

6.Working voltage 1.5V

ASTM-D2457 DIN67530 Surface Objects Gloss Meter HGM-B60S , Small Measuring Hole 60 0
