Vibration Calibrator Calibrate Acceleration Transducer Velocity Transducer Proximity Transducer
HUATEC HG-5010 Vibration Calibrator can be used to calibrate many kinds of vibration transducers, such as acceleration transducer, velocity transducers and proximity transducer system and also to calibrate the vibration measuring instruments and vibration monitoring systems and data collecting systems compose of the said transducers. Standard sine signals with eight kinds of frequency, i.e. 10, 20, 40, 80, 160, 320, 640 and 1280 Hz can be generated from the calibrator. The amplitude of the three kinds of vibration output, i.e., acceleration, velocity and displacement, can be changed through potentiometers and shown on digital displays. They can be used in either horizontal or vertical direction to calibrate horizontal or vertical transducers.
HUATEC HG-5010 Vibration Calibrator combines sine signal generator, power amplifier, standard transducer and the vibrostand in one and features a smaller volume, high accuracy and easy operation. It can be used either in laboratory or on site.
Specifications:
Frequency
10, 20, 40, 80, 160, 320, 640, 1280Hz +0.01%
Unit
Acceleration: m/s2 (PEAK)
Velocity: mm/s (RMS)
Displacement: um (PK-PK)
Amplitude accuracy
Acceleration(@30m/s2 pk)
40Hz to 320Hz + 0.3dB + 1digit
20Hz to 640Hz + 0.5dB +1digit
Velocity ( @25mm/sec pk)
40Hz to 320Hz +0.5dB +1digit
Displacement(@10μm pk-pk, 80Hz)
40Hz to 320Hz + 0.5dB + 1digit
Proximity probe linearity
Prode: 5mm and 8mm probes
Range: 0~4.0mm
Display
3 1/2 digit display for acceleration, velocity or displacement
Maximum vibration amplitude and maximum load
Because of the vibrostand used in HUATEC HG-5010 Vibration Calibrator is rather small, during the calibration of transducers of different weight under different frequencies the output amplitude of the calibrators are also different. Maximum vibration amplitude and maximum load are related to the maximum acceleration. maximum velocity and maximum displacement output generated from the calibrator under a certain frequency and with a certain weight of the transducer to be calibrated. The specific figures can be seen in the following table.
|
Wt
Freq |
<100g | <250g | <650g | ||||||
| a(m/S2) | v(mm/S) | d(μm) | a(m/S2) | v(mm/S) | d(μm) | a(m/S2) | v(mm/S) | d(μm) | |
| 10Hz | 2.5 | 28 | 1300 | 3.5 | 40 | 1800 | 4 | 45 | 2000 |
| 20Hz | 15 | 85 | 1900 | 10 | 60 | 1300 | 5 | 28 | 640 |
| 40Hz | 60 | 170 | 2000 | 35 | 100 | 1100 | 12 | 35 | 380 |
| 80Hz | 100 | 141 | 800 | 40 | 60 | 320 | 14 | 20 | 110 |
| 160Hz | 75 | 53 | 150 | 35 | 25 | 70 | 12 | 8.5 | 24 |
| 320Hz | 50 | 18 | 25 | 30 | 10 | 15 | 10 | 3.5 | 5 |
| 640Hz | 30 | 5 | 3 | 20 | 3.5 | 2 | 6 | 1 | * |
| 1280Hz | 23 | 2 | * | 10 | 0.9 | * | 5 | 0.4 | * |

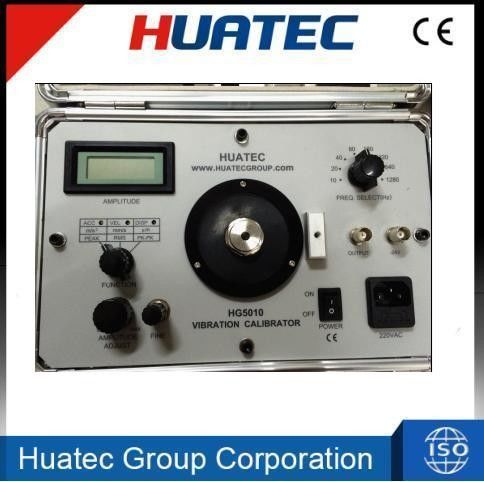

The control panel of HUATEC HG-5010 Vibration Calibrator is shown as following:
1 Vibration amplitude output display
Showing the amplitude of the different vibration signal output of the calibrator
2 Calibration potentiometer
3 Function selecting switch Shifting the output of the calibrator to acceleration, velocity or displacement
4 Potentiometer for adjusting the output amplitude
Adjusting the potentiometer to change the output vibration amplitude
5 Adjusting the the output vibration amplitude slowly
6 The table for fixing the transducer to be calibrated
7 The thread hole for fixing the stand of proximity probe
During the calibration of proximity probe, the stand of the transducer is fixed on
the control panel through this thread hole.
8 Power switch 220 VAC
9 Socket for 220 V AC power input
Used for connecting 220 V AC power.
10. Socket for power output
For monitoring the wave shape of the output signal of the power amplifier of the
calibrator.
11 Output socket of – 24 V voltage
Providing power at – 24 V for proximitor during the calibration of proximity probe.
12 Frequency selecting switch
For selecting the frequency of the output signal
Size: 280 x 180 x 250(mm)
Weight: 20lb
Temperature
Operation: 0oC to 50 oC
Storage: -20 oC to 70 oC
Humidity
90% non -condensing
