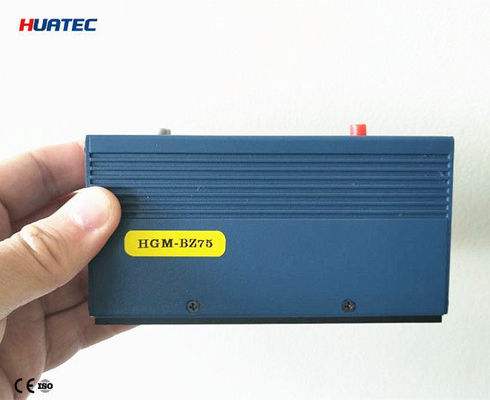

75 Degree HGM-BZ75 Paint Gloss Meter For Paper Testing

75 Degree HGM-BZ75 Paint Gloss Meter For Paper Testing
75 Degree HGM-BZ75 Paint Gloss Meter For Paper Testing
75 Degree HGM-BZ75 Paint Gloss Meter For Paper Testing 75 Degree HGM-BZ75 Paint Gloss Meter For Paper Testing 75 Degree HGM-BZ75 Paint Gloss Meter For Paper Testing

Large Image :  75 Degree HGM-BZ75 Paint Gloss Meter For Paper Testing

Product Details:
Place of Origin: China
Brand Name: Huatec
Certification: ISO,CE
Model Number: HGM-BZ75
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: in standard export carton
Delivery Time: 3-7 working days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 500 set per month

75 Degree HGM-BZ75 Paint Gloss Meter For Paper Testing

Test Range: 0.0-300.0(Gs) Test Accuracy: <1.2(Gs)
Stability: 0.4Gs/30min Test Caliber: 16×48(mm)rectangular
Size: 128×35×64 (mm) Power: 4.8V (Rechargeable Battery Inside)
High Light:

gloss meter 75 degree


75 degree paint gloss meter


HGM-BZ75 Paint Gloss Meter

High precision 75 degree Paper Gloss Meter HGM-BZ75 for paper testing



Gloss Meter Model HGM-BZ75 (75°intelligent )



International standard ISO-8254, TAPPI - T480, ASTM-C346, ASTM-D2457, DIN67530 and China standard GB8941.3

The technical parameters follows China metrology standard JJG696-2002.


BZ75 ° intelligent glossiness meter is follow ISO - 8254, TAPPI - T480, GB8941.3 standard manufacture high-precision, miniaturization, intelligent paper with glossiness plan, suitable for paper, etc, the paper is printed paper surface gloss surface lens to value measurement.



The technical parameters up to JJG 696 (First-level standards).
  1. test range:0.0-300.0(Gs)
  1. test accuracy:<1.2(Gs)
  1. stability:0.4Gs/30min
  1. test caliber:16×48(mm)rectangular
  1. size:128×35×64 (mm)
  1. power:4.8V (Rechargeable battery inside)



1. Small and light, real easy to be carried and used.
2. 4.8V Rechargeable battery can be used for almost 60 hours and 10000 reading.
3. High stability
4. Long-term stable light source needs no replacing forever.
5. Quartz crystal standard board, no excursion.

6. Single-chip microcomputer control circuit, the new keystrokes, light and portable, a single calibration, intelligent calibration record values


Use of equipment

Press the power switch in the measurement mode, apparatus on the sample, the samples showed that the numerical point of view at this time of the gloss value (Gs). When the "angle/ shift" button, switch different angle measurement, the corresponding point of display lights. Whether measured by that point, when measured value greater than 300.0 Gs, shows that "OVER" word.

When the electricity shortage Show "bAtt" words, at this time should be promptly charged with exclusive power rechargeable battery, charging devices plug into the mains socket on the side of charge, charging time in about four hours. Charging standards "⊕", charging the panel led by lit.



When standard equipment on board showed that the standard plate with the corresponding numerical point of difference is greater than the nominal value of 1.2 gloss units at the following methods should be calibrated:

And measuring window on the black velvet board, press the "load switch / zero setting" button, this shows that numerical 0.0.

Black glass plate instead of the standard black velvet boards, measuring instruments on the window, rather than pressing the "calibration / test" button to enter the set, and then display the "000" and the first "0" flashing. Rather than pressing the "angle / shift" key-flashing Move right, rather than pressing the "load switch / zero setting" key "flicker" of numerical change from 0-9-0 through the press "angle / shift" and "load switch / zero setting"key to making shows that numerical standards and black glass plate corresponding nominal value of the same, at this time rather than pressing the" calibration / test "button to complete the setup. And white ceramic standard equipment on board, show that numerical standards-and-white ceramic plate angle of the corresponding nominal value of the error should not exceed ± 1.2 gloss units, it should be considered standard plate dirt, and other issues. Which point of error of work, occupation which should be in work mode in accordance with the perspective of the above process of calibration. After the completion of the steps of the samples can be measured.



The equipment built four rechargeable batteries


Standard Delivery

Gloss meter 1pc
Instrument case 1pc
Standard board


A black board is used for the highlight calibration

A white board is used for the low light calibration

Battery charger 1pc
English instruction manual 1pc
Calibration certificate 1pc


HUATEC Gloss meter Reference angle for different application

angle Point of reference for (foreign) (China)








ISO-2813 GB9754


ASTM-D2457 GB8807

high gloss paint, ink, plastic.




TAPPI-T653 GB8941.1

high gloss stencil, cast coated paper.



ISO-2767 GB8941-2 surface of aluminum and aluminum oxide.

ASTM-C346 GB/T3295

ASTM-D2457 GB8807

pottery, ceramic, plastic, plastic film, Stone
45° JIS-E8741 pottery, ceramic, plastic, plastic film, Stone




ISO-2813 GB9754

ASTM-C584 GB9966



ASTM-D2457 GB8807

Mid-gloss paint, ink, plastics, ceramics, stone.





TAPPI-T480 GB8941.3

copperplate paper
