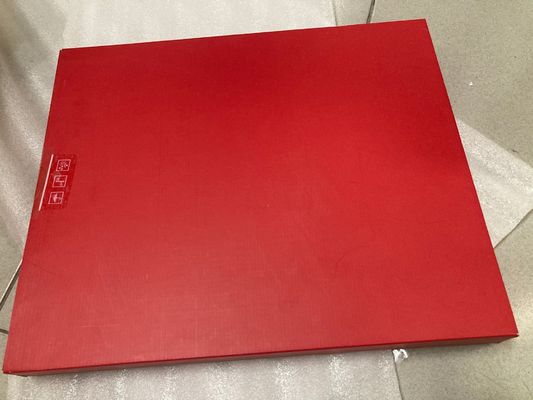

Huatec 356x432mm 14x17inch Industrial Radiographic Film

Huatec 356x432mm 14x17inch Industrial Radiographic Film
Huatec 356x432mm 14x17inch Industrial Radiographic Film Huatec 356x432mm 14x17inch Industrial Radiographic Film

Large Image :  Huatec 356x432mm 14x17inch Industrial Radiographic Film

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: D7 D4 Film
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Standard export package
Delivery Time: 1-4working days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 500Pcs

Huatec 356x432mm 14x17inch Industrial Radiographic Film

Best Storage Conditions: 10℃ ~ 23℃ Relative Humidity: 30% ~ 65%
Shelf Life: 30 Month Model: D4、D4-D、H4、LA400、D5、D5-D、 D7、D7-D、H7、H7-D
High Light:

huatec industrial radiographic film


14x17inch industrial radiographic film


356x432mm industrial radiographic film

Manual For Use Of HUATEC High Resolution And High Sensitivity Industrial Radiographic Film


Product name and model specification


Model Specification



356mm×432mm(14in.×17in.),305mm×381mm(12in.×15in.),260mm×360mm (10in. ×14in.),70mm×300mm,80mm×150mm,80mm×240mm,80mm×300mm,80mm×360mm, 100mm×356mm,195mm×275mm,70mm×200m,80mm×100m,80mm×200m

Other specifications and packing capacity can also be provided according to customer requirements.

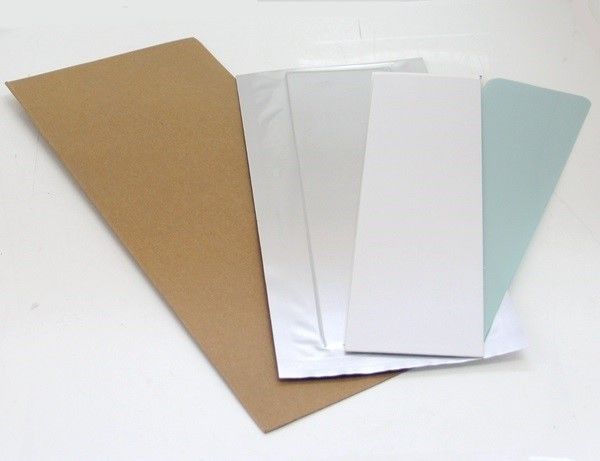

Huatec 356x432mm 14x17inch Industrial Radiographic Film 0


Features and uses


Industrial X-ray film is a kind of high resolution and high image resolution film which is widely used in nondestructive flaw detection. The film has high sensitivity, high contrast, high definition,


It can be directly or with lead sensitization screen for X or γ ray exposure. It is suitable for electronic components, synthetic materials, casting and casting, welding, etc.


NDT testing for shipbuilding, national defense and nuclear industry, aerospace and aviation industry, etc. Using blue polyester sheet base, two sides coated with emulsion layer, layer and


Protective layer. This film has rich layers, high image resolution and good definition. This film can be processed at room temperature, also can be processed by high temperature machine.


Features and uses



  GB/T19348.1 EN 584.1 ASTME 1815-08 ISO 11699-1
D4,D4-D,H4 C3 C3 C3
D5,D5-D C4 C4 C4
D7,LA400,D7-D,H7,H7-D C5 C5 C5


Product performance


Name of index unit   D4,D4-D H4 LA400 D5,D5-D D7,D7-D,H7,H7-D
Density of fog --    ≤0.10 ≤0.10 ≤0.10 ≤0.10 ≤0.12
Contrast factor “r” --    ≥4.0 ≥3.0 ≥3.2 ≥4.0 ≥3.5
ISO “S” --    ≥1.5 ≥1.0 ≥0.6 ≥1.5 ≥2.0
Alkali soluble time Minutes   ≥10
Scratch resistance in processing N   ≥0.8


Safety lighting and washing processing


The safety operating light in the darkroom of this film is a crimson safety light with a 15W bulb. When the film is used for unsealing, the lamp distance is generally above 1.2 meters. Cumulative illumination time


No more than 40 minutes. The exposed sample should be flushed within 2h. The washing process is shown in the table below.


Flush the way Other countries Temperature / ℃ Development time /min Fixed time /min Dry / ℃ transshipment

Manual D-19b 20±0.5 5±1 10 Natural drying 300
Machine wash G-30 29±1 1.5~2 2 45~55


Matters needing attention


1. The film stored at low temperature should be taken out 2 hours in advance before use, and placed at room temperature for more than 2 hours to ensure the temperature of the film and the use environment


The temperature balance is consistent, and then open the film packaging, in order to avoid the formation of water vapor on the surface of the film caused by the adhesion between the films and affect the film picture effect,


To ensure the normal use of film.


2. The film should be unsealed, loaded and rinsed under the safety lamp. The film should not be exposed for too long under the safety lamp


Contaminated film, film should be handled with care to avoid friction. After unsealing, the film should be used up as soon as possible, and the unused film should be sealed according to the original package.


HUATEC has always been adhering to the first concept of customer-oriented, the products we sell will be carefully checked before shipping and then delivered to your hands.If you have any product requirements, you can contact me.Looking forward to your order.WeChat:19520504939
