Pocket 9V Electronic Vibration Analyzer 10 HZ - 1KHz Temperature Instrument HG-6500 Series

Pocket 9V Electronic Vibration Analyzer 10 HZ - 1KHz Temperature Instrument HG-6500 Series
Pocket 9V Electronic Vibration Analyzer 10 HZ - 1KHz Temperature Instrument HG-6500 Series Pocket 9V Electronic Vibration Analyzer 10 HZ - 1KHz Temperature Instrument HG-6500 Series Pocket 9V Electronic Vibration Analyzer 10 HZ - 1KHz Temperature Instrument HG-6500 Series Pocket 9V Electronic Vibration Analyzer 10 HZ - 1KHz Temperature Instrument HG-6500 Series

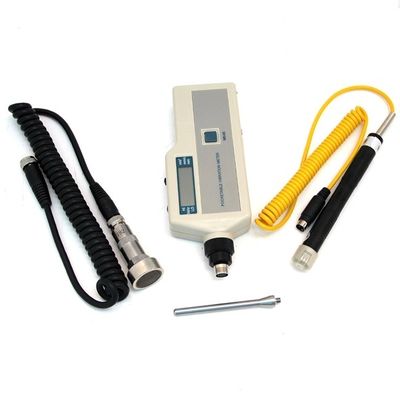

Large Image :  Pocket 9V Electronic Vibration Analyzer 10 HZ - 1KHz Temperature Instrument HG-6500 Series

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: HG-6500Series
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Standard export package
Delivery Time: 1-4working days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 500Pcs

Pocket 9V Electronic Vibration Analyzer 10 HZ - 1KHz Temperature Instrument HG-6500 Series

Description
Power: 9V Laminated Battery 1 Can Be Used Continuously 25 Hours Weight: 200g
Body Volume: 185mm × 68mm × 30mm Signal Output: AC 2V Peak (full Scale And The Load Is Greater Than 10K Ohms)
Display: LCD Display Three And A Half Name: TG-6500
High Light:

9V electronic vibration analyzer

,

10HZ electronic vibration analyzer

,

1KHZ electronic vibration analyzer

Pocket 9V Vibration Analyzer , 10HZ - 1KHz Temperature Instrument HG-6500 Series



Description:



HG-6500 Pocket vibration (temperature) instrument, mainly used in machinery and equipment vibration displacement, velocity (intensity) and the acceleration, temperature parameters of the measurement instrument in the bearing housing using the measured data, the control of international standard ISO2372 , Or the use of enterprises, the standard machine, you can determine the equipment (fans, pumps, compressors, motors, etc.) in which the current state (well, pay attention or dangerous, etc.)



Specifications:

Sensors: one rotary shear accelerometer Split charge amplifier built-in shear accelerometer

Range: Acceleration 0.1 ~ 199.9m/s2 (single peak) (5 or 10 ~ 1KHz; 1K ~ 10KHz) Speed of 0.1 ~ 199.9mm / s (RMS) (5 or 10 ~ 1KHz) Displacement of 0.001 ~ 1.999mm (peak) (5 or 10 ~ 1KHz) Temperature 0 ℃ ~ 400 ℃

Accuracy: 5% ± 2 vibration words Temperature 1% ± 1 word

Display: LCD display three and a half

Maintain the characteristics: measurement value is automatically maintained, automatic shutdown delay

Signal Output: AC 2V peak (full scale and the load is greater than 10K ohms)

Power: 9V laminated battery 1 can be used continuously 25 hours

Body volume: 185mm × 68mm × 30mm

Weight: 200g



Model Low frequency and temperature Function Frequency range
HG-6500AN Standard (I) Acceleration, Velocity, Displacement 10Hz ~ 10KHz
HG-6500AL Low frequency (I) Acceleration, Velocity, Displacement 5Hz ~ 10KHz
HG-6500ANC Vibration and temperature(I) Acceleration, Velocity, Displacement, Temperature Vibration and temperature(I)
HG-6500ALC Low frequency and temperature(I) Acceleration, Velocity, Displacement, Temperature 5Hz ~ 10KHz
HG-6500BN Standard Acceleration, Velocity, Displacement 10Hz ~ 10KHz
HG-6500BL Low frequency Acceleration, Velocity, Displacement 5Hz ~ 10KHz
HG-6500BNC Vibration and temperature Acceleration, Velocity, Displacement, Temperature 10Hz ~ 10KHz
HG-6500BLC Low frequency and temperature Acceleration, Velocity, Displacement, Temperature 5Hz ~ 10KHz



Pocket 9V Electronic Vibration Analyzer 10 HZ - 1KHz Temperature Instrument HG-6500 Series 0
