Dual AC DC Ndt Equipment Handheld LED UV Lamp DG4020

Large Image : Dual AC DC Ndt Equipment Handheld LED UV Lamp DG4020

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	ISO, CE, GOST
Model Number:	DG4020

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Standard export package
Delivery Time:	1-4working days
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	500Pcs

Contact Now

Dual AC DC Ndt Equipment Handheld LED UV Lamp DG4020

Description

Project:	Parameter / Mode	Style:	Handheld
UV(Light)-FLUX Indoor Temperature 25℃:	6000uW/cm2	White Light Content:	≤3LUX
Flux Error:	0-40℃ ±10%	Light Distribution Characteristics:	Central Light Distribution
Power Supply:	AC100- 240V,50/60Hz	Power:	UV LED-12VA
Highlight:	handheld ndt equipment , ac dc ndt equipment , huatec ndt equipment

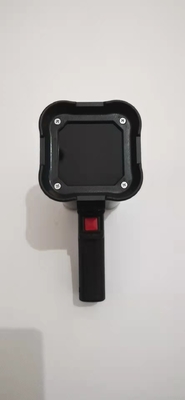

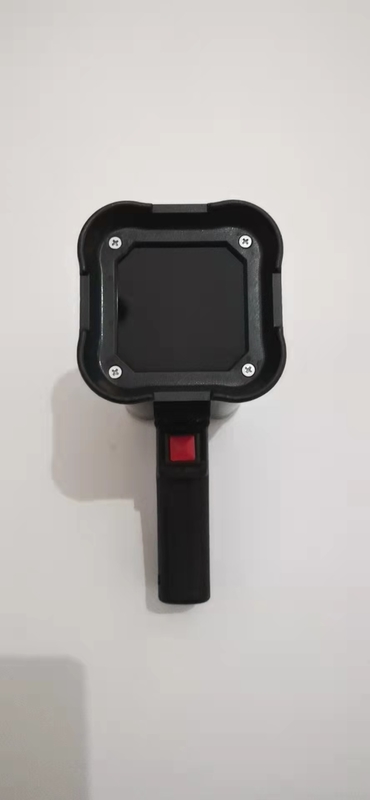

HUATEC Dual AC&DC operation handheld LED-UV Lamp DG4020

Feature:

1. Strictly comply with ASTM E3022

2. UV-B content is 0

3. Battery life of 2-3 hours

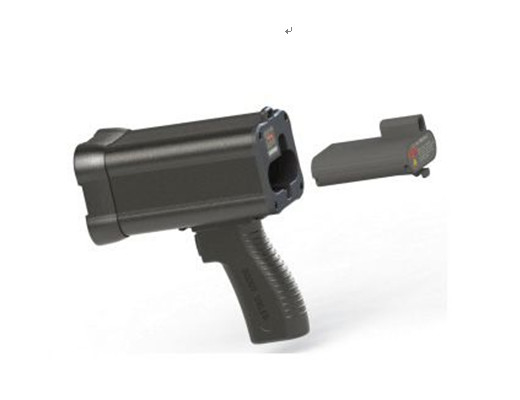

4. Quick Battery Replacement

5. Only 560g of battery is included

6. Temperature rise of external surface under continuous operation < 8K (8℃)

7. It has colour filter glass, and the white light content is less than 20LUX

8. Can work with AC directly and also with DC battery

Parameters:

Project	Parameter / mode
Style	Handheld
UV(Light)-FLUX Indoor temperature 25℃	6000uW/cm2
White light content	≤3LUX
Irradiation area at depth of 380mm: (≥1000uw/cm²)	Φ300mm
Flux error	0-40℃ ±10%
Light distribution characteristics	Central light distribution
Power Supply	AC100- 240V,50/60Hz
Power	UV LED-12VA
Wavelength	Room temperature 25℃, 365nm±3nm (UVA)

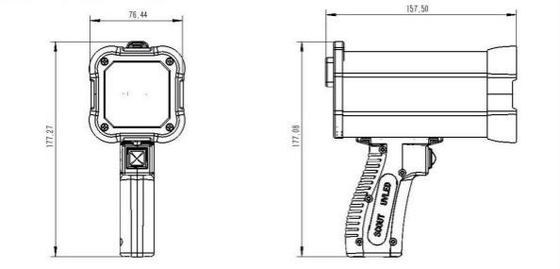

Overall dimension	157. 5mm (W) 76mm (D) 177mm (H)
Weight	560g including battery
Battery capacity	2200mA/H 12.6V
Charging time	2-3H
Battery life (cumulative time)	UV LED 2-3H
