High End Picture Led Film Viewer Hfv-40a Non Destructive Testing Equipment

High End Picture Led Film Viewer Hfv-40a Non Destructive Testing Equipment
High End Picture Led Film Viewer Hfv-40a Non Destructive Testing Equipment High End Picture Led Film Viewer Hfv-40a Non Destructive Testing Equipment High End Picture Led Film Viewer Hfv-40a Non Destructive Testing Equipment

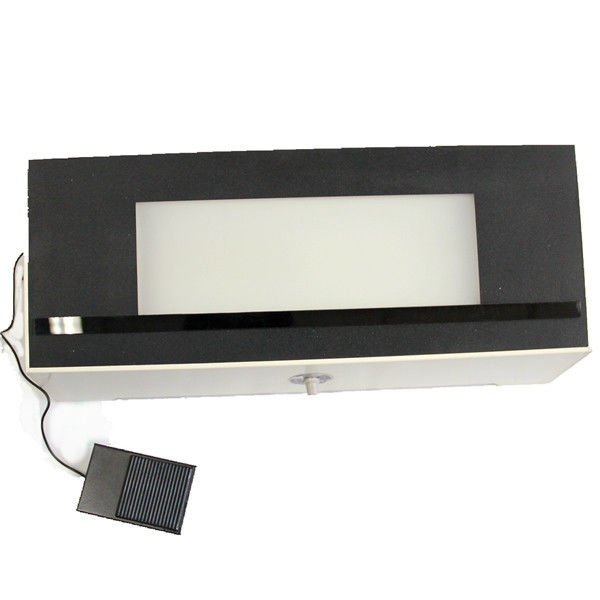

Large Image :  High End Picture Led Film Viewer Hfv-40a Non Destructive Testing Equipment

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: HFV-40A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Standard export package
Delivery Time: 1-4working days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 500Pcs

High End Picture Led Film Viewer Hfv-40a Non Destructive Testing Equipment

Description
Dimensions(W×H×D) Frame: 485×150×190mm Viewing Window Size: 270×60mm(Adjustable)
Lamp Source: LED Weight: 3Kg
Brightness: 120000cd/m2(Adjustable) Standards: NB/T47013-2015、DL/T821-2002、GB3323-2005
High Light:

film viewer non destructive testing equipment

,

hfv-40a non destructive testing equipment

,

non destructive testing led film viewer

High-end picture viewer LED Film viewer HFV-40A

Features:

The film viewing lamp adopts ultra-high color temperature LED light tube, the color temperature of the light source is as high as 6000K, the light color is pure white light effect, which can play a very good compensation effect on the yellow film base, such as Kodak, Fuji, AGFA and other films, effectively eliminate the yellow visual error, enhance the film viewing precision and definition.

The main frame of advanced aluminum alloy is firm, beautiful and durable.



Technical parameters:

  1. Dimensions(W×H×D) Frame:485×150×190mm
  2. Viewing window size:270×60mm(Adjustable)
  3. Lamp source: LED
  4. Weight: 3Kg
  5. Brightness:120000cd/m2(Adjustable)
  6. Standards: NB/T47013-2015,DL/T821-2002,GB3323-2005
  7. Start way:Foot switch
  8. LED color temperature:6000K
  9. Power supply: 220VAC±20% 50~60Hz
  10. Power:80W
  11. Cooling way: air







Standard accessories:

Film viewer

Power supply cable

Foot switch

Instruction manual

Calibration certificate



Optional accessories:

Slipping magnifier



Note:

1. In order to extend the service life of LED, the power supply voltage should meet the requirements, and the viewing time should not be too long.

2, transportation and moving should avoid violent collision.

3. Avoid moisture and chemical gases invading the lamp for a long time, causing corrosion and electricity leakage
