Hap-1000 Automatic Grinding Polishing Machine All In One

Hap-1000 Automatic Grinding Polishing Machine All In One
Hap-1000 Automatic Grinding Polishing Machine All In One Hap-1000 Automatic Grinding Polishing Machine All In One

Large Image :  Hap-1000 Automatic Grinding Polishing Machine All In One

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: HPA-1000
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Standard export package
Delivery Time: 1-4working days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 500Pcs

Hap-1000 Automatic Grinding Polishing Machine All In One

Description
Selling Units: Single Item Single Package Size: 35X27X12 Cm
Single Gross Weight: 74.00kg Air Pressure: 0.5-0.8MPa
Electromotor: 220V,50/60Hz,550W Speed: 0-1000n/min, (customized)
High Light:

hap 1000 automatic grinding polishing machine

,

550w automatic grinding polishing machine

,

huatec automatic grinding polishing machine

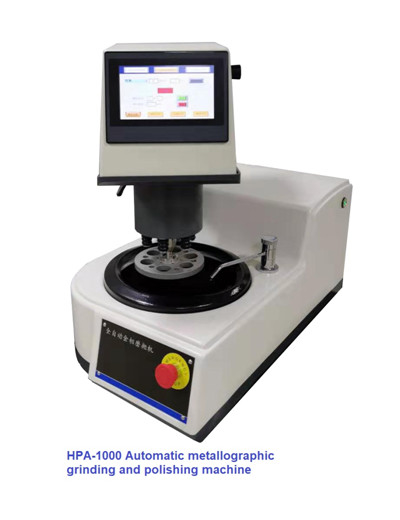

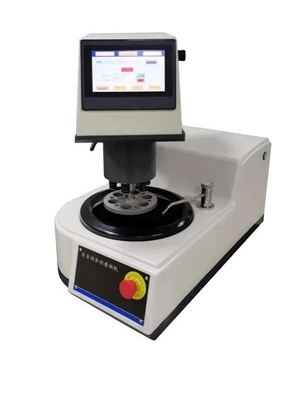

HAP-1000 Automatic Grinding-Polishing Machine

Product Feature

Six pieces Φ30mm samples can be polished simultaneous

Single point pneumatic holding, no demo gripper

Grinding and polishing procedure (rough and fine) are continuously done, no machine transition

Frequency Converter control, three-level constant speed mode and variable Speed mode:

1.Three level constant speeds: customer can define three common speeds for pre-grinding, grinding and polishing

2.Variable speed mode: grinding speed 0-1000n/min

3.Eight sections programmable control, automatically stop, convenient for customer getting metallographic demos

Beautiful outlook and good quality



Technical Specifications

Disc diameter: standard 250mm(optional 230mm,200mm)

Speed: 0-1000n/min, (customized)

Grinding head speed: 50-200n/min

Air pressure:0.5-0.8MPa

Electromotor: 220V,50/60Hz,550W

Overall Dimension : 710x 430 x 640 mm

Net weight: 74kg



Standard Accessory

Name Quantity Name Quantity
Magnetic working plate(254mm) 1piece Anti-sticky disc(254mm) 1peice
one side sticky grinding paper(250mm) 320#,1000# 10 pieces/each One side sticky polishing cloth(250mm), velvet fabric 1peice
diamond polishing liquid,6micron,200ml



1bottle

Lubrication cooling liquid,blue,200ml 1bottle
waterproof ring 1 piece input-water pipe adapter 1 piece
input-water pipe 1 piece power cable 1peice
output-water pipe 1 piece machine certification 1 set
machine manual 1 set packing list 1 set
Machine Guarantee card 1 set



Optional Accessory

metallographic grinding paper GSC250A

l 100peices /package

l material: black carborundum

l sand size:P80# 120# 180# 320# 600# 800# 1000# 1200#1500# 2000#

l size:Φ250mm

l waterproof and one side sticky, can be attached on the grinding plate directly

Anti-sticky disc MAGNOMET

l anti-sticky disc 5peices/box

l diameter:Φ254mm

l Surface coating with Special anti-sticky layer, can attach the sticky paper and polishing cloth directly, and easily replace without sticky mark.

l Can be reuse

l Can be replace the BUEHLER and STRUERS same production

Polishing cloth FT250A

l polish cloth 10peices/package

l velvet fabric(long floss) / canvas(short floss)/ Woolen cloth(short floss)/ silk cloth(no floss)

l Φ250mm

l one side sticky, can be attached directly on the grinding plate

Diamond grinding and polishing liquid DSU

l Diamond grinding and polishing liquid,500ml/bottle

l Diamond suspending in the liquid, can be dropped automatically or watering pot, Uniformly distribution

l size:0.25, 0.5, 1, 1.5, 2.5, 3, 3.5, 5, 6, 7, 9, 10, 14, 15, 20, 28, 40micron, for different material



Packaging and Shipping

Packaging: Standard export package, wooden case

Delivery: 3-15 days upon receipt of payment,depending on order quantity

Shipping: Can be shipped by sea, air or other means per request.



Our Services:

Warranty: One year

After sales service and maintenance: Lifelong
