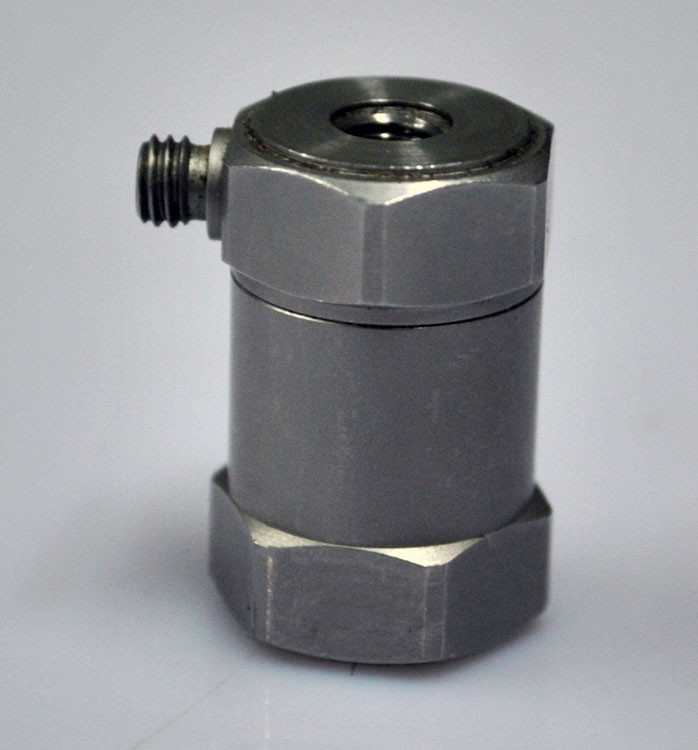

40kHz Non Destructive Testing Equipment HL14-SA Reference Accelerometer

40kHz Non Destructive Testing Equipment HL14-SA Reference Accelerometer
40kHz Non Destructive Testing Equipment HL14-SA Reference Accelerometer

Large Image :  40kHz Non Destructive Testing Equipment HL14-SA Reference Accelerometer

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO CE GOST
Model Number: HL14-SA
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: in High quality carton
Delivery Time: 5-10 days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 100 sets per month

40kHz Non Destructive Testing Equipment HL14-SA Reference Accelerometer

Description
Product Name: Reference Accelerometer Model: HL14-SA
Sensitivity(±10%): 1.2 PC/g Measuring Range: ±1000g
Natural Frequency: ≥40kHz Dimensions (mm): Φ21×25.4
High Light:

40khz non destructive testing equipment

,

reference accelerometer non destructive testing equipment

,

non destructive testing reference accelerometer

HL14-SA reference accelerometer

Characteristics: Quartz accuracy and stability rugged design, low base strain sensitivity, low mass loading sensitivity,

Applications: Transfer standard for back-to-back calibration of accelerometer field calibrations.

Model HL14-SA
Sensitivity(±10%) 1.2 pC/g
Measuring Range ±1000g
Frequency Range(±3 dB) 1-8000Hz
Natural Frequency ≥40kHz
Transverse Sensitivity ≤3%
Operational Temperature –74 to +200℃
Insulation resistance ≥1010Ω
Sensitive unit Ceramic, shear
Capacitance About 360 pF
Dimensions (mm) Φ21×25.4
Transient temperature 50mg/℃(0.3Hz)
Sensitivity of magnetic 1.5g/T
Base strain 0.2mg/με
Weight 38 g
Mounting 2-M5/10-32
Output M5/10-32
Shell Stainless steel
Certificate 1
M5/10-32 stud, Clip 1
Double M5 cable 1 (2 meters)





40kHz Non Destructive Testing Equipment HL14-SA Reference Accelerometer 040kHz Non Destructive Testing Equipment HL14-SA Reference Accelerometer 140kHz Non Destructive Testing Equipment HL14-SA Reference Accelerometer 2
