Product Details:
|
| Measuring Range: | 0.75mm~300.0mm (0.03inch~11.8 Inch) | Sound Velocity: | 1000m/s~9999m/s (0.039~0.394in/µs |
|---|---|---|---|
| Accuracy: | ±(0.5%Thickness +0.02)mm, Depends On Materials And Conditions | Units: | Metric/Imperial Unit Seletable |

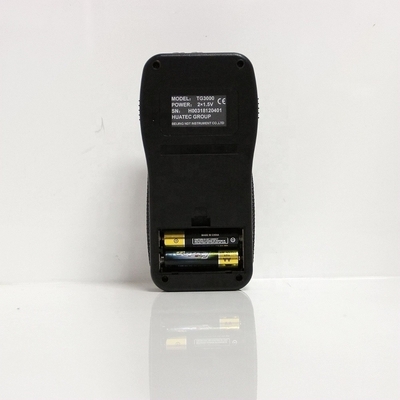

| Communication: | RS232 Serial Port | Power Source: | 2pcs 1.5V AA Size, Batteries.100 Hours Typical Operating Time(LED Backlight Off). |

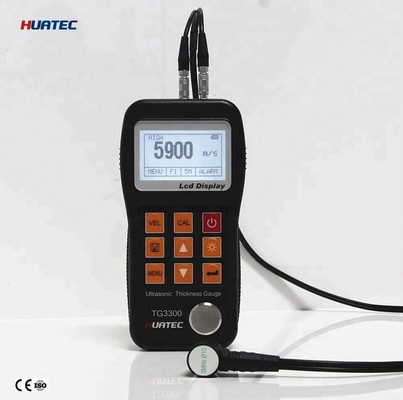

| Outline Dimensions: | 150mm×74mm×32mm | Display: | 128×64 LCD With LED Backlight. |
| MOQ: | 1PC | Warranty: | 12 Months |
| High Light: | LCD Display ultrasonic wall thickness gauge,Portable ultrasonic wall thickness gauge,LCD Display portable ultrasonic thickness gauge |
||
1.Capable of performing measurements on a wide range of material, including metals,plastic,ceramics,composites,epoxies,glass and other ultrasonic wave well-conductive materials.
2.Transducer models are available for special application,including for coarse grain material and high temperature applications.
3.Probe-Zero function,Sound-Veloctiy-Calibration function.
4.Two-Point Calibration function.
5.Coupling status Indicator showing the coupling status.
6.Battery information indicates the rest capacity of the battery.
7.Auto sleep and auto power off function to conserve battery life.
8.Optional software to process the memory data on the PC.
9.Optional thermal mini-printer to print the measured data via RS232 port.
Specifications
0.1mm (more than 99.99mm)
5MHz probe: F20mm´3.0mm (F0.8´ 0.12 inch)
10MHz probe: F20mm´3.0mm (F0.6´ 0.08 inch)

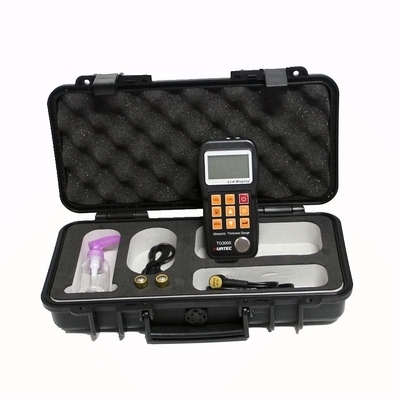

Configuration
| No | Item | Quantity | Note | |
|
Standard Configuration |
1 | Main body | 1 | |
| 2 | Transducer | 1 | Model: N05 | |
| 3 | Couplant | 1 | ||

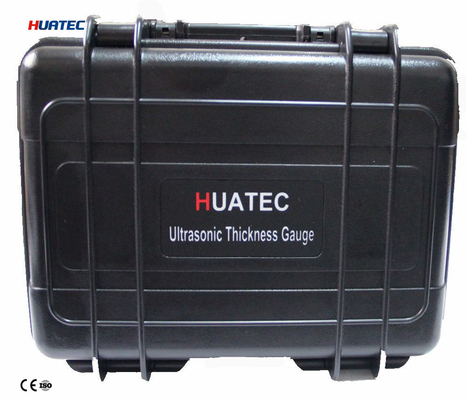

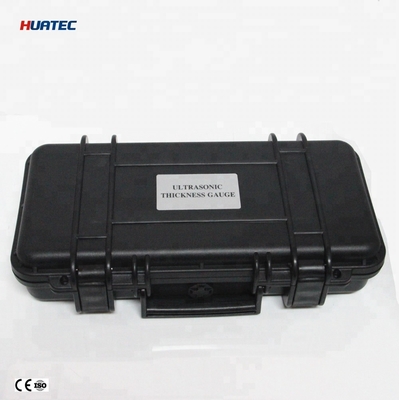

| 4 | Instrument Case | 1 | ||
| 5 | Operating Manual | 1 | ||
| 6 | Alkaline battery | 2 | AA size | |
|
Optional Configuration |
7 | Transducer: N02 | Appendix A | |
| 8 | Transducer: N07 | |||
| 9 | Transducer: HT5 | |||
| 10 | Mini thermal printer | 1 | ||
| 11 | Print cable | 1 | ||
| 12 | DataPro Software | 1 | ||
| 13 | Communication Cable | 1 |
Probe optional (Appendix A):
| Model | Freq. MHz | Diam. Min. | Measuring range | Lower limit | Description |
| N02 | 2 | 14 | 3.0mm-300.0mm (in steel) | 20 | For thick, highly attenuating, or highly scattering materials |
| N05 | 5 | 10 | 1.2mm-230.0mm (in steel) | ￠20mm×3.0mm | Normal measurement |
| N05/90° | 5 | 10 | 1.2mm-230.0mm (in steel) | ￠20mm×3.0mm | Normal measurement |
| N07 | 7 | 6 | 0.75mm-80.0mm (in steel) | ￠15mm×2.0mm | For thin pipe or small curvature pipe wall thickness measurement |
| HT5 | 5 | 2 | 3mm-200mm (in steel) | 30 | For high temperature measurement (up to 300℃) |
