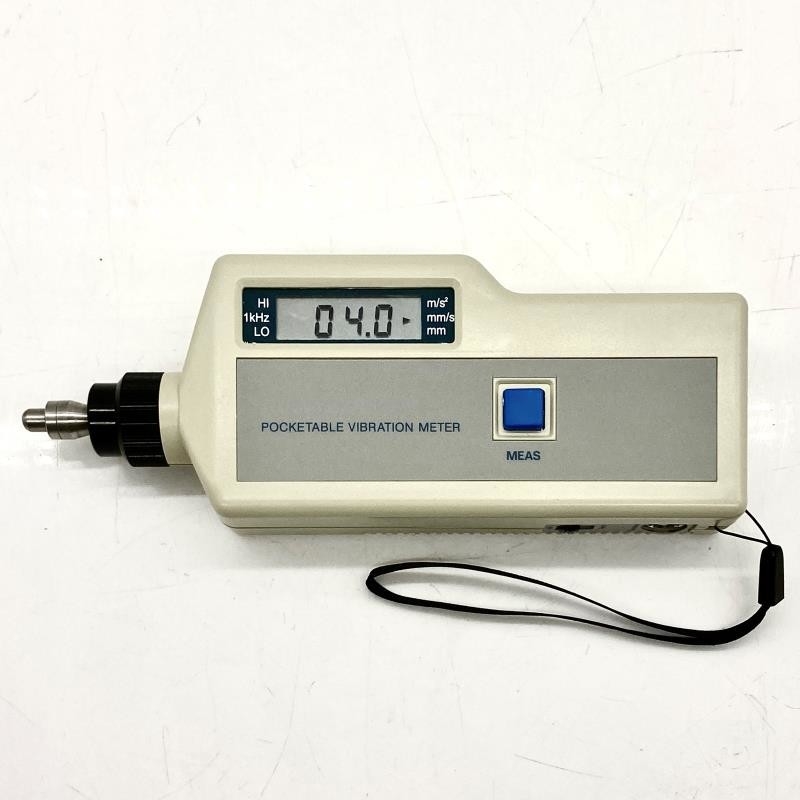

HG-6500 Series LED Portable Vibration Tester Pocket Size Handheld

HG-6500 Series Pocket-size Vibration Tester Pocket Vibration (Temperature) Meter

Features
●New technology design, low power consumption.
●Fully produced as international standard ISO2372, can directly determine the current state (well, pay
attention or dangerous, etc.) of the machinery equipment
●High reliability rotary shear acceleration sensor has much better performance than compression sensor

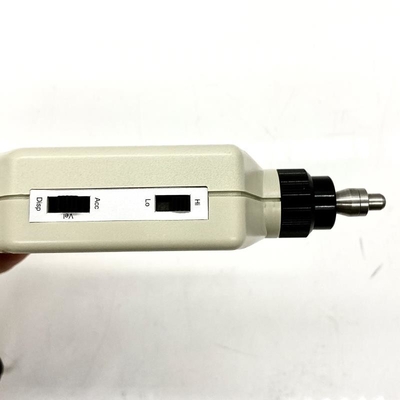

●High and low frequency model, easy to recognize machinery fault
●Equip with signal input function, can test temperature with special temp sensor
●Equip with signal output function, can be connected with earphone, oscilloscope and vibration recording
meter etc.
●In-built vibration sensor and separate sensor optional
●Can test vibration and temperature for all machinery equipment (fans, pumps, compressors, motors, etc.)
●The measurement value is automatically maintained

● Automatic shut down

Specifications

Sensors:Rotary shear accelerometer
              Split charge amplifier built-in shear accelerometer

Range: Acceleration 0.1~199. 9m/s2 (single peak) (5 or 10~1KHz; 1K~10KHz)

             Speed of0.1 ~ 199.9mm/s (RMS)(5 or 10~1KHz)

             Displacement of 0.001 ~1.999mm (peak) (5 or 10~1KHz)

             Temperature 0°C~400°C .

Accuracy: 5%土2 vibration words Temperature 1%士1 word

Display: LCD display 31/2 digits

Signal Output: AC 2V peak (full scale and the load is greater than 10K ohms)

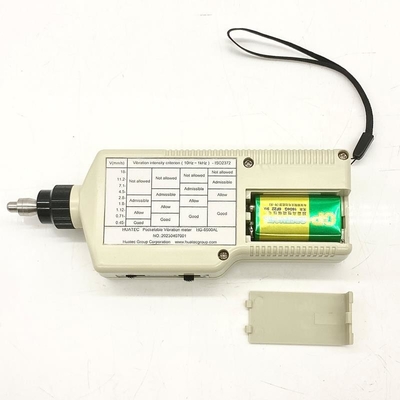

Power: 9V laminated battery, can be used continuously 25 hours

Body volume: 185mm x 68mm x 30mm

Weight: 200g
