2.2kg Non Destructive Testing Equipment Detect Range 0.05mm~10mm

Large Image : 2.2kg Non Destructive Testing Equipment Detect Range 0.05mm~10mm

Product Details:

Place of Origin:	China
Brand Name:	2023 new HUATEC HD-101 Porosity Holiday Detectors
Certification:	ISO,ASTM
Model Number:	HD-101

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Paper box
Delivery Time:	5 DAY
Supply Ability:	500

Contact Now

2.2kg Non Destructive Testing Equipment Detect Range 0.05mm~10mm

Description

Type:	Non Destructive Testing Equipment	Detecting Range:	0.05mm~10mm
DC Power Supply:	12V	Output Voltage:	0.6KV-30KV
Weight:	2.2kg	LCD Display:	Support
Highlight:	compact non destructive testing equipment , non destructive testing equipment china , china destructive testing equipment

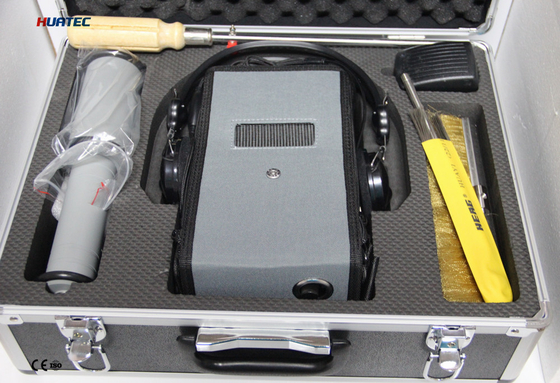

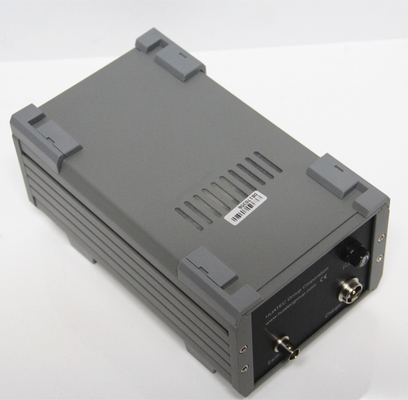

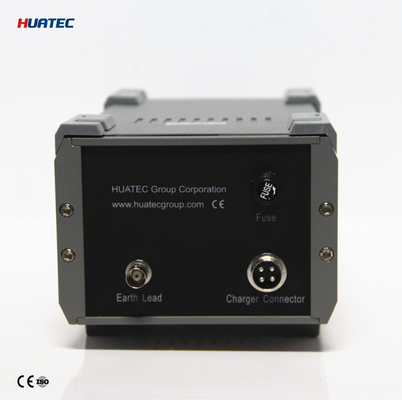

HUATEC HD-101 Porosity Holiday Detectors

HD-101/102 Porosity Detectors are employed in the non-destructivedetection and location of pinholes, bare spots or thin points in protectivecoatings applies for corrosion protection over metal and concrete(conductive)surfaces.
With corrosion an extremely costly and disruptive worldwide problem,preventative determination becomes essential.For newly constructed tanks, pipelines and other installations, wherecorrosion prevention coatings have had to be applies, specifications willnormally callfor a specific coating to a specific thickness. By using a ourDetector to verify the competency of the sealing coatings, the contractorcan be assures that his coatings responsibility has been met. In terms ofcost effectiveness, with the low capital and operating costs of theDetector, the contractor will have some protection from claims at a very low price.

Technical Parameters:

Property	Value
Non-Destructive Testing Apparatus	Non Destructive Testing Equipment
Detecting range	0.05mm~10mm
DC power supply	12V
Output voltage	0.6KV-30KV
LCD display	Support
Type	Non Destructive Testing Equipment
Weight	2.2kg

2.2kg Non Destructive Testing Equipment Detect Range 0.05mm~10mm 0
