Srt5060 Surface Tester 7 Parameters Ra Rz Rq Rt Rp Rv Rc Handheld

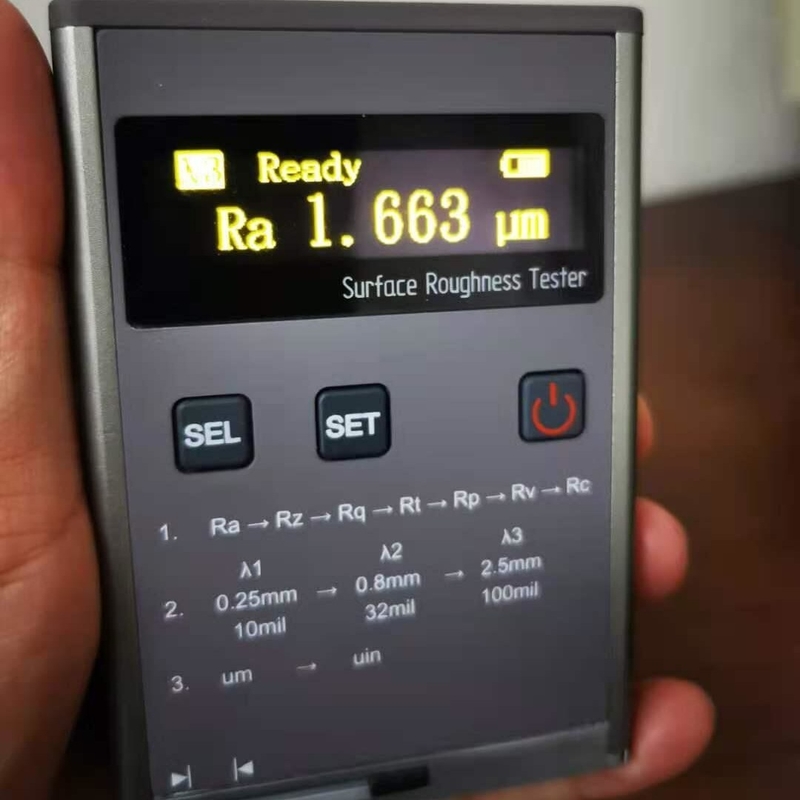

Large Image : Srt5060 Surface Tester 7 Parameters Ra Rz Rq Rt Rp Rv Rc Handheld

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	SRT5060

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	USD565-USD640/SET
Packaging Details:	Black hard plastic box
Delivery Time:	7-10 working days after receipt of your payment
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	10 Sets/Month

Contact Now

Srt5060 Surface Tester 7 Parameters Ra Rz Rq Rt Rp Rv Rc Handheld

Description

Parameters:	Ra, Rz, Rq, Rt, Rp, Rv, Rc	Range:	±80um
Display Accuracy:	±10%	Indication Variability:	≤6%
Resolution:	0.01um	Measuring Force:	4mN(0.4gf)
Longitudinal Radius Of Guide Head:	45mm	Max. Driving Length:	6mm
Highlight:	non destructive testing surface tester , 7 parameters surface tester , non destructive testing surface roughness gauge

SRT5060 7 parameters Ra, Rz , Rq, Rt, Rp, Rv, Rc Handheld Surface Roughness Tester

Features

7 parameters Ra, Rz , Rq, Rt, Rp, Rv, Rc
High precision inductive sensor
GAUSS filter
Comply with ISO4287
256X64 OLED display
Built in lithium ion battery and charging control circuit, high capacity, no memory effect
Continuous working time more than 15 hours
Aluminum mold design makes durable and better anti-electromagnetic interference ability

Specification

Parameters		Ra, Rz, Rq, Rt, Rp, Rv, Rc
Range		±80um
Display Accuracy		±10%
Indication variability		≤6%
Resolution		0.01um
Probe features	Type	Inductive
	Stylus radius/angle	5um
	Stylus material	Diamond
Measuring force		4mN(0.4gf)
Measuring unit		Um/uin
Sensor angle		90 degree
Longitudinal radius of guide head		45mm
Max. driving length		6mm
Traverse speed		λ1: cut off =0.25mm, Vt=0.135mm/s λ2:cut off =0.8mm, Vt=0.5mm/s λ3: cut off =2.5mm, Vt=1mm/s
Power		Built-in Rechargeable battery

Standard Delivery

Main unit
Calibration block
AD/DC adapter and data line
Testing support board
Carrying case
English instruction manual
Calibration certificate
Warranty card
Packing list
