Product Details:
|
| Parameters: | Ra, Rz, Rq, Rt | Range: | Ra, Rq 0.05-20um Rz ,Rt 0.1-50um |
|---|---|---|---|
| Accuracy: | ±10% | Resolution: | 0.01um |
| Measuring Force: | 5mN | Cut Off: | 0.25mm/0.8mm Auto |
| Traverse Speed: | 0.75mm/s | Assessment Length: | 4 X Lamda |
| Power: | Built-in Rechargeable Battery | ||
| High Light: | touch screen roughness tester,non destructive testing roughness tester,non destructive testing surface roughness tester |
||

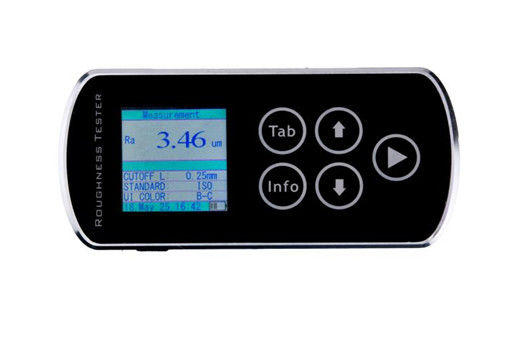

SRT-5050 Touch screen Pocket Roughness Tester
Features
Parameter
| Parameters | Ra, Rz, Rq, Rt | |
| Range | Ra, Rq 0.05-20um | |
| Rz ,Rt 0.1-50um | ||
| Accuracy | ±10% | |
| Resolution | 0.01um | |
|
Probe
|
Type | Piezoelectric |
| Stylus radius/angle | 10um/90° | |
| Stylus material | Diamond | |
| Measuring Force | 5mN | |
| Measuring Unit | Um/uin | |
| Cut off | 0.25mm/0.8mm Auto | |
| Assessment Length | 4 x Lamda | |
| Traverse speed | 0.75mm/s | |
| Power | Built-in Rechargeable battery | |
| Instrument Dimension | 90mmx42mmx54mm | |
| Weight | 210g | |
| Packing Dimension | 200mmx130mmx80mm | |
| Total Weight | 530g | |
Standard Delivery
