Product Details:
|
| Product Name: | Vibration Meter | Model: | HG-6380 |
|---|---|---|---|
| Testing Range (Metric): | 0.1 ~ 205.6 M/s2(peak) | Frequency Resolution: | 0.25Hz |
| High Light: | real time handheld vibration meter,non destructive testing handheld vibration meter,real time portable vibration meter |
||
For Industrial Fields Real-Time Vibrationmeter Spectral Chart Portable Vibration Meter

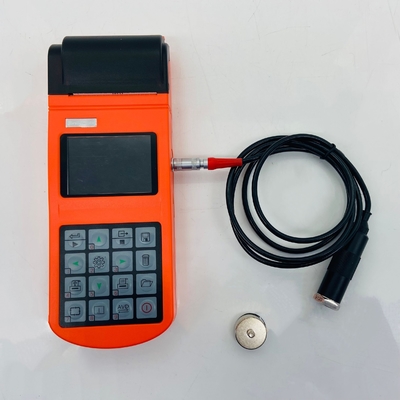

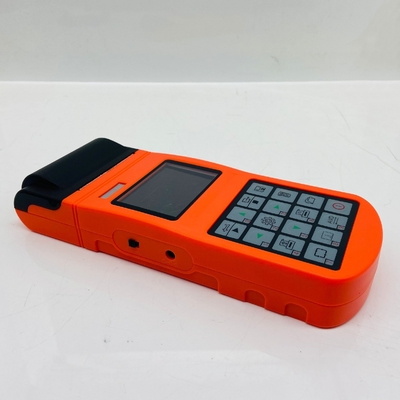

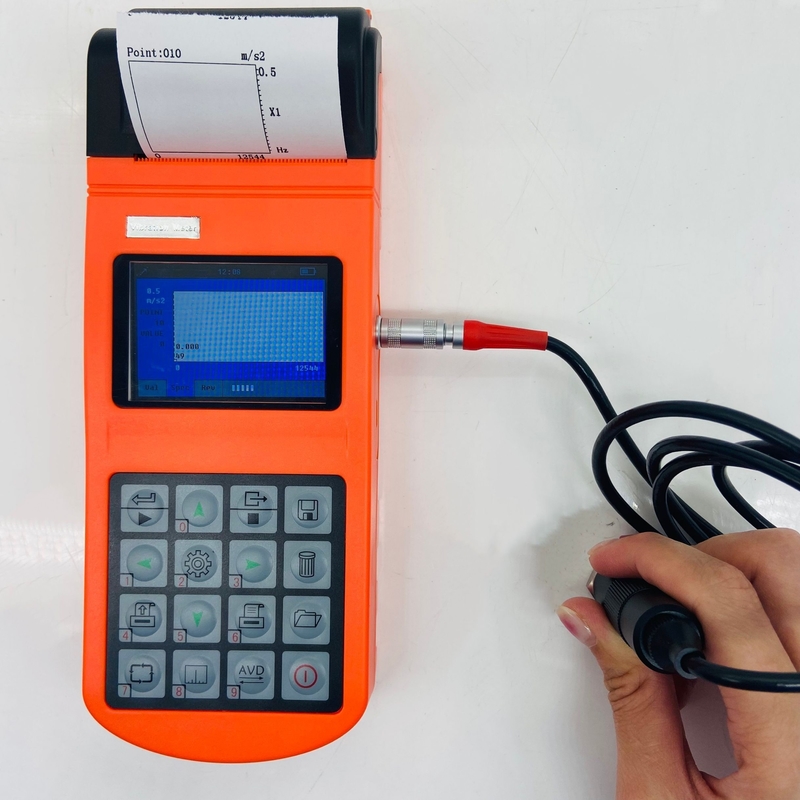

HG-6380 uses piezoelectric acceleration transducer to convert vibration signal into electric signal. Results including RMS of velocity values, peak-peak value of displacement, peak values of acceleration or real-time spectral charts are displayed or printed out. It can not only measure the three parameters, but also rotational speed. The vibration meter is designed to test conventional vibration, especially the vibration test in rotating and reciprocating machines. It can test the acceleration, velocity, and displacement of vibration as well as rev (or inherent frequency), also perform simple failure diagnosis. The technical specifications of HG-6380 comply with the requirements of GB 13823.3. HG-6380 is widely used in machinery, power, metallurgy, automobile and other industrial fields.
| Model name | HG-6380 |
| Testing range (Metric) | Acce: 0.1~205.6 m/s-(peak) Velo: 0.1 ~ 400.0 mm/s(RMS) Disp: 0.001~9.0 mm(peak-peak) |
| Testing range (Imperial) | Acce: 0.01~22.00 g(peak) Velo: 0.01~ 15.75 in/s(RMS) Disp: 0.1~ 356.3 mil(peak-peak) |
| Freq range | Acceleration: 10Hz~200Hz, 10Hz~500Hz,10Hz~1KHz, 10Hz- 10KHz Velocity: : 10Hz~1KHz |
| Displacement: 10Hz~500Hz | |
| Frequency resolution | 0.25Hz |
| Data memory | 100 × 80 pieces of data and 100 spectrums |
| Software | Yes |
| Temp | o℃~40℃ |
| Tolerance | ±5% |
| Speed measuring range | 30~300000 rpm corresponding to 0.5~5000Hz |
| Measuring distance | 0.15~1m |
| Display | TFT 320×200 pixels with RGB |
| Data interface | USB |
| Overall dimensions | 212×80×35 |
| Printer | Integrated thermal |
| Weight | 320g |
| Battery | Rechargeable Li battery,1500mAh |
| Continuous working time | About 50h |
PC software sample
Standard delivery
Main unit. 1pc
Power Adapters
(input:220V/50Hz, output:9V/1000mA) 1pc
Power Adapters
(input:110V/50Hz,output:9V/1000mA) 1pc
Piezoelectric sensors 1pc
Magnetic seat (with 2 bolts) 1pc
Manual 1pc
Package case 1pc
Optional accessories
Speed transducer (Lacer)
PC Software
Communication cable 1pc
Probe
