10hz To 1khz Portable Viration Meter Ndt Instrument

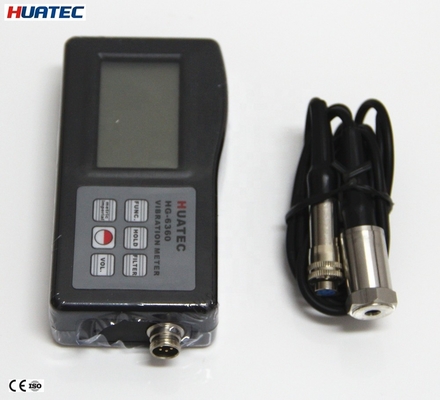

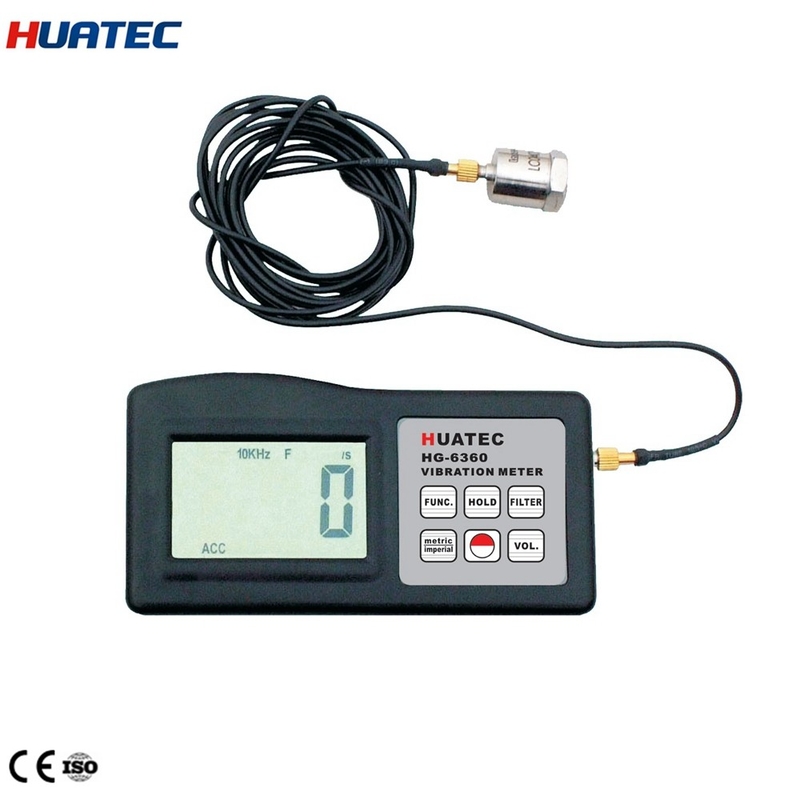

Large Image : 10hz To 1khz Portable Viration Meter Ndt Instrument

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	ISO，CE，Gost
Model Number:	HG-6360

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	in High quality carton
Delivery Time:	3-7 days
Payment Terms:	L/C, T/T, Western Union,Paypal
Supply Ability:	100 sets per month

Contact Now

10hz To 1khz Portable Viration Meter Ndt Instrument

Description

Product Name:

Portable Viration Meter

Model:

HG-6360

Velocity:

10Hz To 1KHz 0.1-400mm/s

Accuracy:

＜5﹪

Highlight:

1khz portable vibration meter

portable vibration meter non destructive testing

non destructive testing digital vibration meter

NDT Instrument 10Hz to 1KHz Portable Vibration Meter

Specifications:
Acceleration 10Hz to 1KHz 10Hz to 10KHz 0.1-200m/s
Velocity 10Hz to 1KHz 0.1-400mm/s
Displacement 10Hz to 1KHz] 0.001-4.0mm
Accuracy:＜5﹪
Auto power off
RPM (revolution): 5-100000r/min
Frequency:0. 1 to 10KHz
Metric/imperial conversion
With RS232C interface
Max hold
Operating conditions:0-+45℃(32℉-104℉),≤90%RH
Power supply: 4x1.5V AAA (UM-4) battery
Battery indicator: low battery indicator
Dimensions: 124x62x30mm
Weight: 120g(not including battery)

Standard Delivery:
Main Unit 1

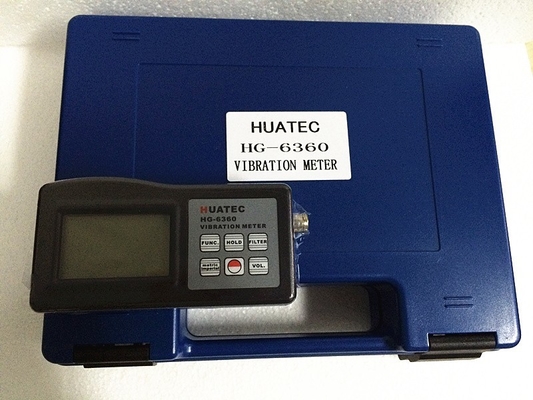

Carrying Case 1
Powerful Rare Earth Magnet 1
Piezoelectricity Transducer 1
Instruction Manual 1

Optional Accessories:
Cable and Software for RS-232C
Headphone as electronic stethoscope

10hz To 1khz Portable Viration Meter Ndt Instrument 0

10hz To 1khz Portable Viration Meter Ndt Instrument 1

10hz To 1khz Portable Viration Meter Ndt Instrument 2
